214325 17 Revision A

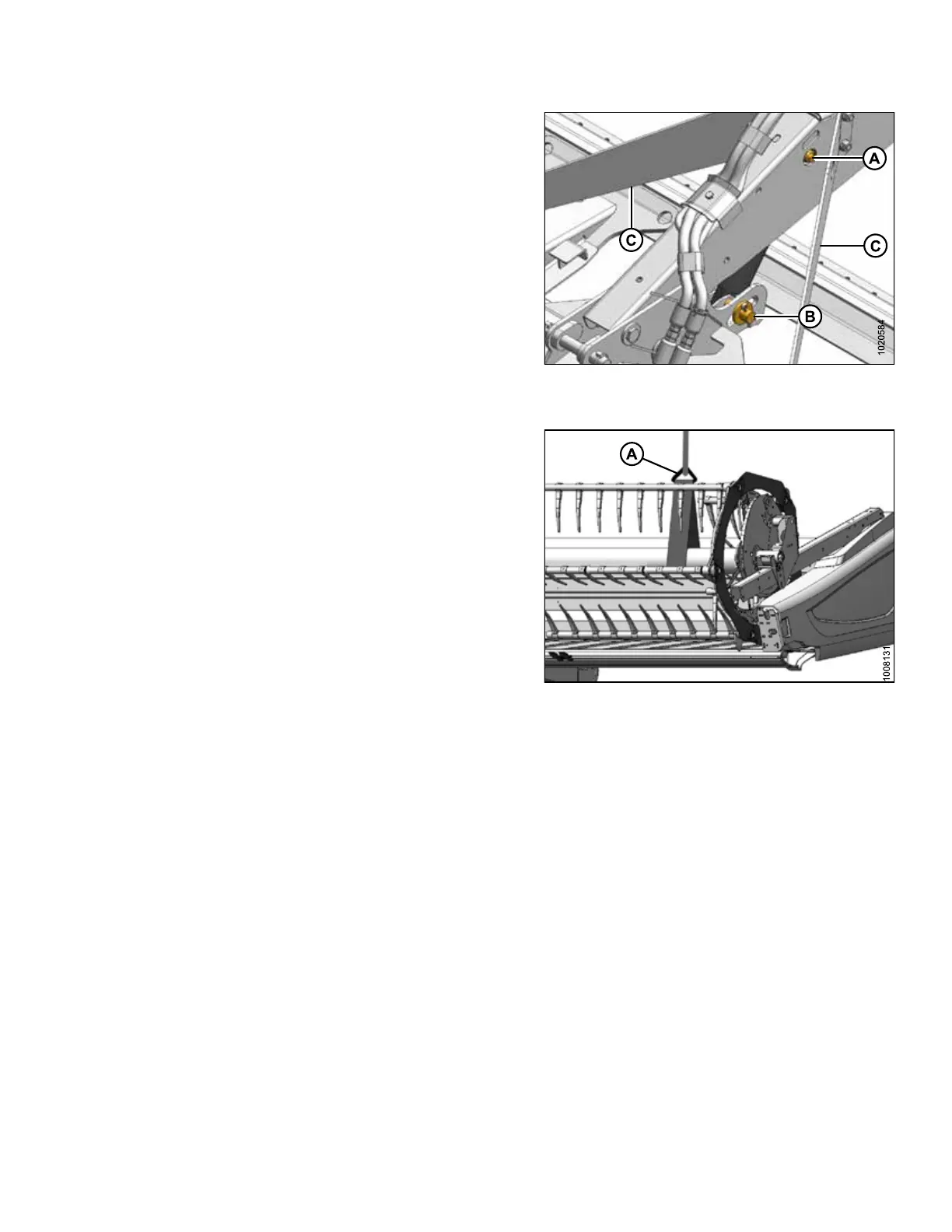

Figure 3.5: Reel Arm Braces
8. Lift reel to gain access to center lift cylinder.
9. Remove shipping wire and banding from reel center lift
cylinder. Remove socket head bolt and nut from
cylinder rod.
10. Lift reel so that hole in lift cylinder rod lines up with
mounting hole (A) in reel arm.
11. Attach rod end of cylinder to reel arm with socket head
bolt and nut (A). Access hardware through holes in reel
arm braces (C).
12. Torque bolt and nut (A) to 54–61 Nm (40–45 lbf·ft).
13. Remove pin at barrel end of cylinder.
14. Adjust reel height so pin (B) can be installed at barrel
end of cylinder and mounting structure.
Figure 3.6: Left End Reel Lift
15. Reposition sling (A) around reel tube near opposite
outboard reel arm.
16. Remove shipping wire and banding from reel lift
cylinder.
ASSEMBLING HEADER AND ADAPTER
