214325 18 Revision A

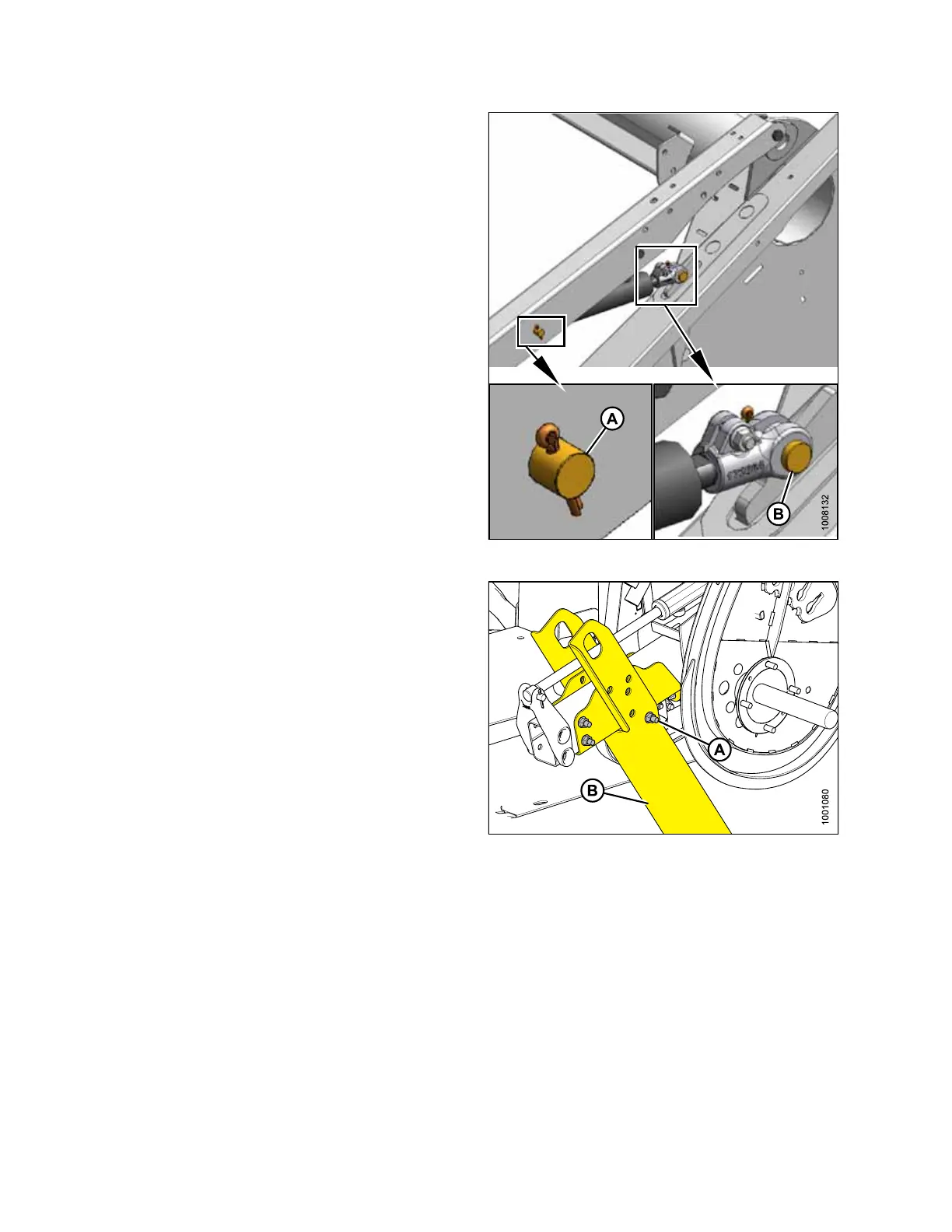

Figure 3.7: Reel Left Arm
17. Lift reel and remove pins from endsheet and reel arm.
18. Align reel lift cylinder mounting holes until they line up
with lug on endsheet and hole in reel arm.
19. Secure cylinder to endsheet and reel arm with clevis
pins (A) and (B) as shown.
• Insert cotter pin into clevis pin (A) at OUTBOARD
side of reel arm
• Insert cotter pin into clevis pin (B) at INBOARD side
of endsheet
Figure 3.8: Reel Center Arm Shipping Support
20. Remove remaining bolt (A), disengage center reel arm
shipping support (B) from cutterbar, and remove
shipping support.
ASSEMBLING HEADER AND ADAPTER
