214325 19 Revision A

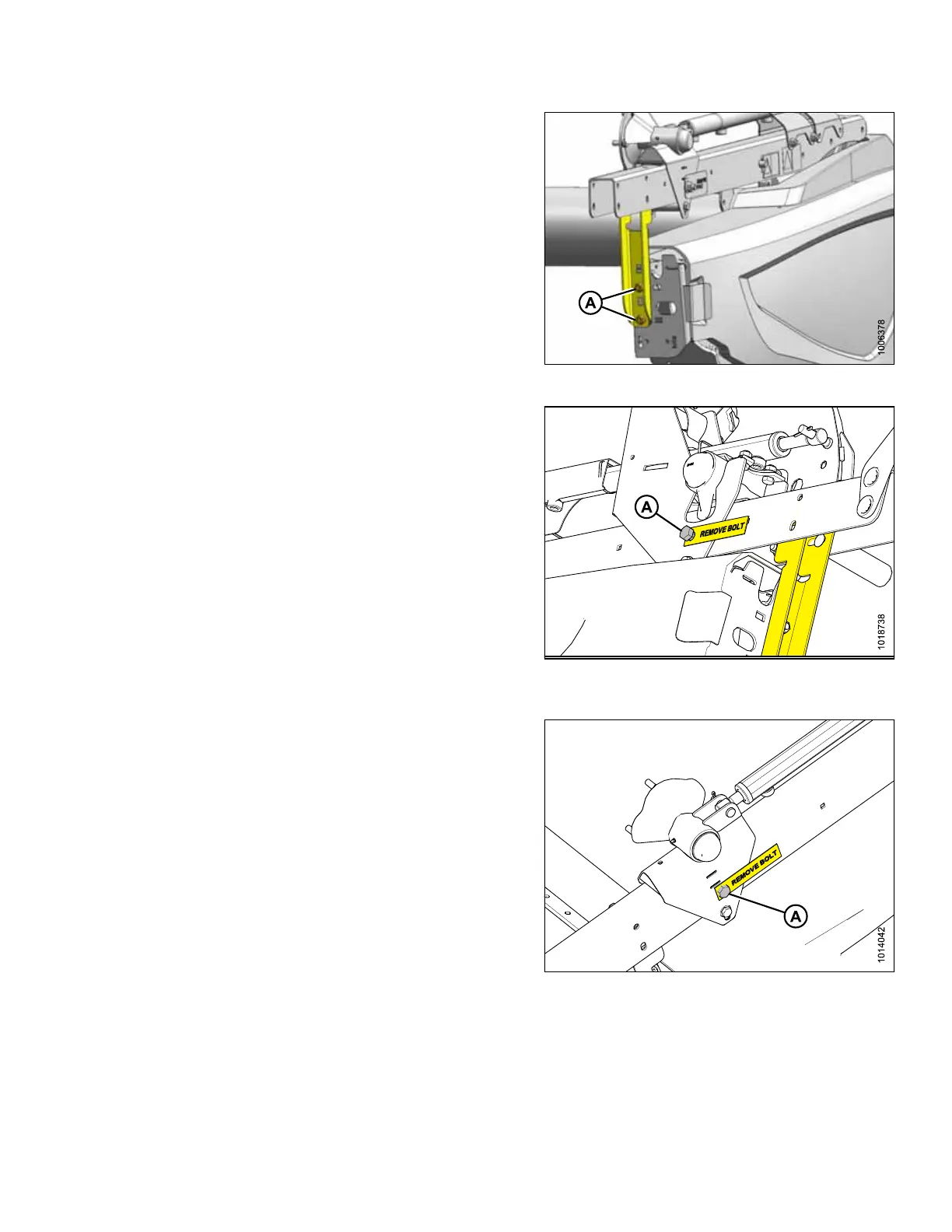

Figure 3.9: Reel Outboard Arm Support
21. Remove bolts (A) from reel arm support at endsheet,
and remove support. Repeat at other side.
Figure 3.10: Reel Right Arm (Parts Removed
for Clarity)
Figure 3.11: Reel Left Arm
22. Remove brace bolts (A) and tags locking reel fore-aft
position at outer reel arms.
IMPORTANT:
To prevent damaging fore-aft cylinders or structure, do
NOT use fore-aft cylinders to assist with removing bolts.
ASSEMBLING HEADER AND ADAPTER
