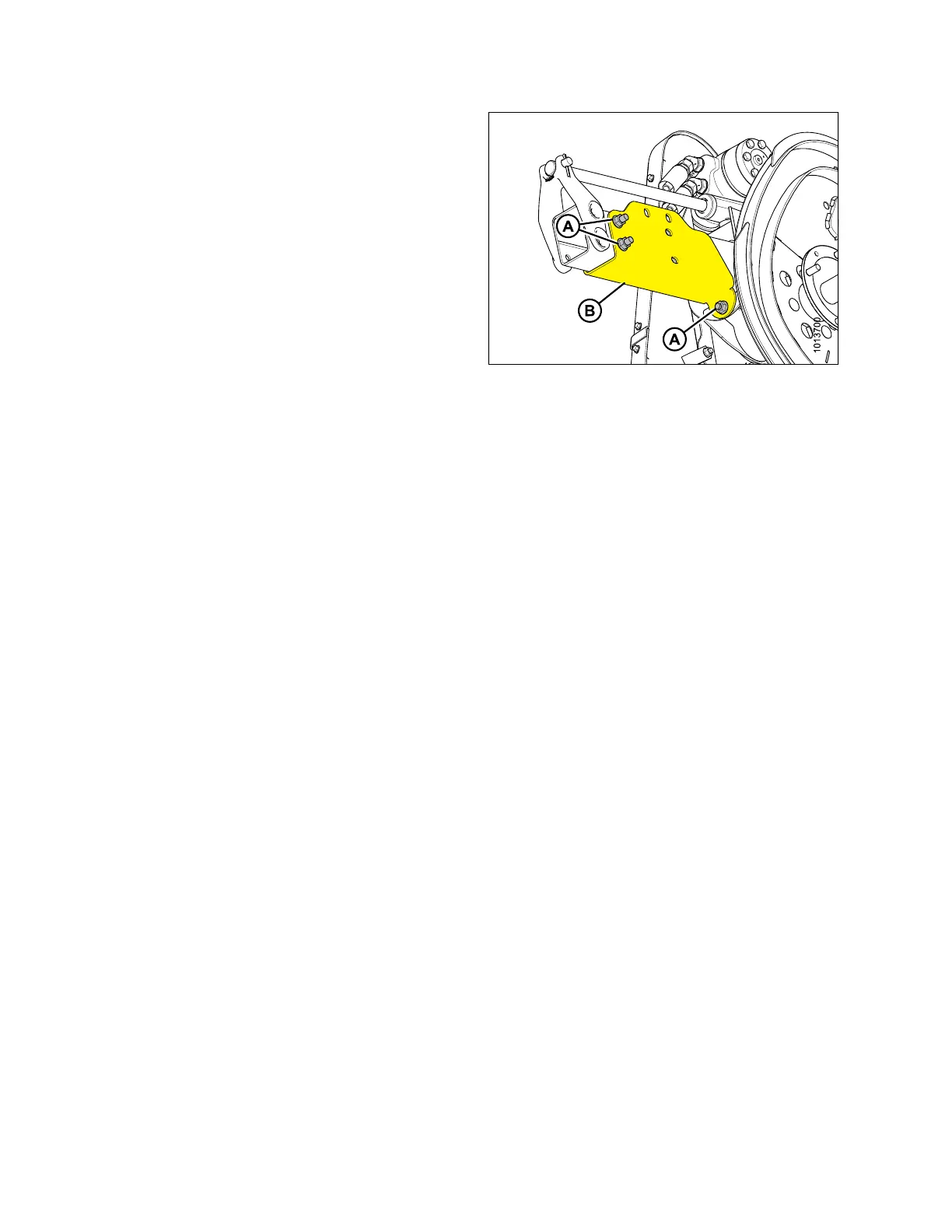

Figure 3.12: Reel Center Arm Shipping Channel
23. Remove remaining three bolts (A) locking reel fore-aft
position at center reel arm, and remove shipping
channel (B).
24. Proceed to 3.2 Setting up Combine Adapter, page 21.
