214325 70 Revision A

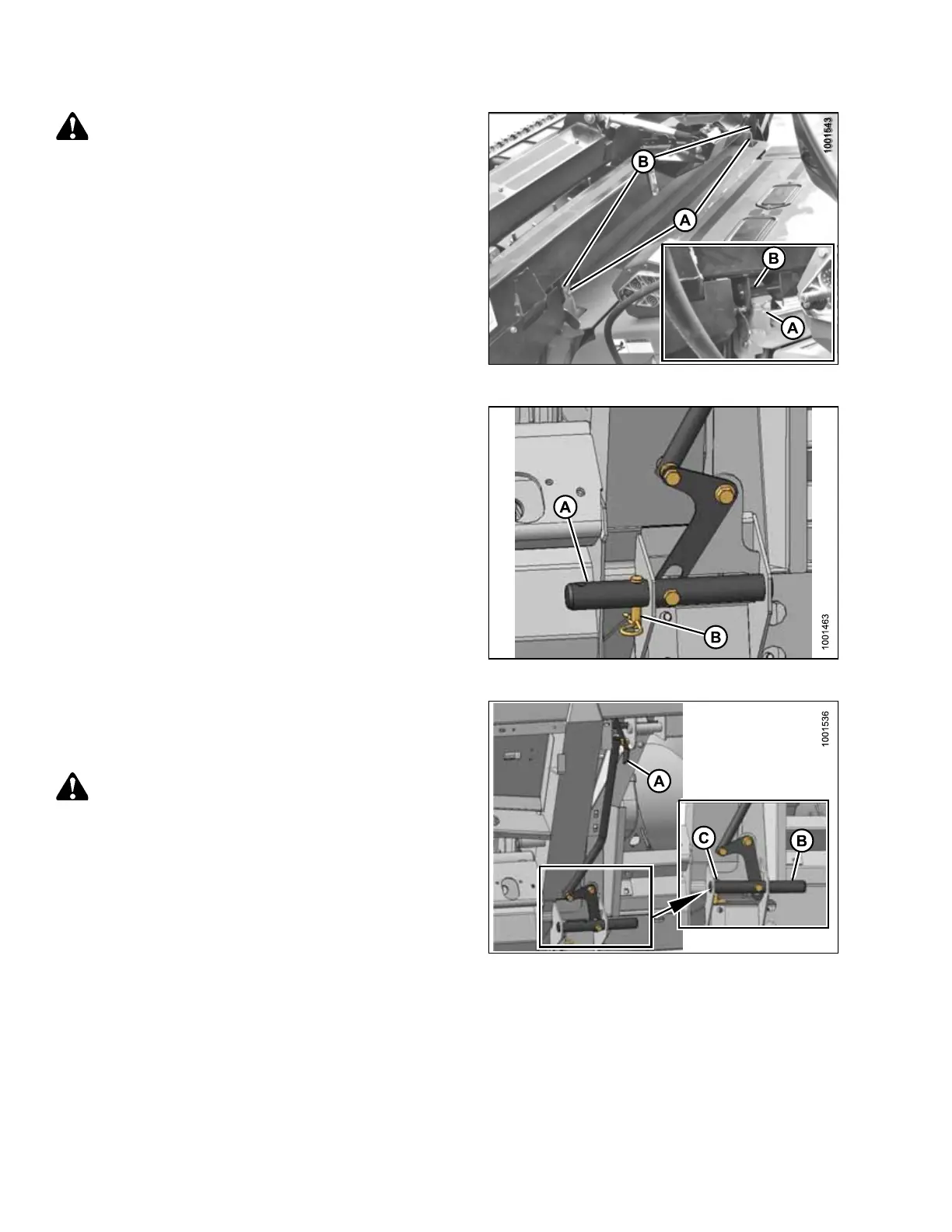

Figure 3.127: Header on Combine
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine and slowly drive combine up to header
until feeder house saddle (A) is directly under adapter
top cross member (B).
3. Raise feeder house slightly to lift header, ensuring
feeder saddle is properly engaged in adapter frame.
4. Stop engine and remove key from ignition.
Figure 3.128: Adapter Pin
5. Remove locking pin (B) from adapter pin (A).
Figure 3.129: Engaging Pins
6. Lower handle (A) to engage pins (B) into feeder house.
Reinsert locking pin (C) and secure with the hairpin.
7. Remove blocks from under cutterbar.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
8. Start engine and lower header.
9. Stop engine and remove key from ignition.
ASSEMBLING HEADER AND ADAPTER
