MacDon FFT FD75 - Page 261

214325 251 Revision A

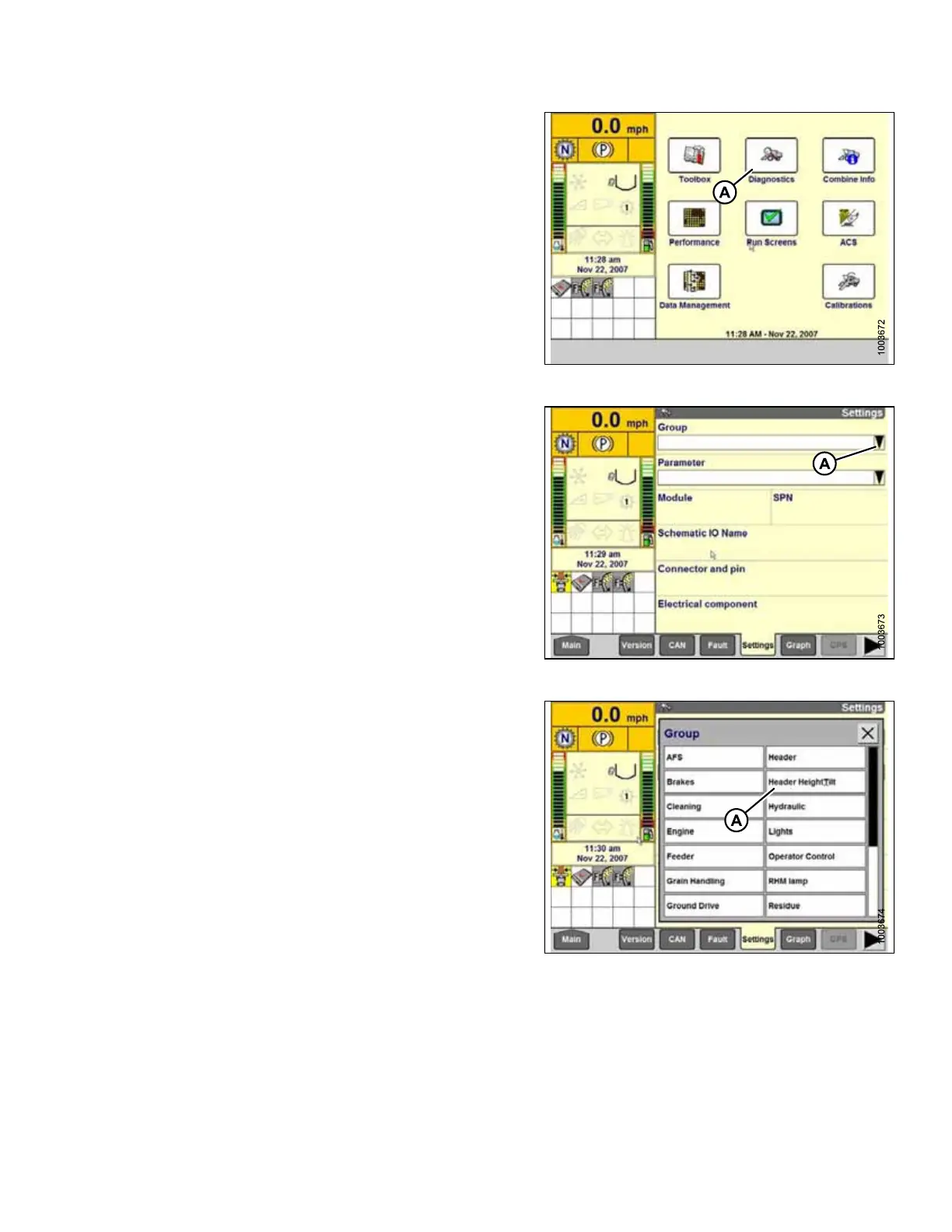

Figure 5.242: New Holland Combine Display
5. Select DIAGNOSTICS (A) on main page. The
DIAGNOSTICS page displays.
6. Select SETTINGS. The SETTINGS page displays.
Figure 5.243: New Holland Combine Display
7. Select GROUP drop-down arrow (A). The GROUP
dialog box displays.
Figure 5.244: New Holland Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER
page displays.
SETTING UP AUTO HEADER HEIGHT CONTROL
