214325 99 Revision A

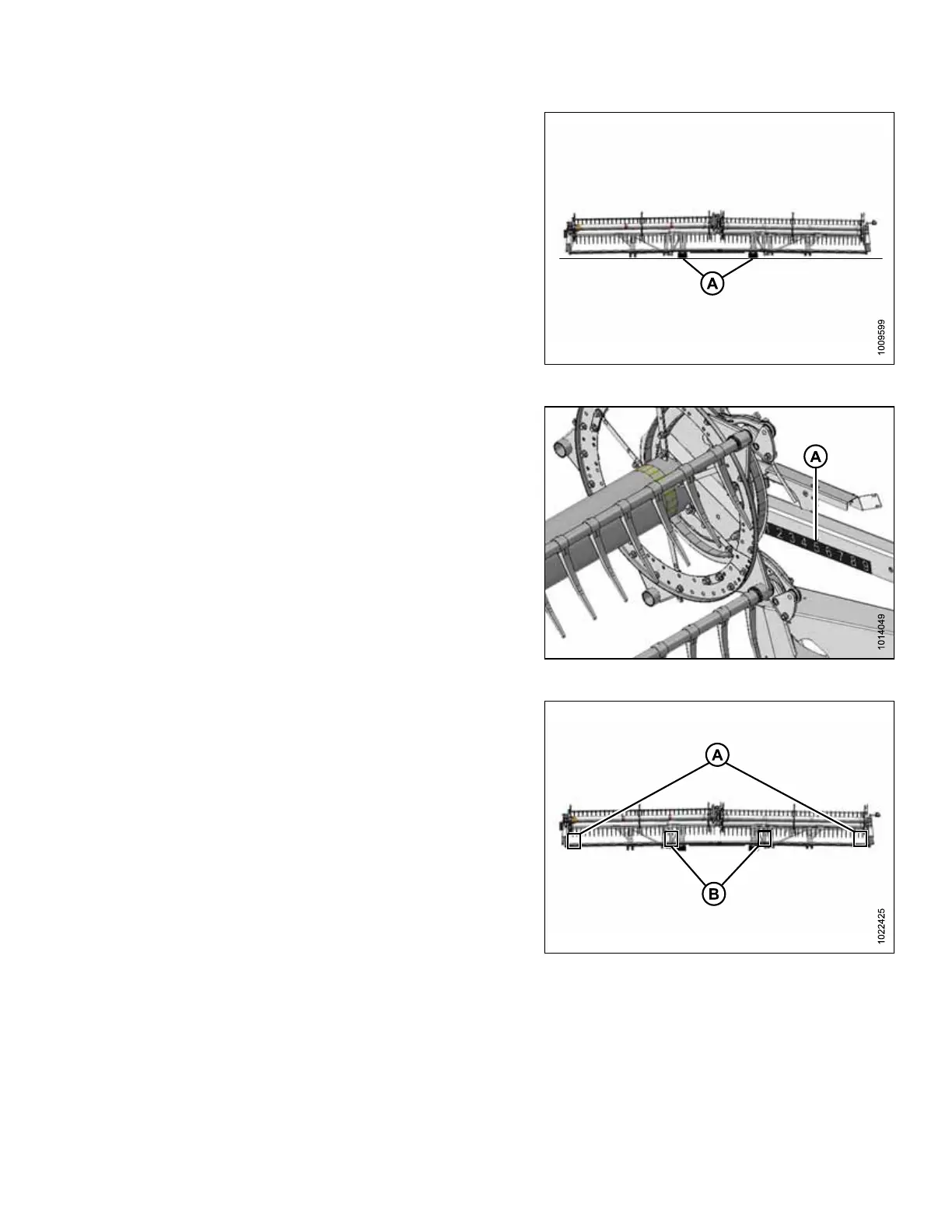

Figure 4.17: FlexDraper
®®
Block Locations
4. Raise header and place two 150 mm (6 in.) blocks (A)
under cutterbar, just inboard of wing flex points.
5. Lower header fully, allowing it to flex into full
frown mode.
Figure 4.18: Fore-Aft Position
6. Set fore-aft position to middle position 5 on fore-aft
position indicator decal (A).
7. Lower reel fully.
8. Shut down engine and remove key from ignition.
Figure 4.19: Measurement Locations
A - Clearance Points B - Flex Points
9. Measure clearance at ends (A) of each reel and at flex
locations (B).
NOTE:
The reel is factory-set to provide more clearance at
center of reel than at ends (frown) to compensate for
reel flexing.
PERFORMING PREDELIVERY CHECKS
