214325 102 Revision A

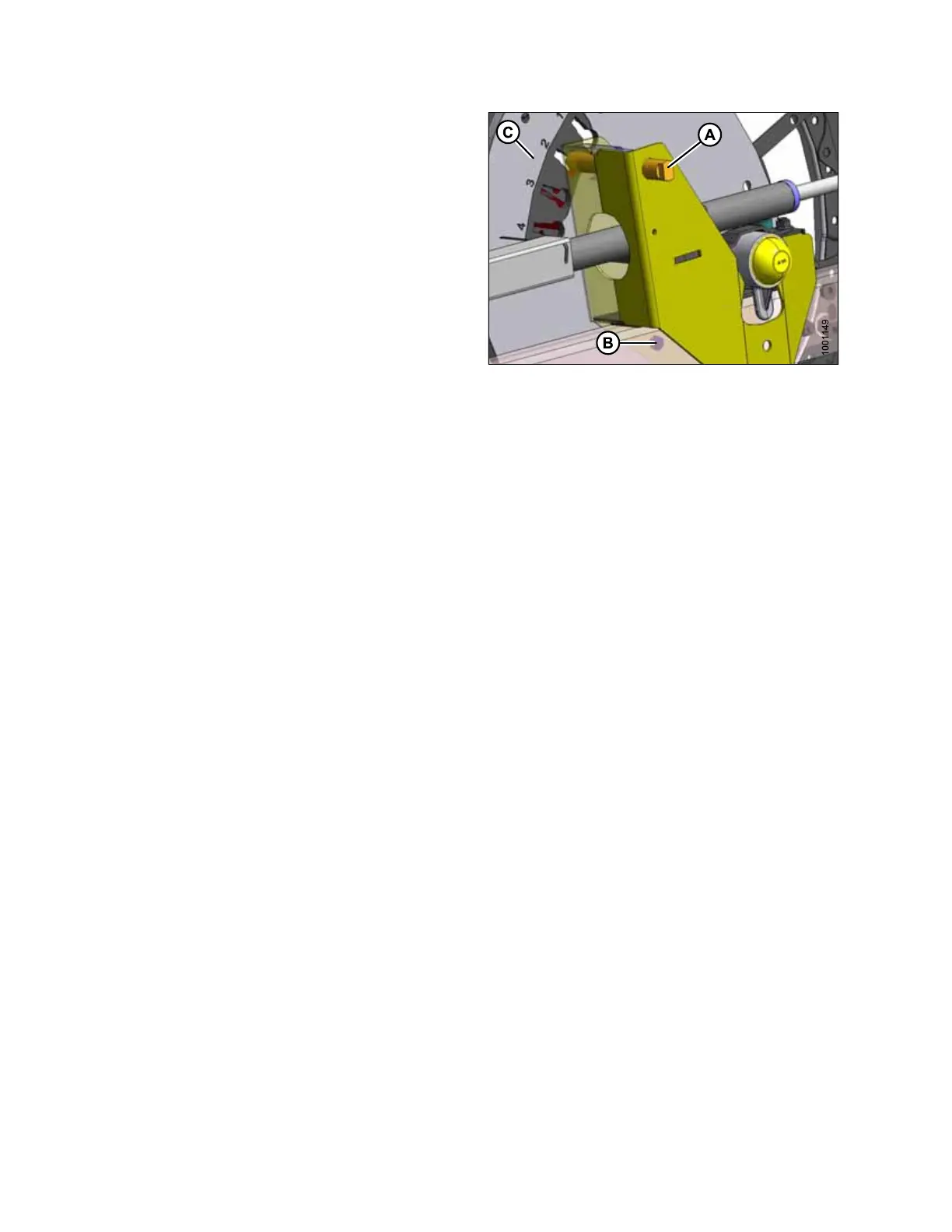

Figure 4.24: Cam Disc Positions
2. Turn the latch pin (A) counterclockwise using a 3/4 in.
wrench to release the cam disc.
3. Use the wrench on bolt (B) to rotate the cam disc and
align the latch pin (A) with the desired cam disc hole
position (C) (1 to 4).
NOTE:
Bolt (B) is positioned through the cam disc (transparent
view shown in illustration for improved clarity).
4. Turn the latch pin (A) clockwise to engage and lock the
cam disc.
5. Repeat the above procedure for the opposite reel.
IMPORTANT:
Ensure the cam is secured into position before
operating the machine.
PERFORMING PREDELIVERY CHECKS
