214325 118 Revision A

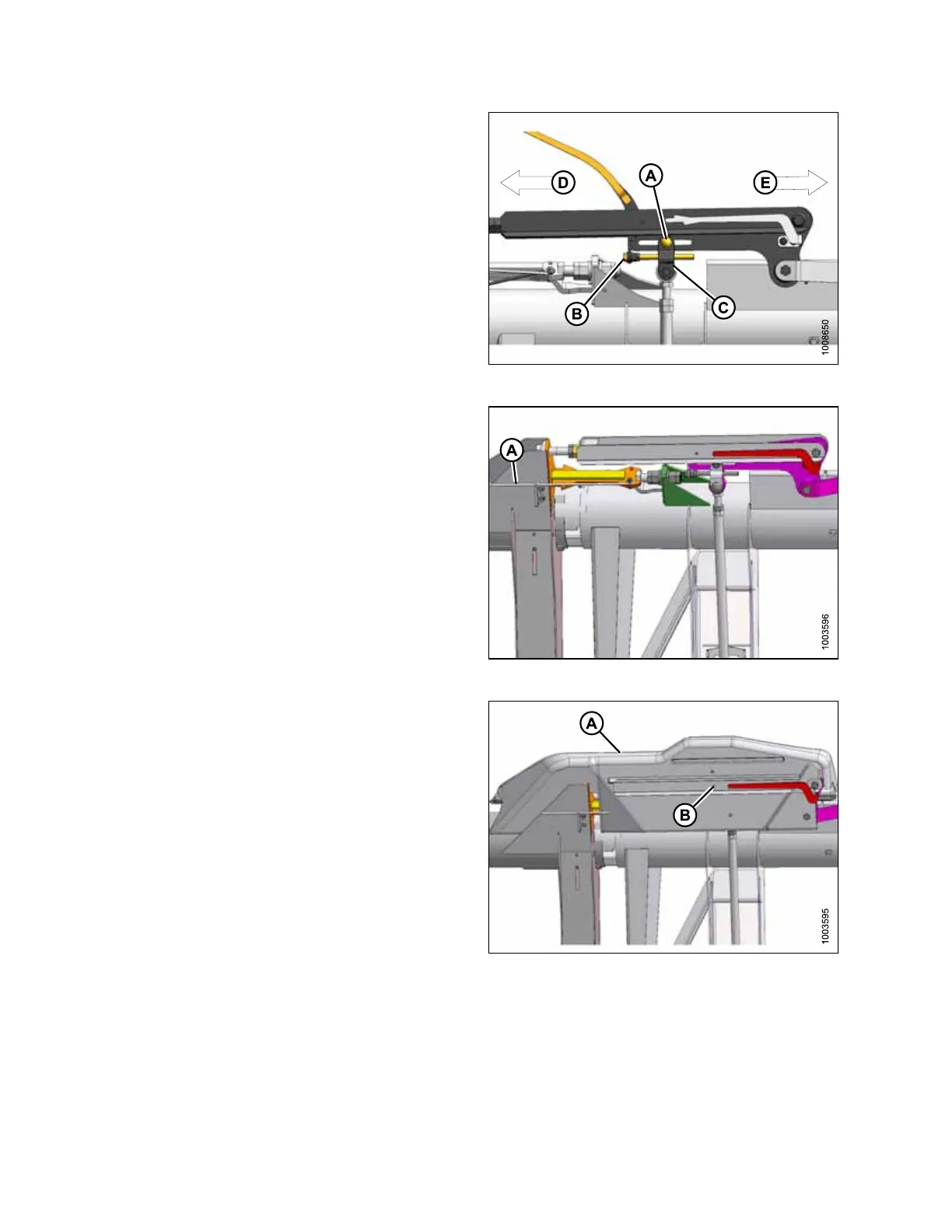

Figure 4.61: Balance Linkage
11. Recheck the wing balance. Refer to 4.12.1 Checking
Wing Balance, page 110.
12. If necessary, perform the following adjustments:
• If the wing is too heavy, turn adjuster bolt (B) to
move clevis (C) outboard (D).
• If the wing is too light, turn adjuster bolt (B) to move
clevis (C) inboard (E).
13. Adjust clevis (C) position if necessary until indicator
readings are within one increment.
14. Tighten clevis bolt (A).
Figure 4.62: Wing Lock in Lock Position
15. Move handle (A) to the upper LOCK position.
16. If lock does not engage, move the wing up and down
with torque wrench until it locks. When locked, there will
be some movement in the linkage.
17. If the cutterbar is not straight when wings are in lock
mode, then further adjustments are required.
Figure 4.63: Linkage Cover
18. Replace torque wrench on adapter frame.
19. Reinstall linkage cover (A) and secure it with bolt (B).
PERFORMING PREDELIVERY CHECKS
