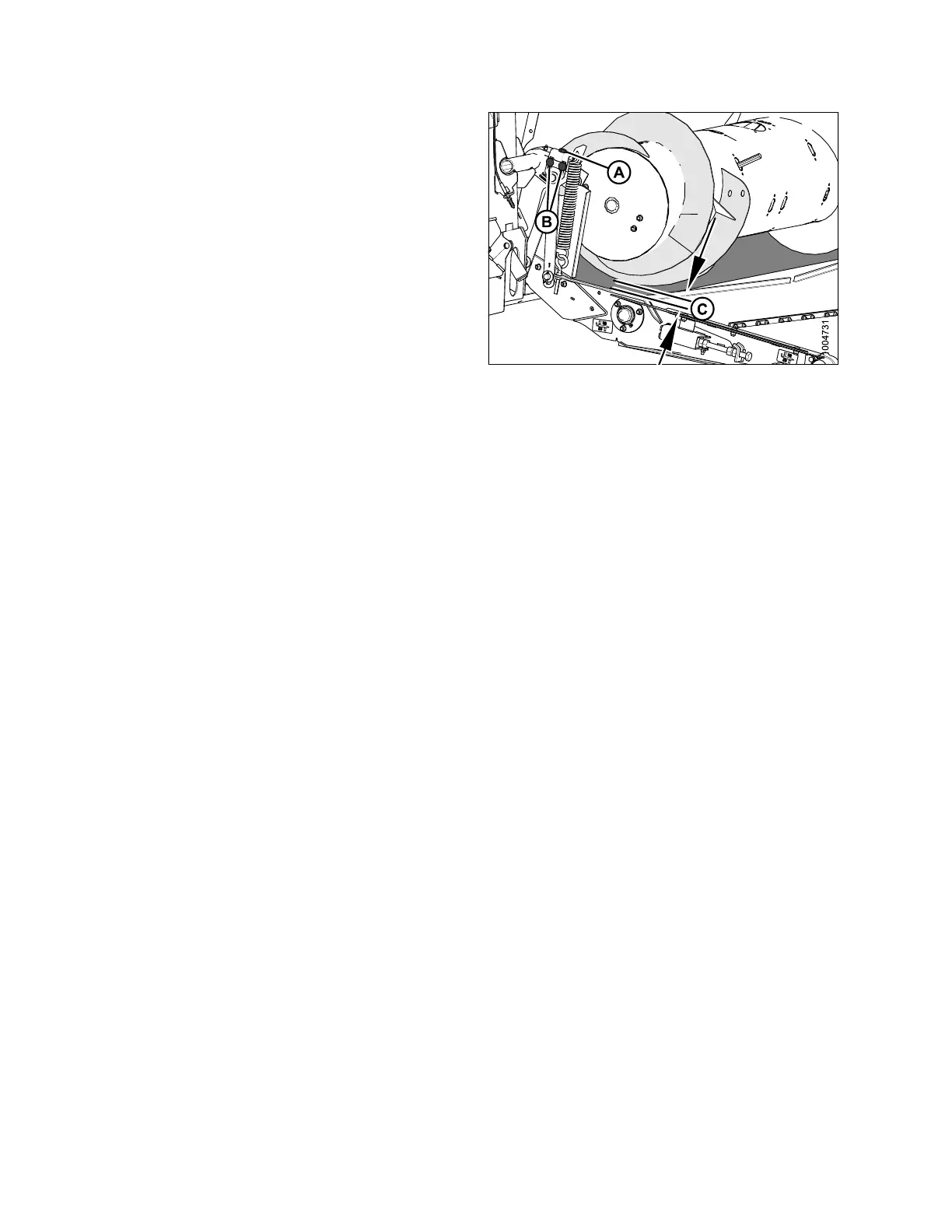

Figure 4.66: Auger Clearance
6. Loosen two nuts (B).
7. Use adjuster bolt (A) to set clearance (C) to 5–10 mm
(3/16–3/8 in.). Turn adjuster bolt (A) clockwise to
increase clearance and counterclockwise to decrease
clearance.
NOTE:
The clearance increases 25–40 mm (1–1-1/2 in.) when
center-link is fully retracted.
8. Repeat previous two steps on opposite end of auger.
9. Tighten nuts (B) on both ends of feed auger. Torque
nuts to 106–118 Nm (79–87 lbf·ft).
