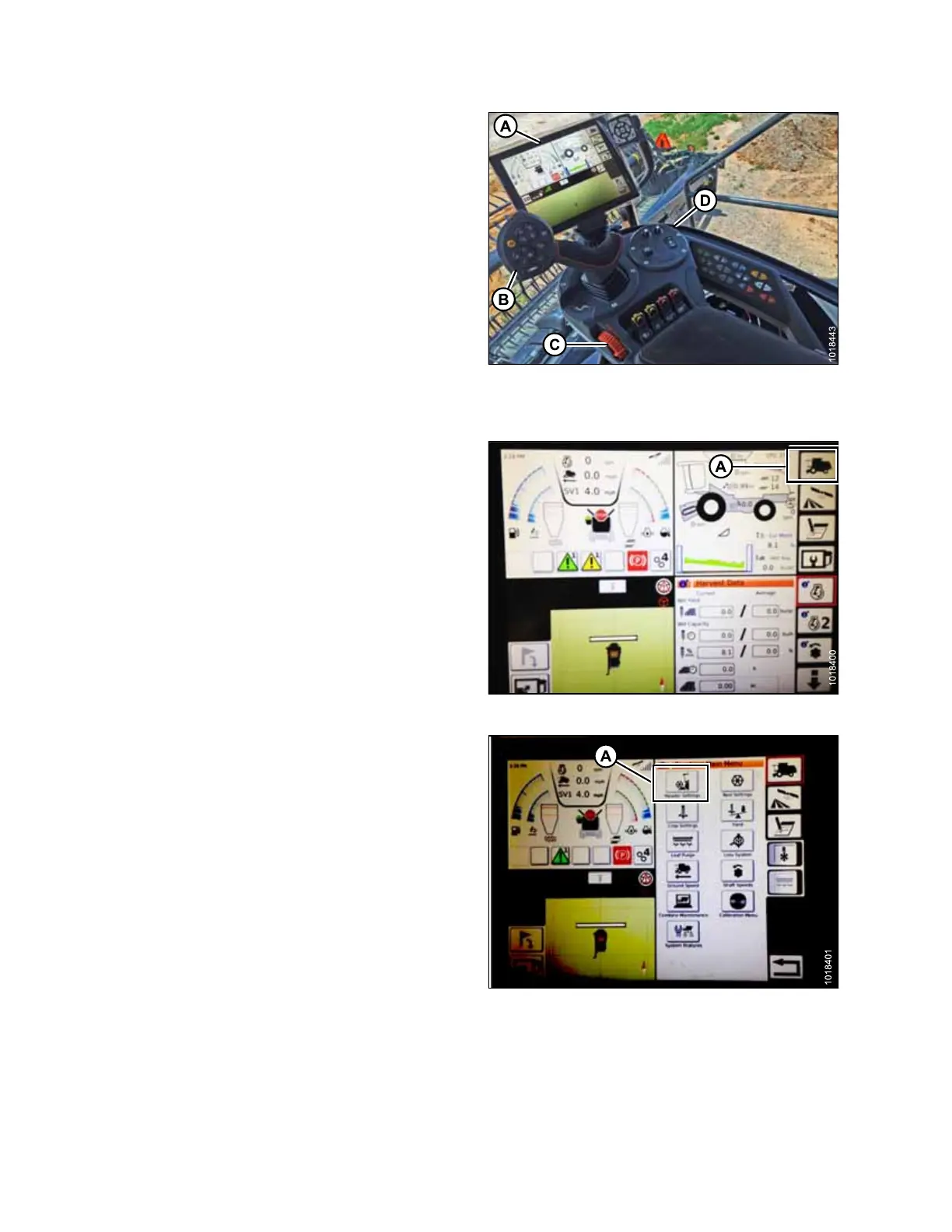

Figure 5.83: Gleaner S9
A - Tyton Terminal B - Hydro Handle/Ground Speed Lever
C - Throttle Lever D - Header Control Cluster
The AGCO Tyton terminal is used to set up and manage a
MacDon draper header on an Gleaner S9 combine. The
terminal has a touch screen so you can simply touch
desired area on terminal screen to select an item.
Figure 5.84: Combine Icon on Home Page
1. On top right of home page, touch COMBINE icon (A) on
top right. The COMBINE MAIN MENU opens.
Figure 5.85: Header Settings in Combine
Main Menu
2. On COMBINE MAIN MENU, touch HEADER
SETTINGS (A). The HEADER SETTINGS page opens.
SETTING UP AUTO HEADER HEIGHT CONTROL
