MacDon FFT FD75 - Page 192

214325 182 Revision A

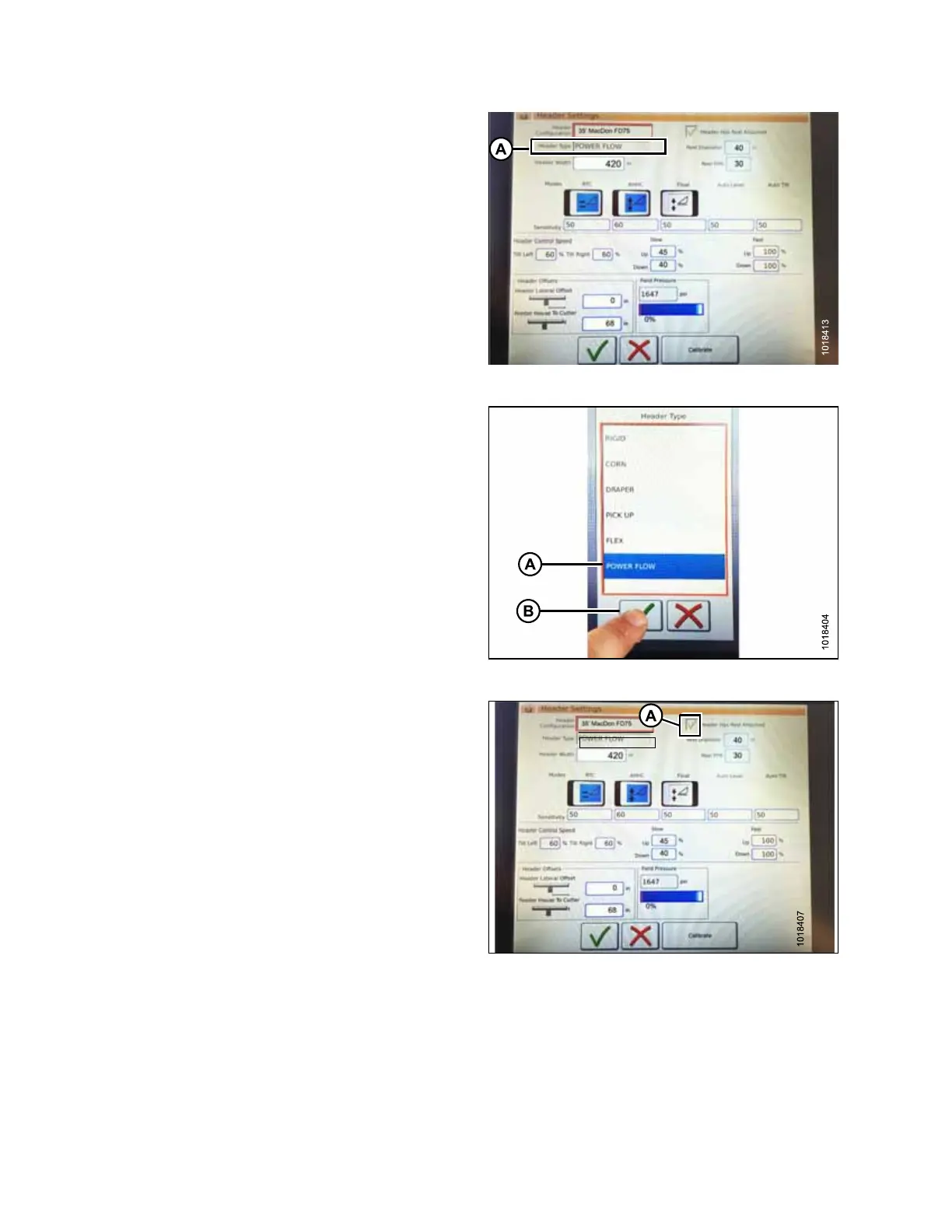

Figure 5.87: Header Settings
4. To specify type of header installed on machine, touch
HEADER TYPE field (A).
Figure 5.88: Header Type
5. A list of predefined header types appears.
• For MacDon Draper and FlexDraper headers, touch
POWER FLOW (A).
• Touch green check mark (B) to save selection and
continue.
Figure 5.89: Header Settings
6. Make sure that HEADER HAS REEL ATTACHED green
check box (A) is checked.
SETTING UP AUTO HEADER HEIGHT CONTROL
