214325 240 Revision A

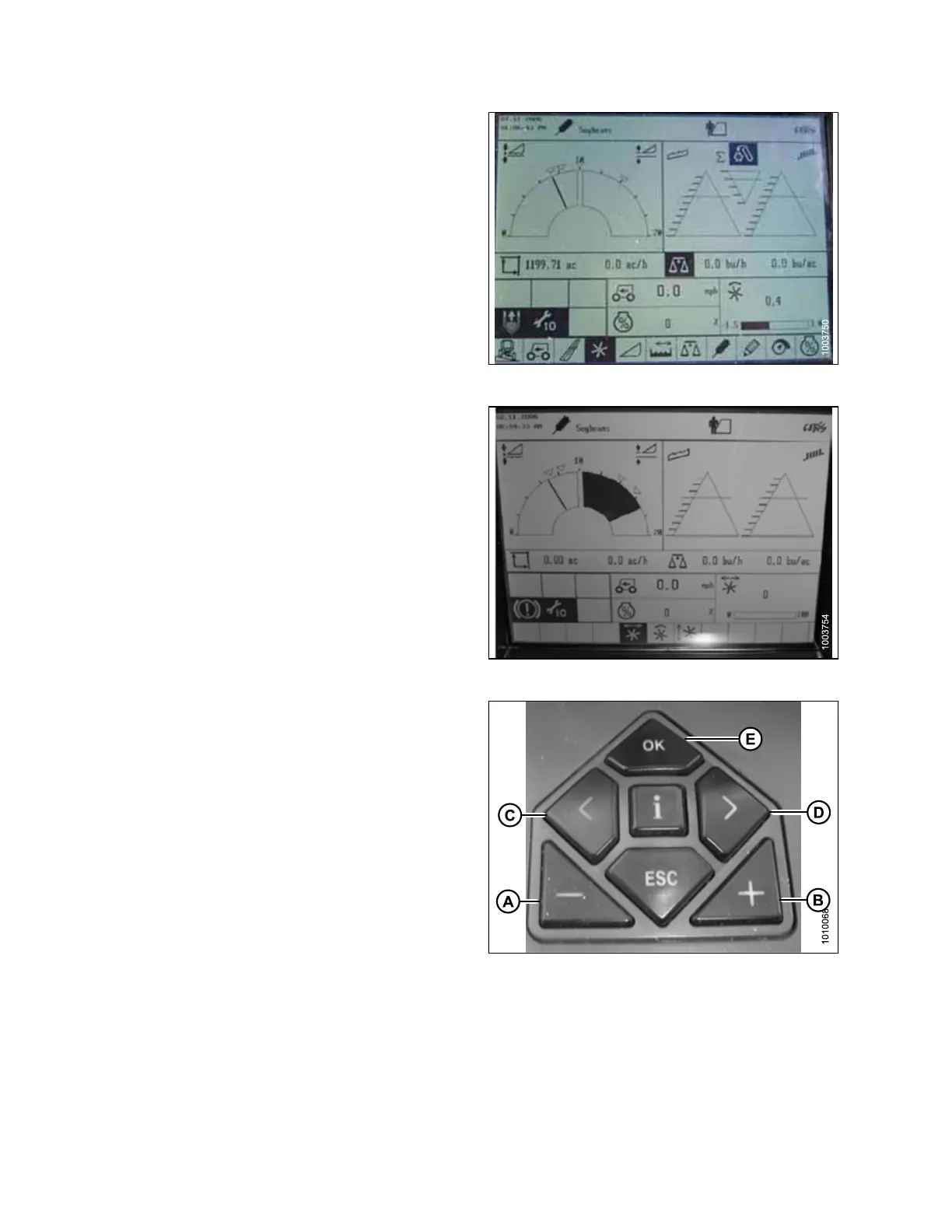

Figure 5.216: Combine Display
Figure 5.217: Combine Display
6. Use < or > key to select REEL WINDOW. When reel
window is selected, window E15 will display current
advance or retard speed of reel in relation to
ground speed.
Figure 5.218: Combine Controls
7. Press OK key (E), and use < key (C) or the > key (D) to
select REEL FORE AND AFT window.
8. Use – key (A) or + key (B) to set reel fore-aft position.
SETTING UP AUTO HEADER HEIGHT CONTROL
