MacDon FFT FD75 - Page 271

214325 261 Revision A

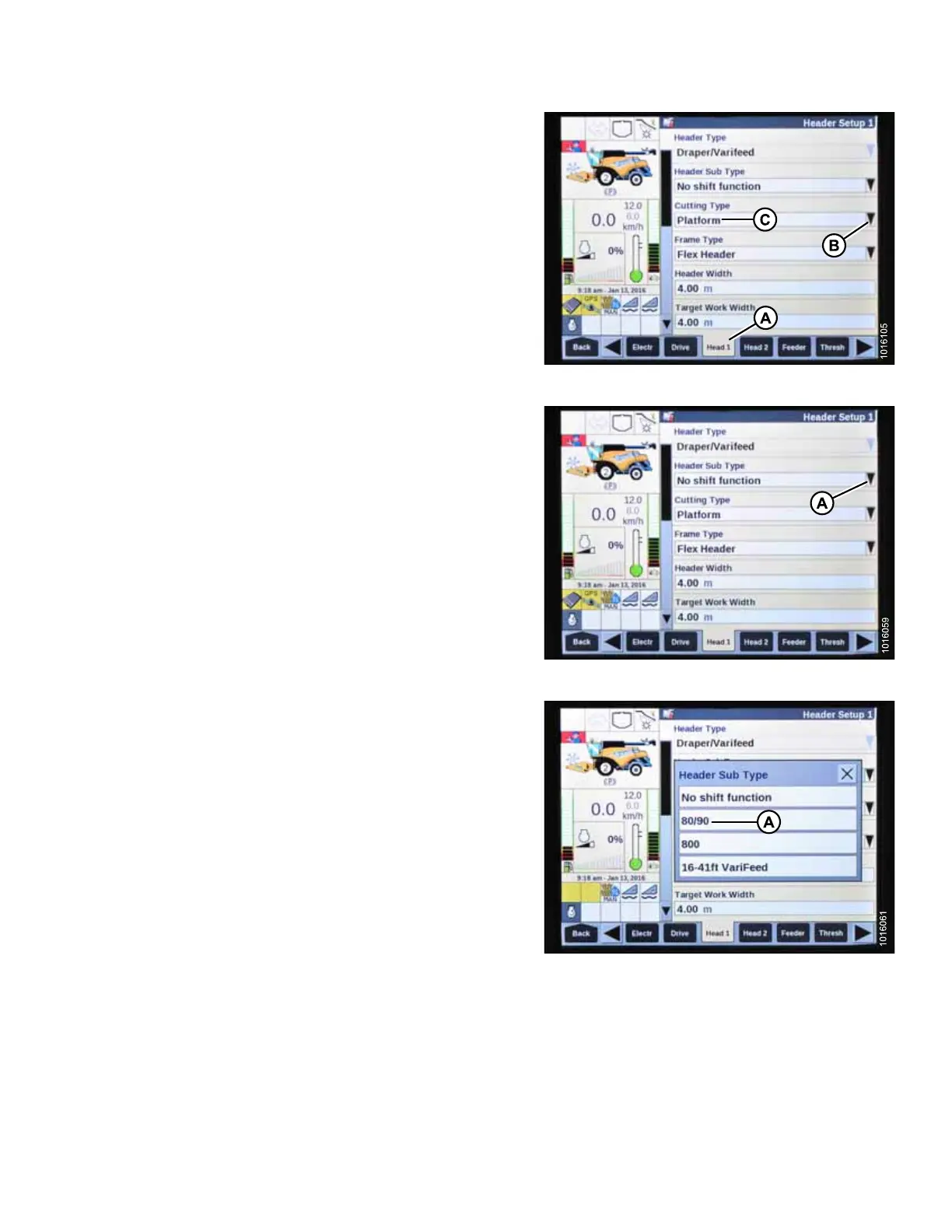

Figure 5.263: New Holland Combine Display
4. Select HEAD 1 (A). The HEADER SETUP 1 page
displays.
5. Select CUTTING TYPE drop-down arrow (B) and
change CUTTING TYPE to PLATFORM (C).
Figure 5.264: New Holland Combine Display
6. Select HEADER SUB TYPE drop-down arrow (A). The
HEADER SUB TYPE dialog box displays.
Figure 5.265: New Holland Combine Display
7. Select 80/90 (A).
SETTING UP AUTO HEADER HEIGHT CONTROL
