214325 267 Revision A

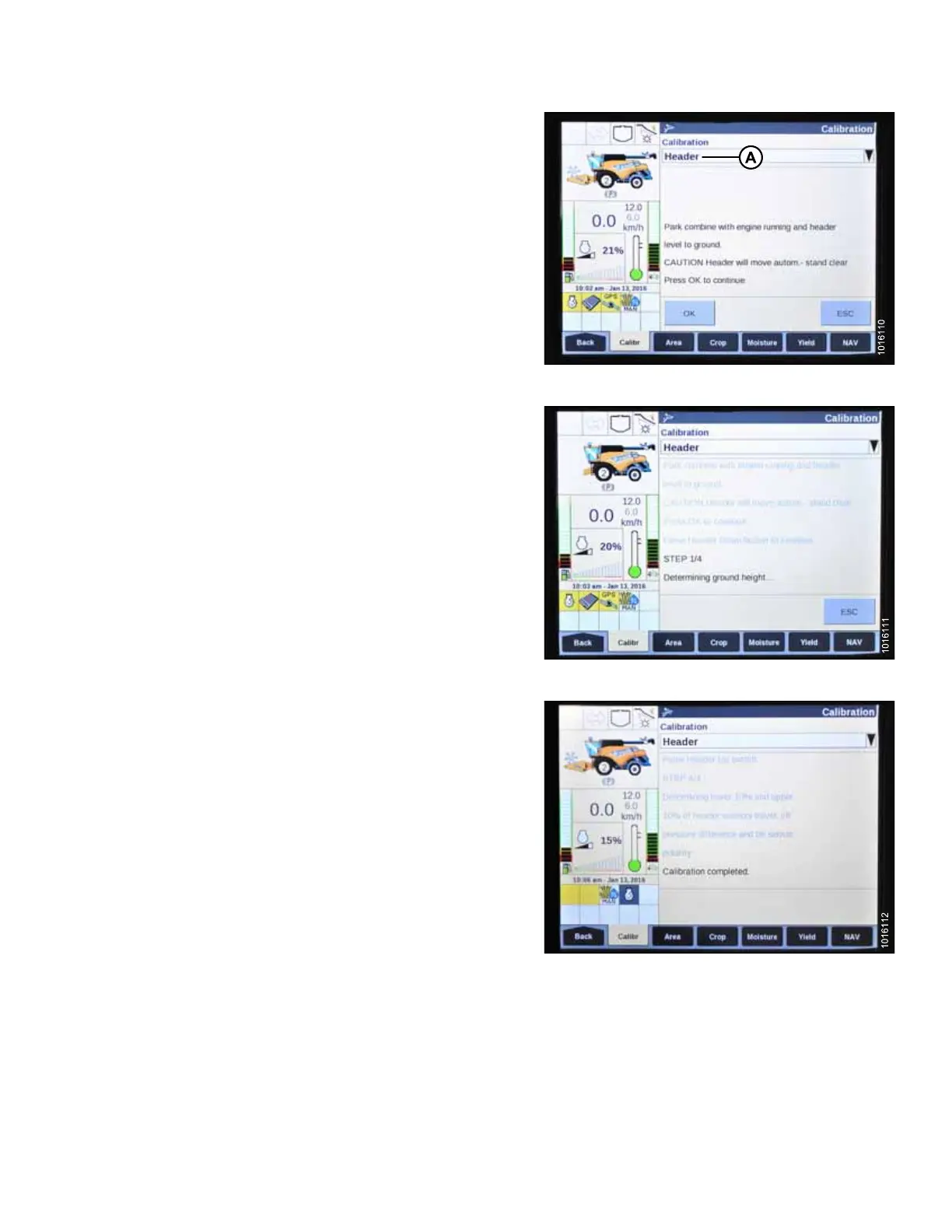

Figure 5.278: New Holland Combine Display
3. Select HEADER (A) from list of calibration options.
Figure 5.279: New Holland Combine Display
4. Follow calibration steps in order in which they appear
on screen. As you proceed through calibration process,
display will automatically update to show next step.
NOTE:
Pressing ESC key during any of steps or letting system
sit idle for more than three minutes will cause
calibration procedure to stop.
NOTE:
Refer to your combine operator’s manual for an
explanation of any error codes.
Figure 5.280: New Holland Combine Display
5. When all steps have been completed, CALIBRATION
COMPLETED message is displayed on screen.
NOTE:
If float was set heavier to complete ground calibration
procedure, adjust to recommended operating float after
calibration is complete.
SETTING UP AUTO HEADER HEIGHT CONTROL
