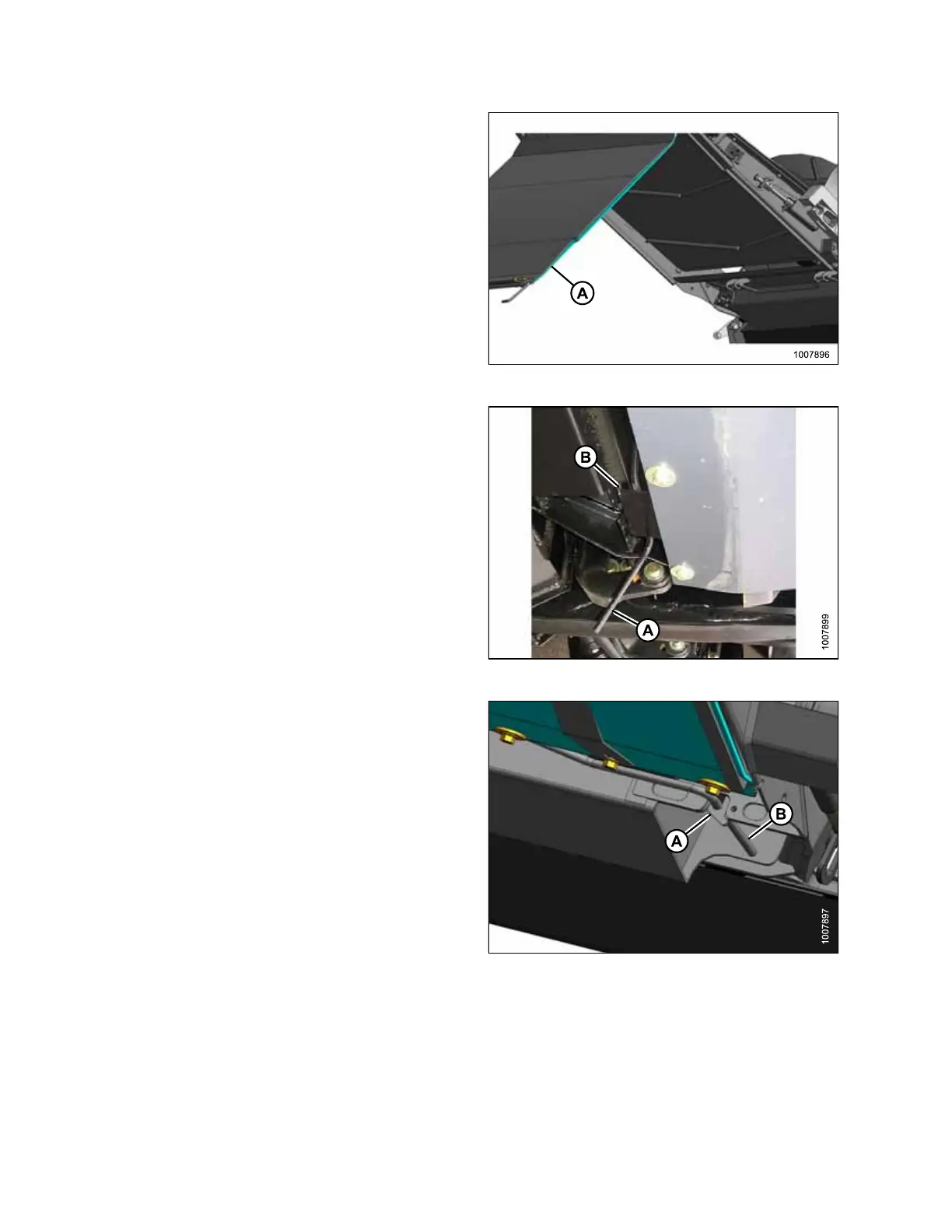

Figure 6.2: Adapter Plastic Pan
6. Check and remove debris from pan (A) and draper.
Figure 6.3: Clips Engaged
7. Raise pan and rotate handle (A) so that rod engages
clips (B) on pan.
Figure 6.4: Latches Secured
8. Push handle (B) into slot and secure it with latches (A).
RUNNING UP HEADER
