214325 283 Revision A

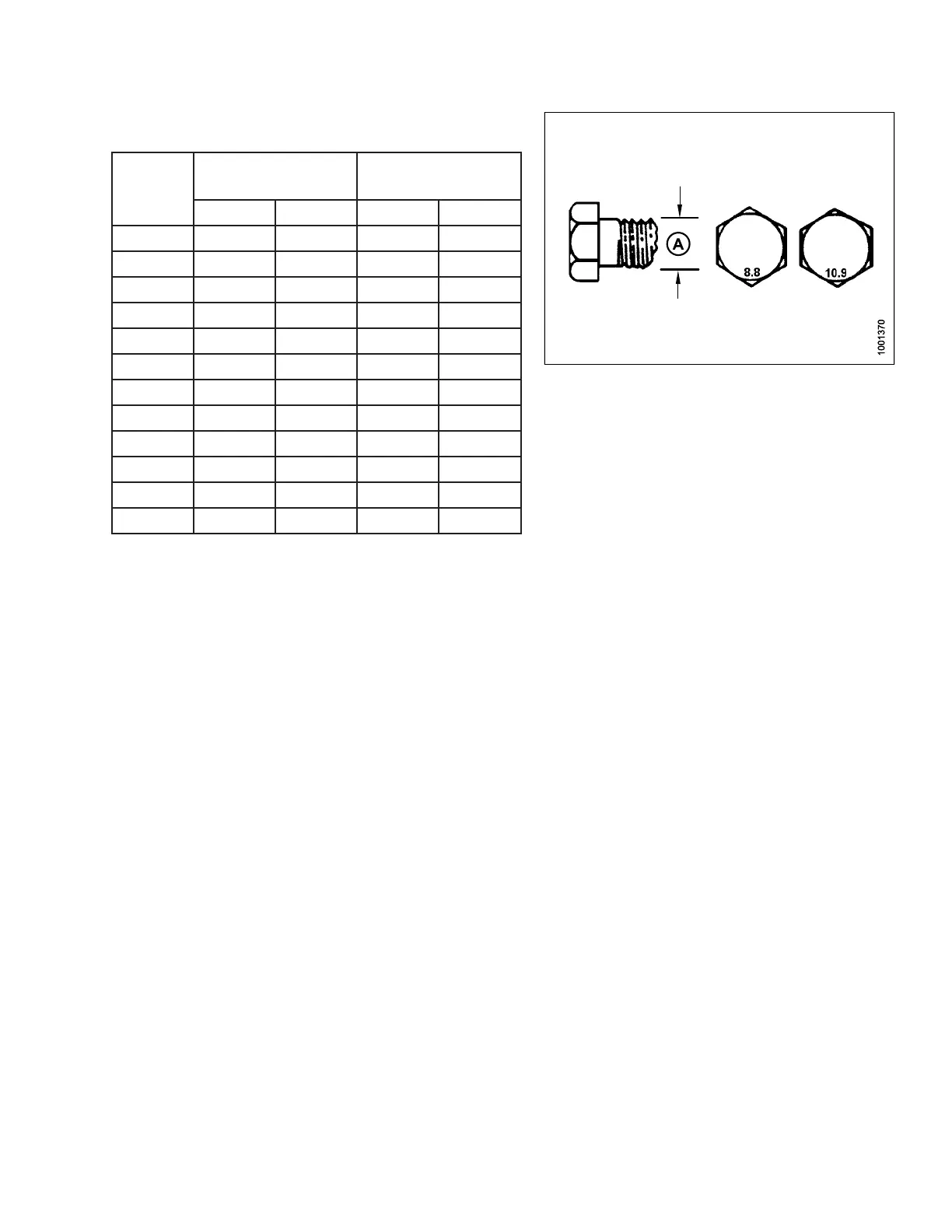

Figure 7.8: Bolt Grades
Table 7.8 Metric Class 10.9 Bolts and Class 10 Distorted
Thread Nut
Nominal
Size (A)
Torque (Nm)
Torque (lbf·ft)
(*lbf·in)
Min. Max. Min. Max.
3-0.5 1.3 1.5
*12 *13
3.5-0.6 2.1 2.3
*19 *21
4-0.7 3.1 3.4
*28 *31
5-0.8 6.3
7
*56 *62
6-1.0 10.7 11.8
*95 *105
8-1.25 26 29 19 21
10-1.5 51
57
38 42
12-1.75 90 99 66 73
14-2.0 143 158 106 117
16-2.0 222 246 165 182
20-2.5 434 480 322 356
24-3.0 750 829 556 614
REFERENCE
