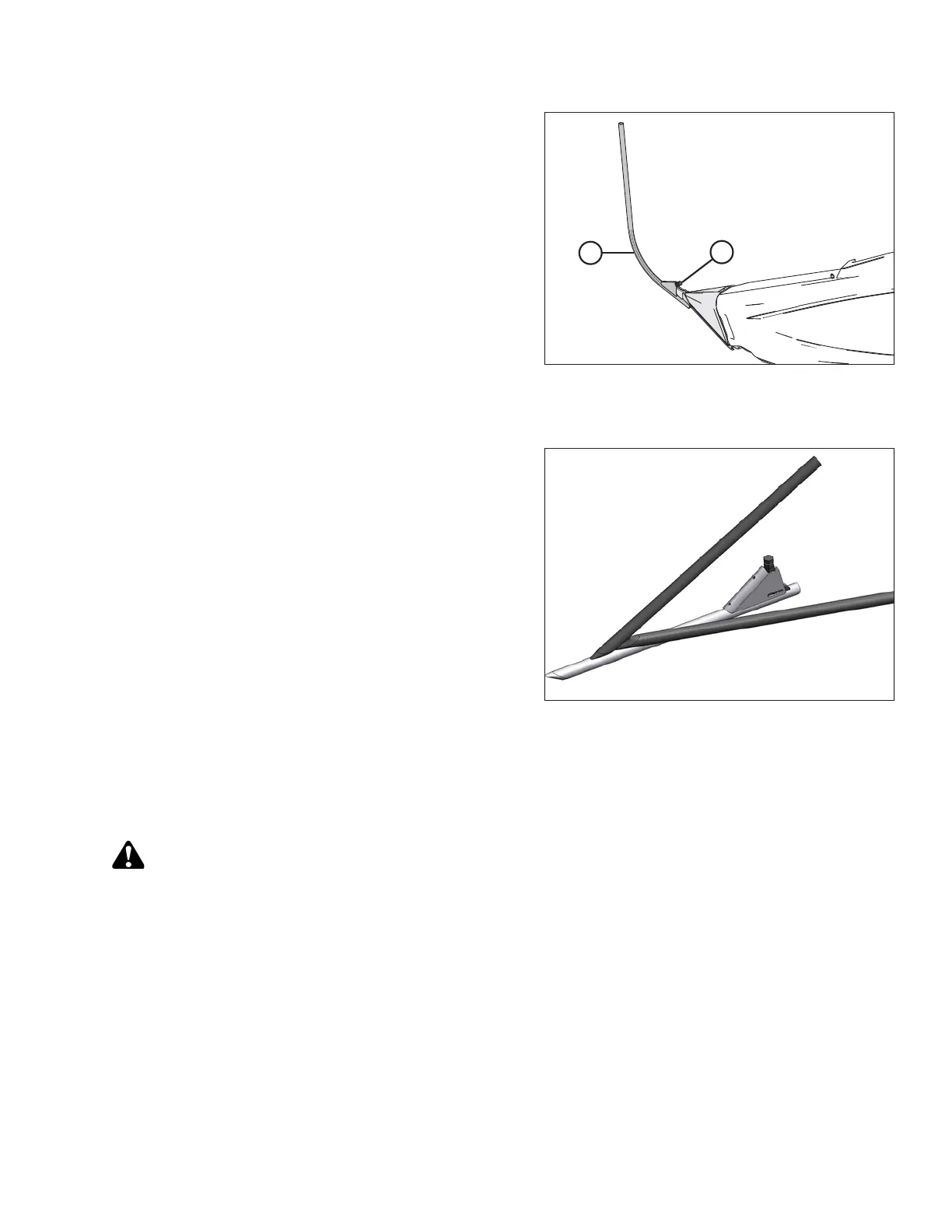

Figure 3.147: Divider Rod on Crop Divider
2. Position crop divider rod (B) on tip of crop divider as
shown and tighten bolt (A).
3. Repeat procedure at opposite end of header.
Rice Divider Rods
Figure 3.148: Divider Rod for Rice
Optional rice divider rods provide improved performance in
tall and tangled rice crops. The installation and removal
procedures for these rods are the same as the installation
and removal procedures for standard crop divider rods.
Refer to 6.5.10 Rice Divider Rods, page 559.
3.7.15 Setting Auger Position
The auger position has two settings—floating and fixed. The factory setting is the floating position, and is
recommended for most crop conditions.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
OPERATION
