MacDon FlexDraper FD130 - Setting Preset Cutting Height (New Holland CR Series - 2015 and Later)

214683 281 Revision A
Setting Preset Cutting Height (New Holland CR Series – 2015 and Later)
NOTE:
This section applies only to 2015 and later CR models (6.80, 6.90, 7.90, 8.90, 9.90, and 10.90). For other pre-2015
New Holland combine models, refer to 3.8.15 New Holland Combines (CR/CX Series—Pre-2015 Model Year),
page 261.
1015008
A
B
C

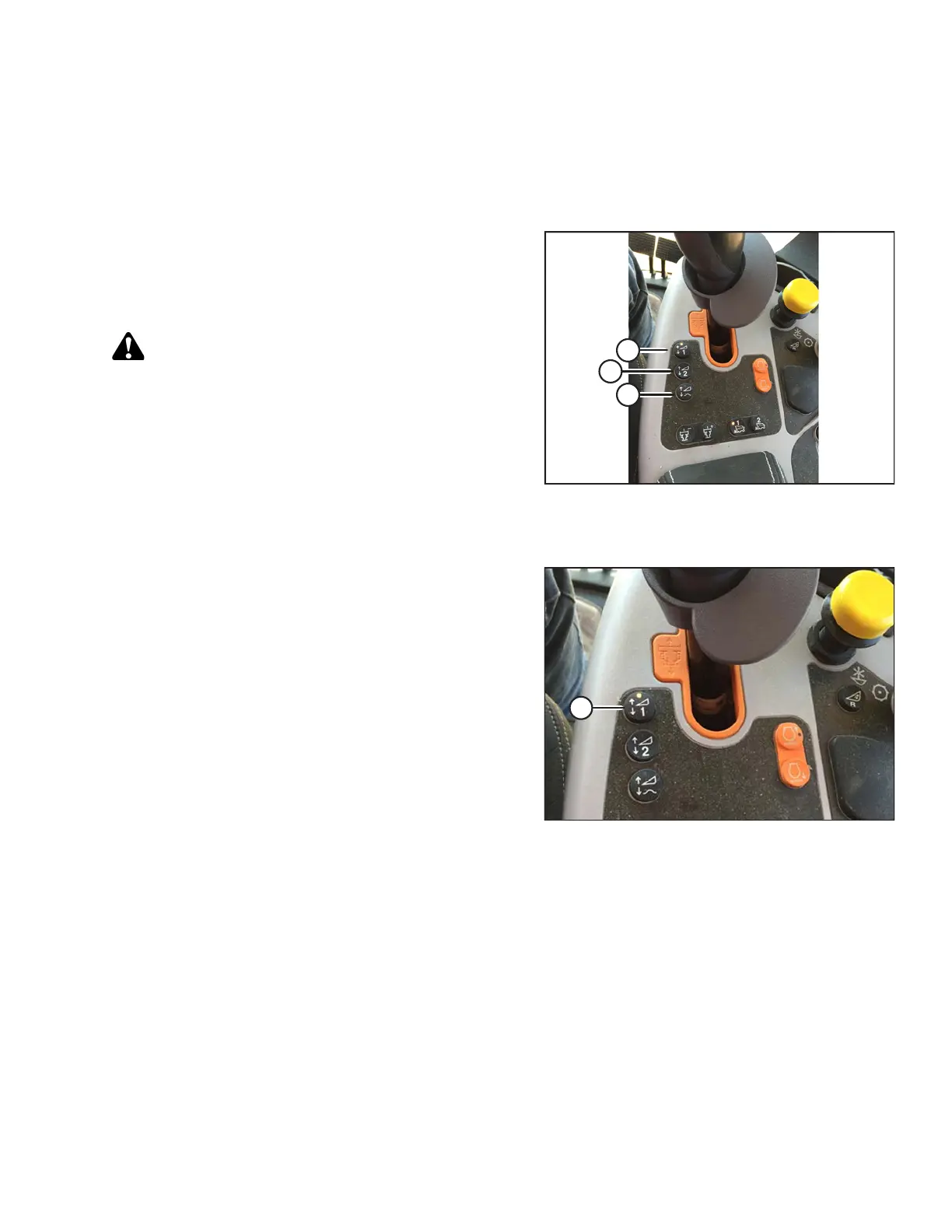

Figure 3.499: New Holland Combine Controls
The console has two buttons used for auto height presets.
The toggle switch that was present on previous models is
now configured as shown at right. MacDon headers only
require the first two buttons (A) and (B). The third button (C)
is not configured.
CAUTION
Check to be sure all bystanders have cleared the area.
To set preset cutting height, follow these steps:
1024394
A
Figure 3.500: New Holland Combine Controls
1. Engage separator and header.
2. Select preset button 1 (A). A yellow light on the button
will illuminate.
3. Raise or lower the header to desired cutting height.
OPERATION
