214683 477 Revision A

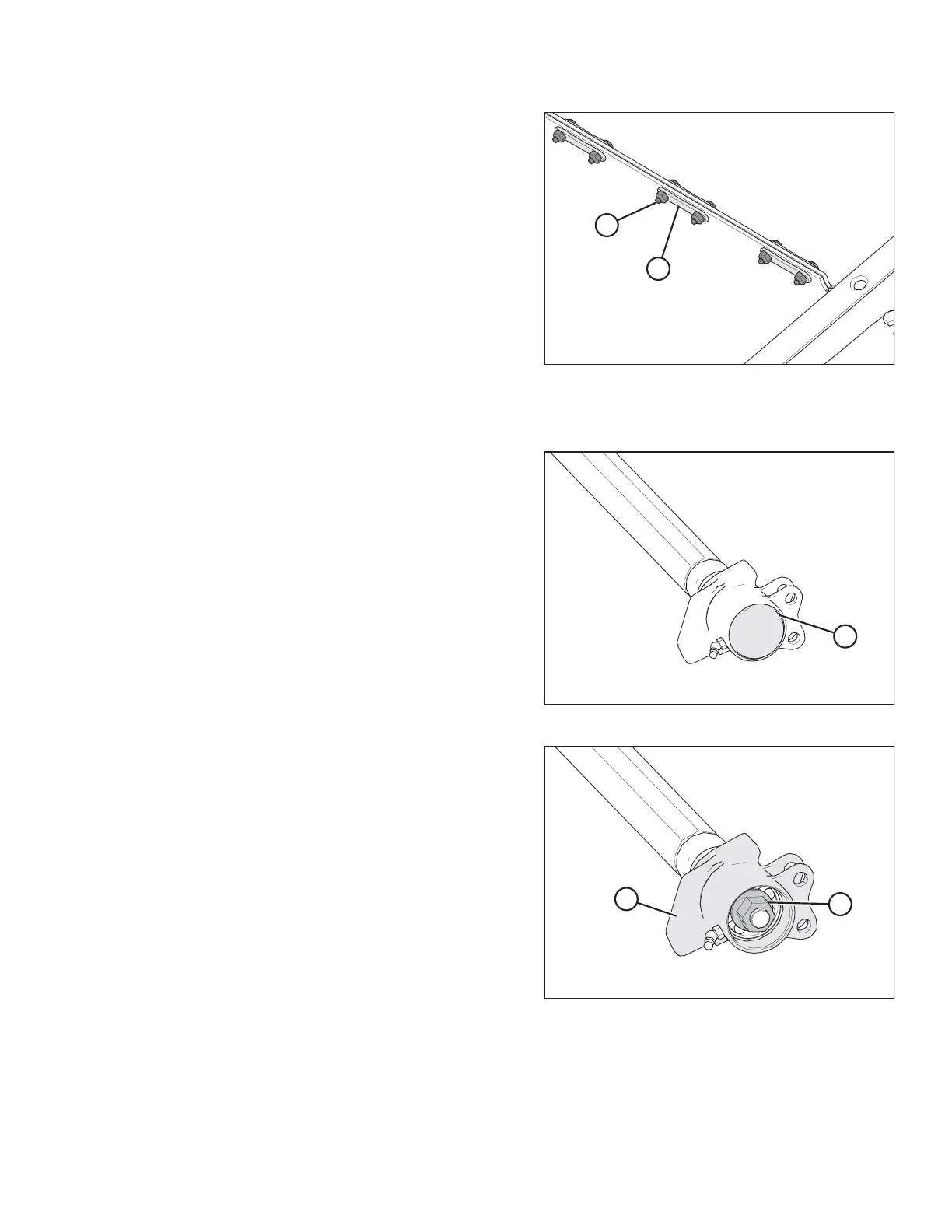

Figure 5.168: Draper Connector
4. Close the feed draper and secure with connector
straps (B), screws (A), and nuts.
5. Tension the feed draper. Refer to 5.10.2 Adjusting Feed
Draper Tension, page 468.
Replacing Feed Draper Idler Roller Bearing
Figure 5.169: Idler Roller
1. Remove the dust cap (A).
Figure 5.170: Idler Roller
2. Remove nut (A).
3. Use a hammer to tap the bearing assembly (B) until it
slides off the shaft.
MAINTENANCE AND SERVICING
