214683 531 Revision A
Installing Reel Drive Sprocket
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.

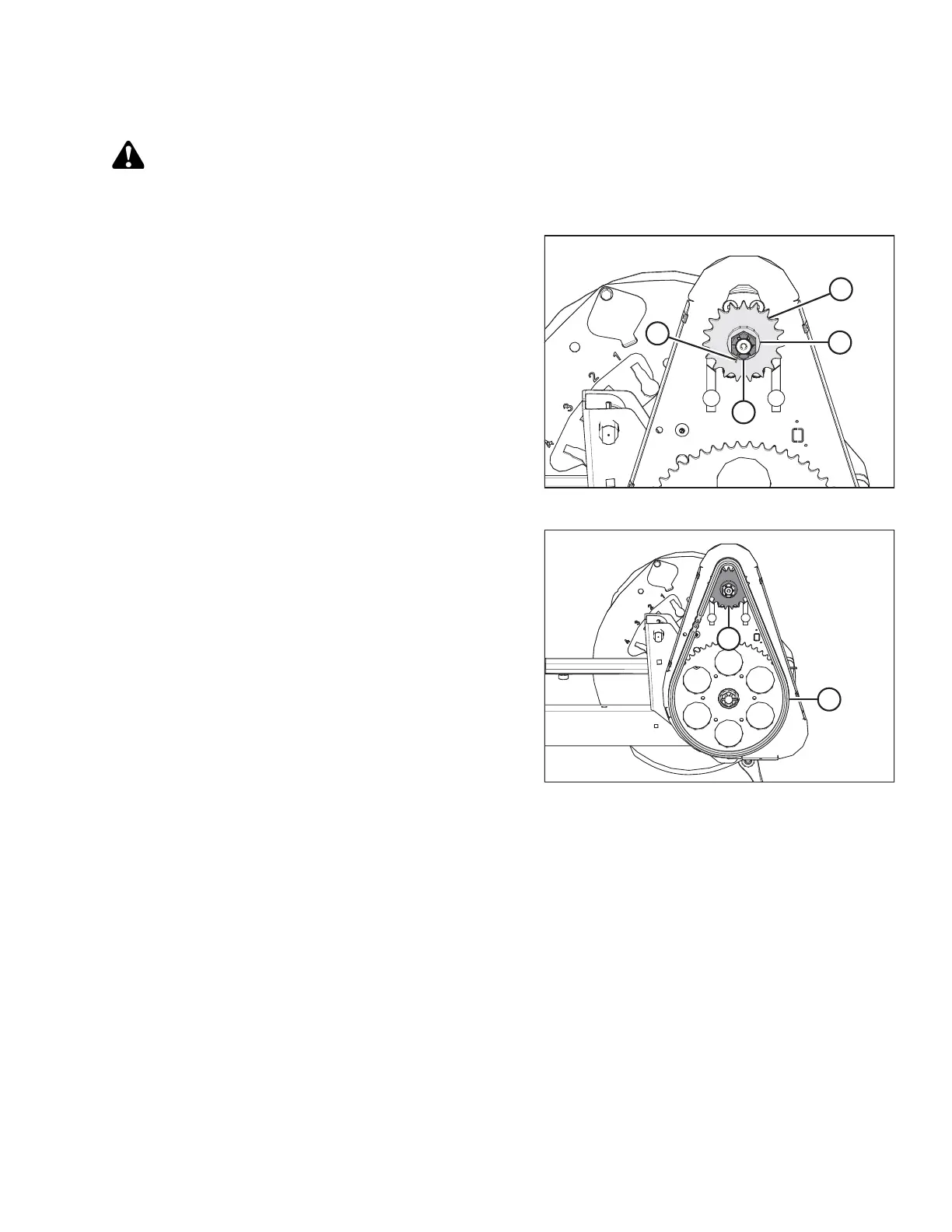

Figure 5.285: Reel Drive
1. Align the keyway in sprocket (D) with the key on the
motor shaft, and slide the sprocket onto the shaft.
Secure with flat washer (C) and slotted nut (B).
2. Torque slotted nut (B) to 54 Nm (40 lbf∙ft).
3. Install cotter pin (A). If necessary, tighten the slotted
nut (B) to the next slot to install the cotter pin.
Figure 5.286: Reel Drive
4. Install the drive chain (A) onto the drive sprocket (B).
5. Tighten the drive chain. Refer to Tightening Reel Drive
Chain, page 528.
6. Replace reel drive cover. Refer to Installing Reel Drive
Cover, page 527.
MAINTENANCE AND SERVICING
