MacDon FlexDraper FD130 - Converting from Ultra Narrow Configuration or Narrow Configuration to Medium Configuration

214683 310 Revision A
To convert to Ultra Narrow configuration from Medium or Wide configuration, refer to 4.1.8 Converting from
Medium Configuration or Wide Configuration to Ultra Narrow Configuration, page 323.
To convert to Ultra Narrow configuration from Narrow configuration, refer to 4.1.9 Converting from Narrow
Configuration to Ultra Narrow Configuration, page 327.
4.1.1 Converting from Ultra Narrow Configuration or Narrow Configuration
to Medium Configuration
Two kits of MD #287031
45
are required to convert to this configuration.
1017236
1
2
A
A
A
A
3
B
B

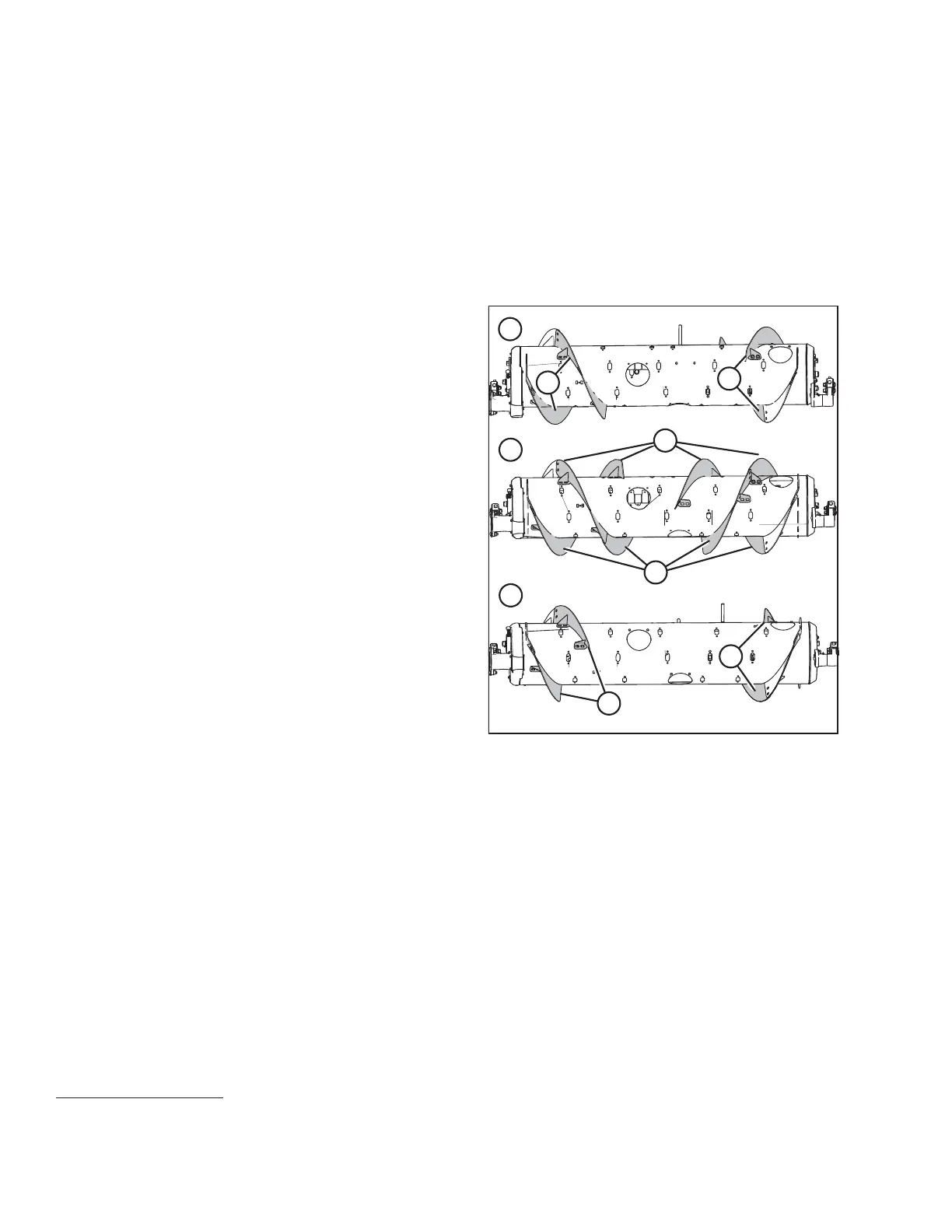

Figure 4.5: Auger Configurations (Rear View)
1 - Narrow Configuration 2 - Ultra Narrow Configuration
3 - Medium Configuration
Ultra Narrow, Narrow, and Medium auger configurations are
shown at right. When converting from Ultra Narrow
configuration or Narrow configuration to Medium
configuration, you will need to replace the existing
flightings (A) with flightings (B).
1. To improve access and ease installation, remove float module from combine. For instructions, refer to 4 Header
Attachment/Detachment, page 307.
NOTE:
Some parts have been removed from the illustrations for clarity.
HEADER ATTACHMENT/DETACHMENT
45. MD #287031 contains wear-resistant flightings, and is available only through MacDon Parts.
