214683 307 Revision A
4 Header Attachment/Detachment
This chapter includes instructions for setting up, attaching, and detaching the header.
Combine Refer to
Case IH 7010, 8010, 7120, 8120, 9120, 5130, 6130,
7130, 7230, 8230, 9230
4.3 Case IH Combines, page 332
Gleaner R and S Series, Challenger 660, 670, 680B,
540C, 560C, Massey Ferguson 9690, 9790, 9895,
9520, 9540, 9560
4.4 AGCO (Challenger, Gleaner, and Massey
Ferguson) Combines, page 340
John Deere 60, 70, S, and T Series 4.5 John Deere Combines, page 348
CLAAS 500, 700 (R Series) 4.6 CLAAS Combines, page 355
New Holland CR, CX 4.7 New Holland Combines, page 363
NOTE:
Ensure the applicable functions (e.g., Automatic Header Height Control [AHHC], draper header option, hydraulic
center-link option, hydraulic reel drive) are enabled on the combine and the combine computer. Failure to do so
may result in improper header operation.
4.1 Float Module Feed Auger Configurations
The FM100 feed auger can be configured to suit various crop conditions; there are four configurations available.
Check the conversion instructions to determine if additional auger flighting kits are required.

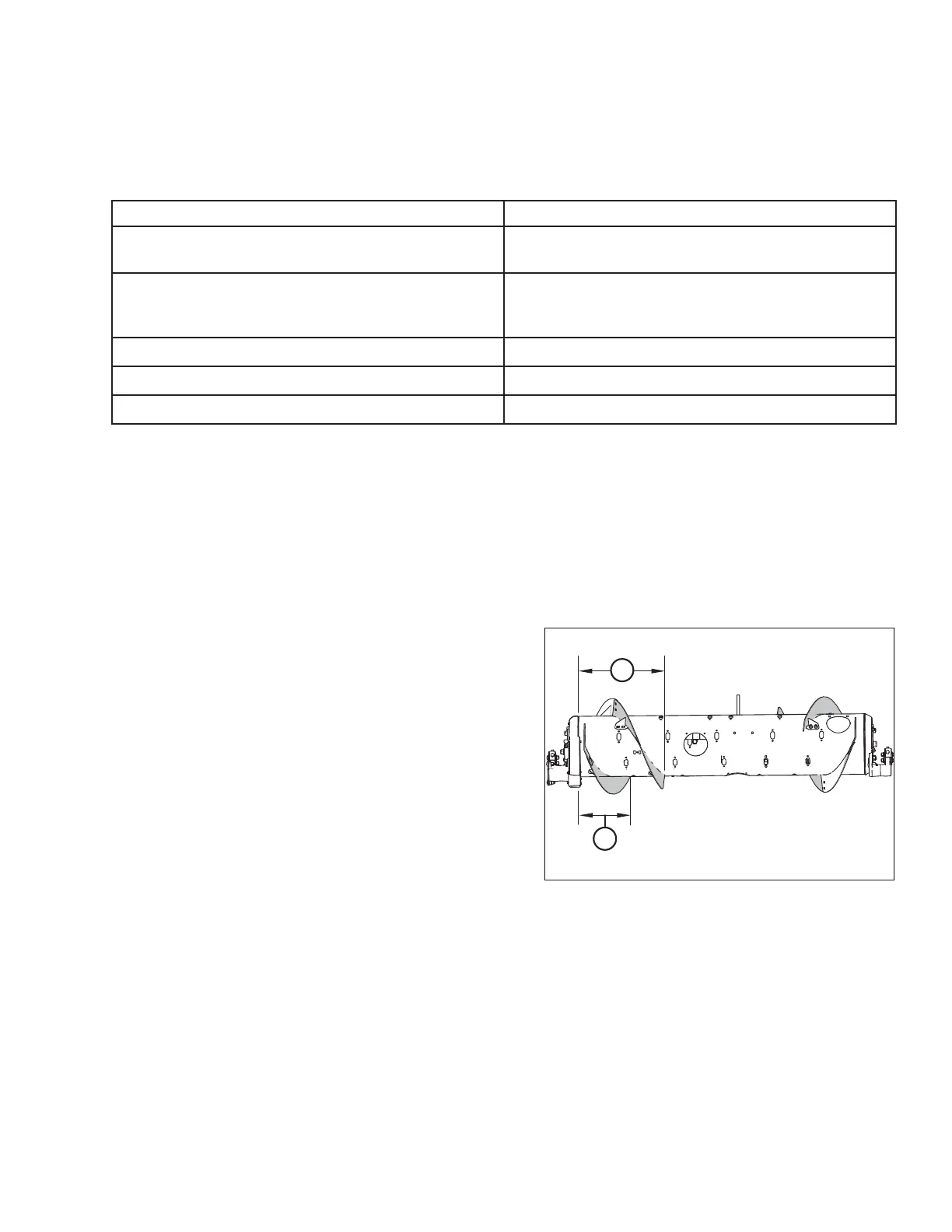

Figure 4.1: Narrow Configuration (Rear View)
A - 514 mm (20-1/4 in.) B - 356 mm (14 in.)
NOTE:
Dimensions are the same for both ends of the
auger. They should be within 15 mm (9/16 in.) of
the numbers given.
Narrow configuration is a standard configuration for the
following combines:
• Gleaner (R6/75, R6/76, S6/77, S6/7/88, S96/7/8)
• New Holland CR (920/940/960, 9020/40/60/65,
6090/7090, 8060/8070/8080)
