214683 384 Revision A
5.2 Maintenance Specifications
5.2.1 Installing a Sealed Bearing

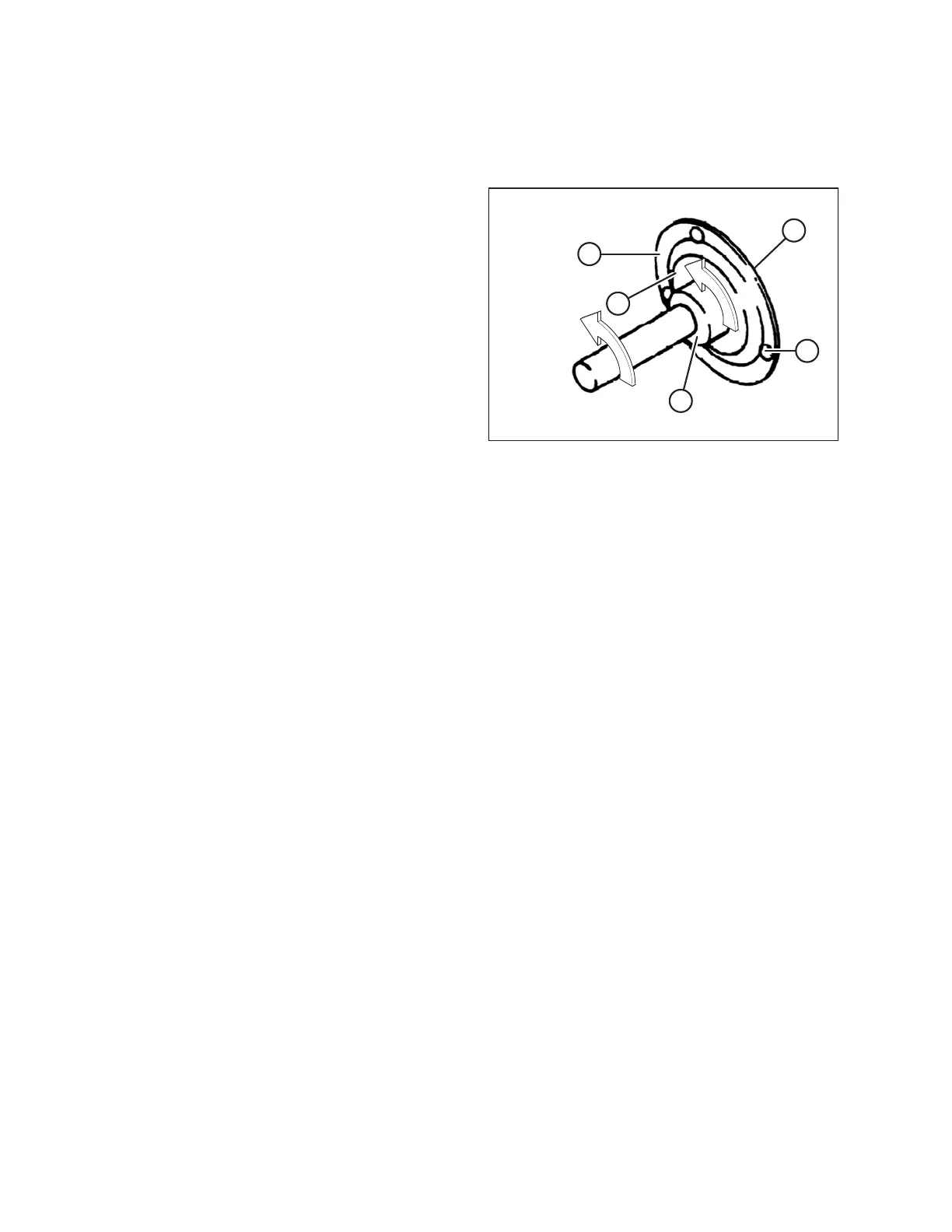

Figure 5.1: Sealed Bearing
1. Clean the shaft and apply a rust-preventive coating.
2. Install flangette (A), bearing (B), and second
flangette (C), and then lock the collar (D).
NOTE:
The locking cam is only on one side of the bearing.
3. Install flangette bolts (E). Do NOT tighten.
4. Position the shaft correctly, and lock the lock collar with
a punch. Lock the collar in the same direction the shaft
rotates, and tighten the setscrew in the collar.
5. Tighten flangette bolts (E).
6. Loosen the flangette bolts on the mating bearing
(one turn) and then retighten. This will allow the bearing
to properly line up.
MAINTENANCE AND SERVICING
