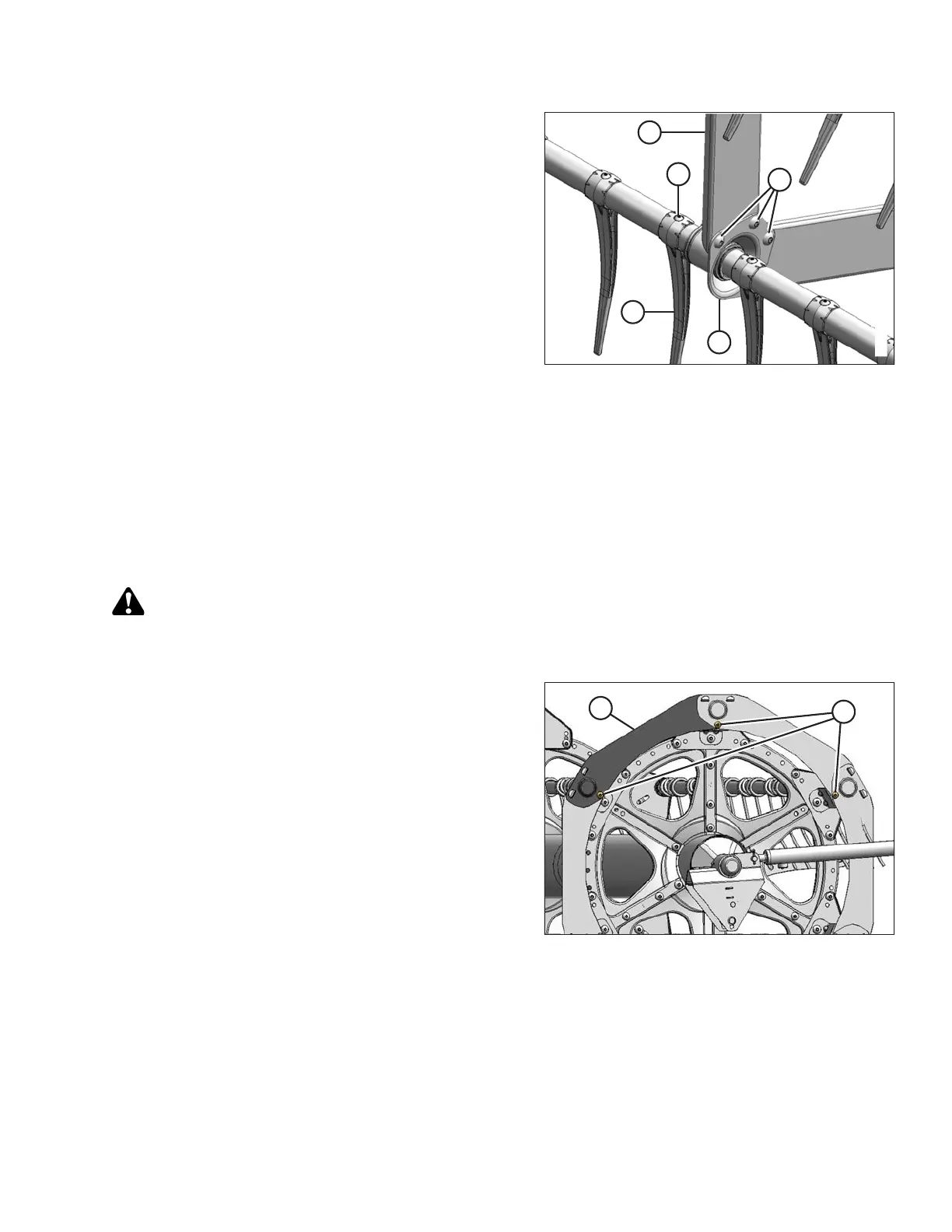

Figure 5.267: Opposite Support
28. Reattach the channels (C) to the two left-facing
supports (A) on each reel with screws (B) and nuts.
Torque screws to 43 Nm (32 lbf∙ft).
29. Using screws (E), reinstall any fingers (D) that were
previously removed. Refer to Installing Plastic Fingers,
page 510.
5.15.6 Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for
damage and loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but
it’s necessary to replace severely damaged components.
You can attach reel endshields to either end of the reel.
Replacing Reel Endshields
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
Figure 5.268: Reel Endshields
1. Lower the header and reel.
2. Shut down the engine, and remove the key from the
ignition.
3. Rotate the reel manually until the reel endshield (A)
requiring replacement is accessible.
4. Remove three bolts (B).
MAINTENANCE AND SERVICING
