MacDon FlexDraper FD130 - Header In-Field Settings

214683 196 Revision A
1018467
A

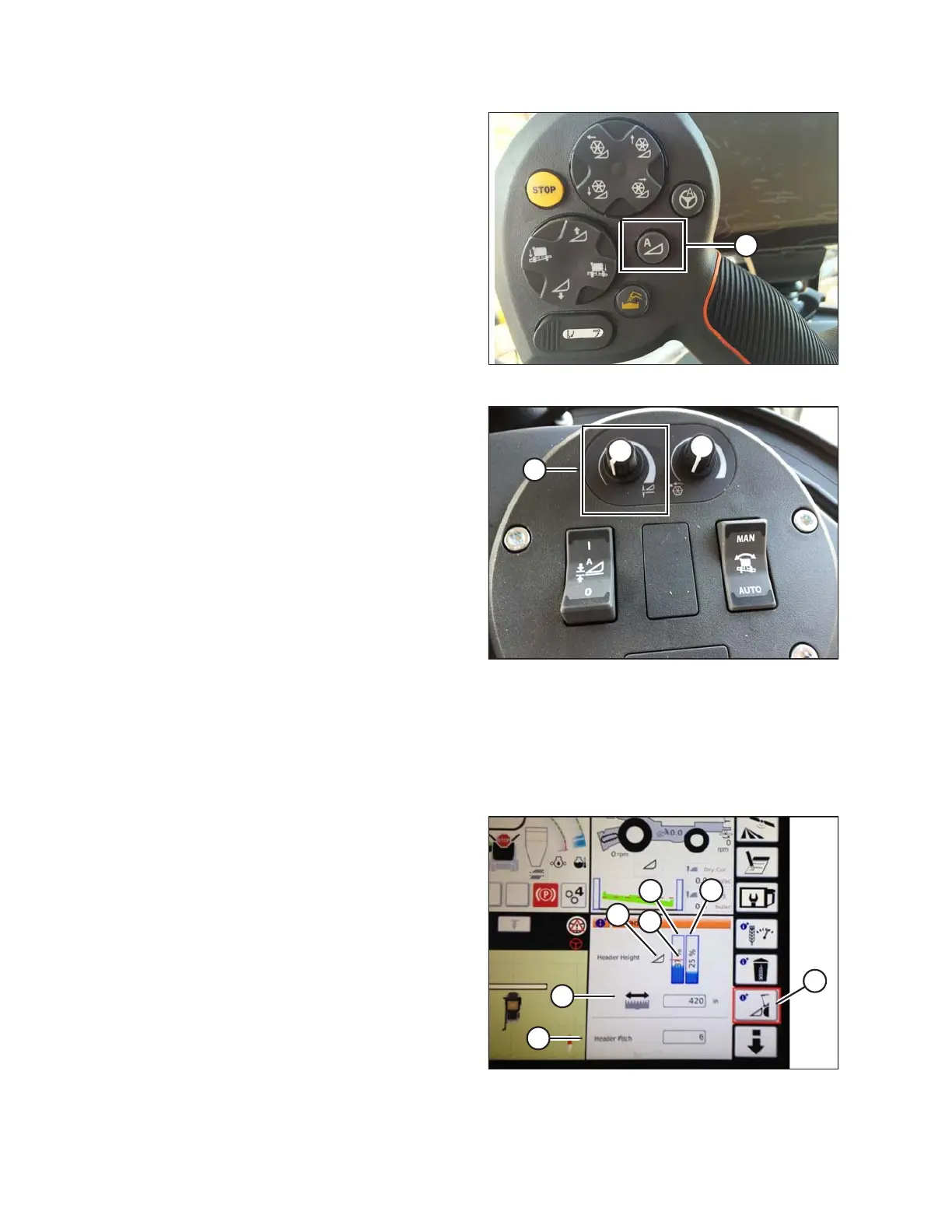

Figure 3.308: AHHC on Control Handle
3. Press the AHHC control switch (A) on the control
handle to engage the AHHC. The header moves to the
current setpoint position.
1018469
A
Figure 3.309: Header Control Cluster
4. Use the HEADER HEIGHT SETPOINT control dial (A)
as necessary to fine-tune the position.
Header In-Field Settings
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
1018435
A
B
C
D
E
F
G
Figure 3.310: Header Groups
1. To view header group settings, touch the HEADER
icon (A) on the right side of the home screen.
2. The following information is displayed:
• CURRENT POSITION of the header (B).
• SETPOINT cut-off position (C) (indicated by red line)
• HEADER symbol (D) – touch to adjust the setpoint
cut-off position using the scroll wheel on the right
side of the Tyton terminal.
• CUT HEIGHT for the AHHC (E) – fine-tune with the
header height setpoint control dial on the header
control cluster.
• HEADER WORKING WIDTH (F)
OPERATION
