6.5 Crop Delivery
6.5.1 FM100 Dual Auto Header Height Control (AHHC) Sensor Kit

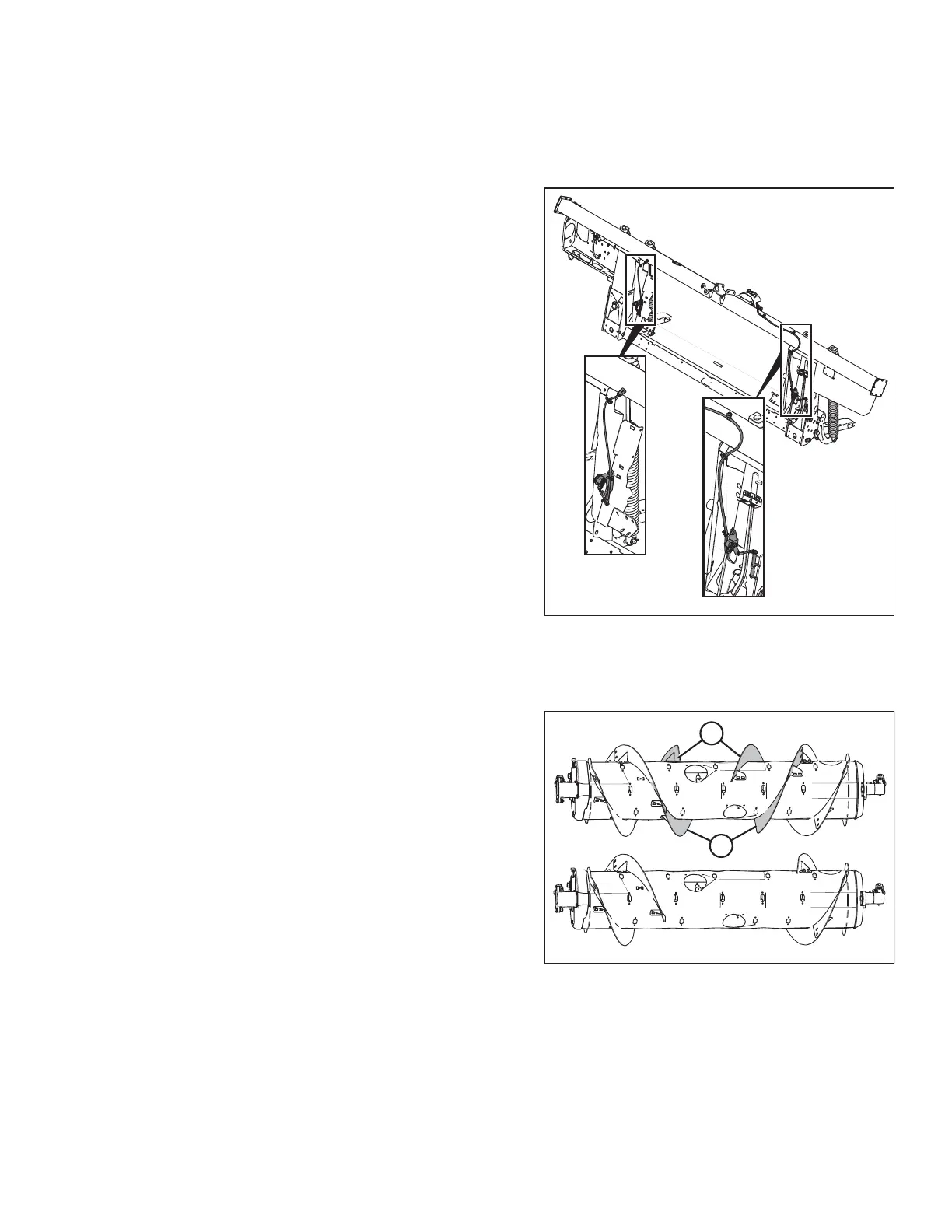

Figure 6.17: Dual AHHC Sensors
This kit adds two sensors to the float linkage, adding
automatic lateral tilt compensation for the header. When
installed, the combine will automatically tilt the feeder house
from side to side to follow uneven terrain during operation.
Installation instructions are included in the kit.
NOTE:
Not recommended for extremely hilly conditions.
MD #B6211
6.5.2 FM100 Feed Auger Flighting
Figure 6.18: FM100 Feed Auger Flighting
Auger flighting (A) on the FM100 can be configured to
specific combines and crop conditions. Refer to 4.1 Float
Module Feed Auger Configurations, page 307 for
combine/crop specific configurations.
