MacDon FlexDraper FD130 - Replacing Feed Draper Drive Roller Bearing

214683 473 Revision A
Replacing Feed Draper Drive Roller Bearing
Removing Feed Draper Drive Roller Bearing
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, always stop engine
and remove key before leaving the operator’s seat, and always engage safety props before going under
the machine for any reason.
1. Raise header and reel to full height, stop the engine,
and remove key from the ignition.
2. Engage reel safety props and header safety props.
1017085
A
B

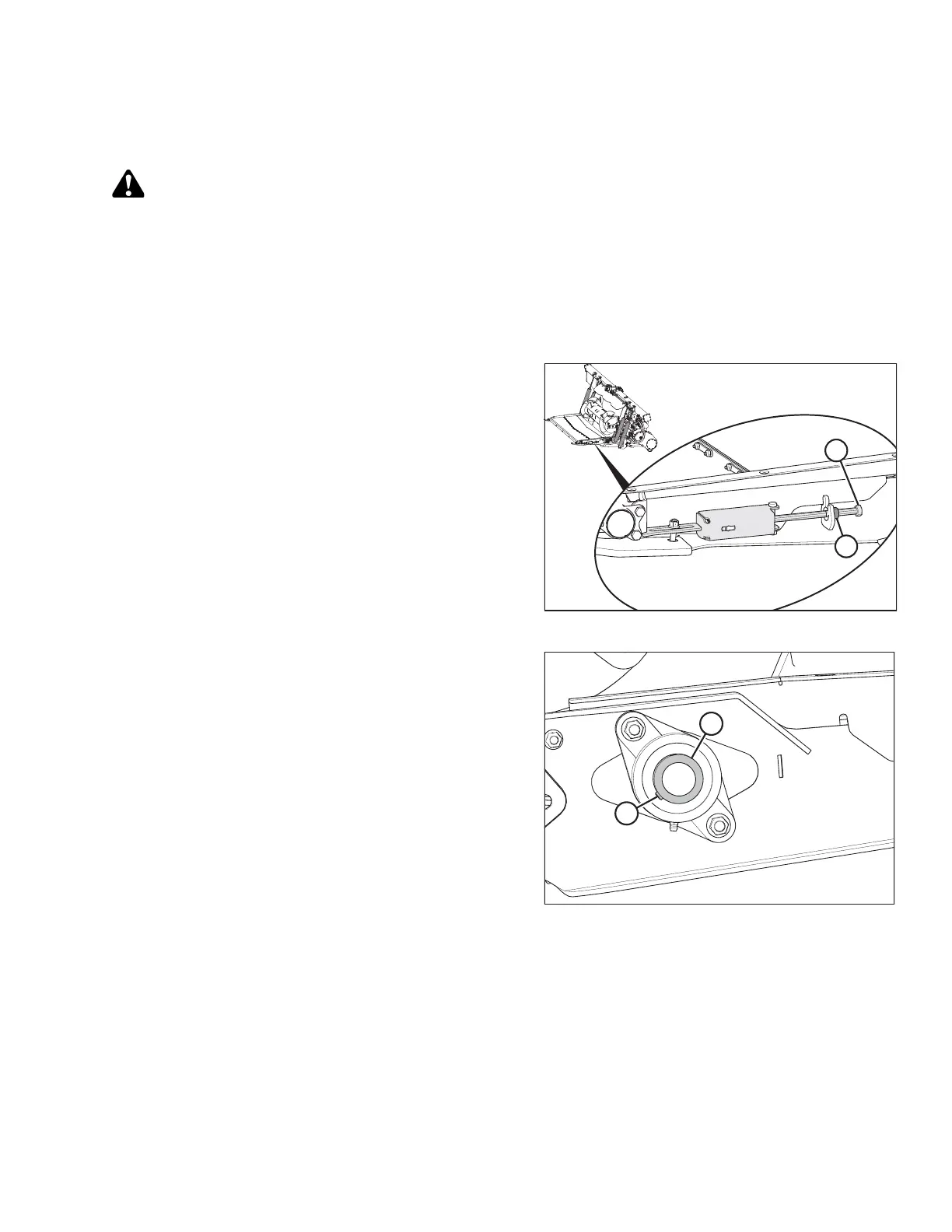

Figure 5.157: Feed Draper Tensioner
3. Loosen jam nut (A) and turn bolt (B) counterclockwise
to release the draper tension. Repeat at the
opposite side.
1021042
A
B
Figure 5.158: Feed Draper Drive Roller Bearing
4. Loosen the setscrew (B) on the bearing lock (A).
5. Using a hammer and punch, tap the bearing lock (A) in
the direction opposite to the auger rotation to release
the lock.
