MacDon FlexDraper FD130 - John Deere S and T Series Combines; Checking Voltage Range from the Combine Cab (John Deere S and T Series)

214683 212 Revision A
3.8.11 John Deere S and T Series Combines
Checking Voltage Range from the Combine Cab (John Deere S and T Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
CAUTION
Check to be sure all bystanders have cleared the area.
1. Position the header 150 mm (6 in.) above the ground,
and unlock the float.

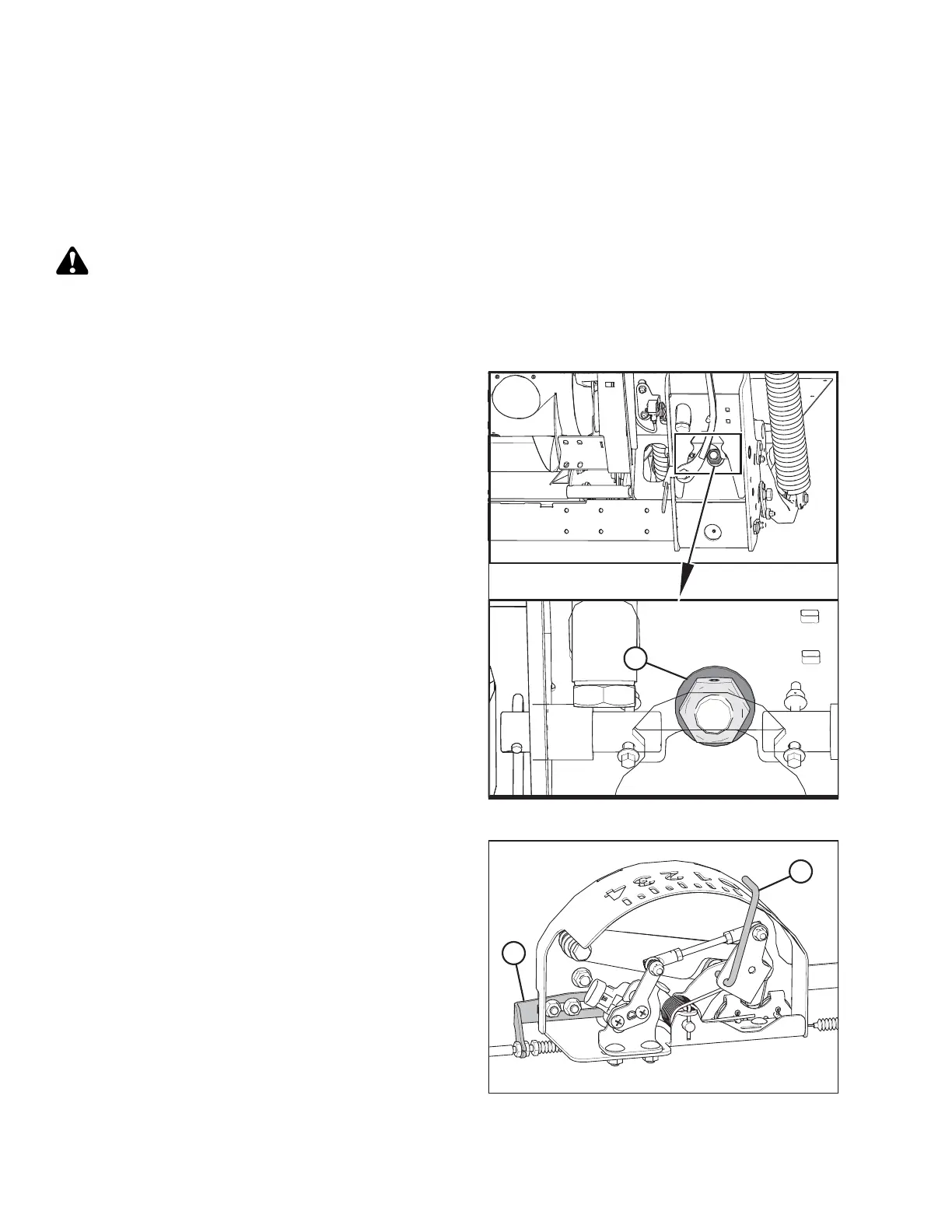

1013274
A
Figure 3.339: Float Lock
2. Check that float lock linkage is on down stops
(washer [A] cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
1015833
A
B
Figure 3.340: Float Indicator Box
3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on 0.
OPERATION
