MacDon FlexDraper FD130 - Page 237

214683 213 Revision A
1003766
A

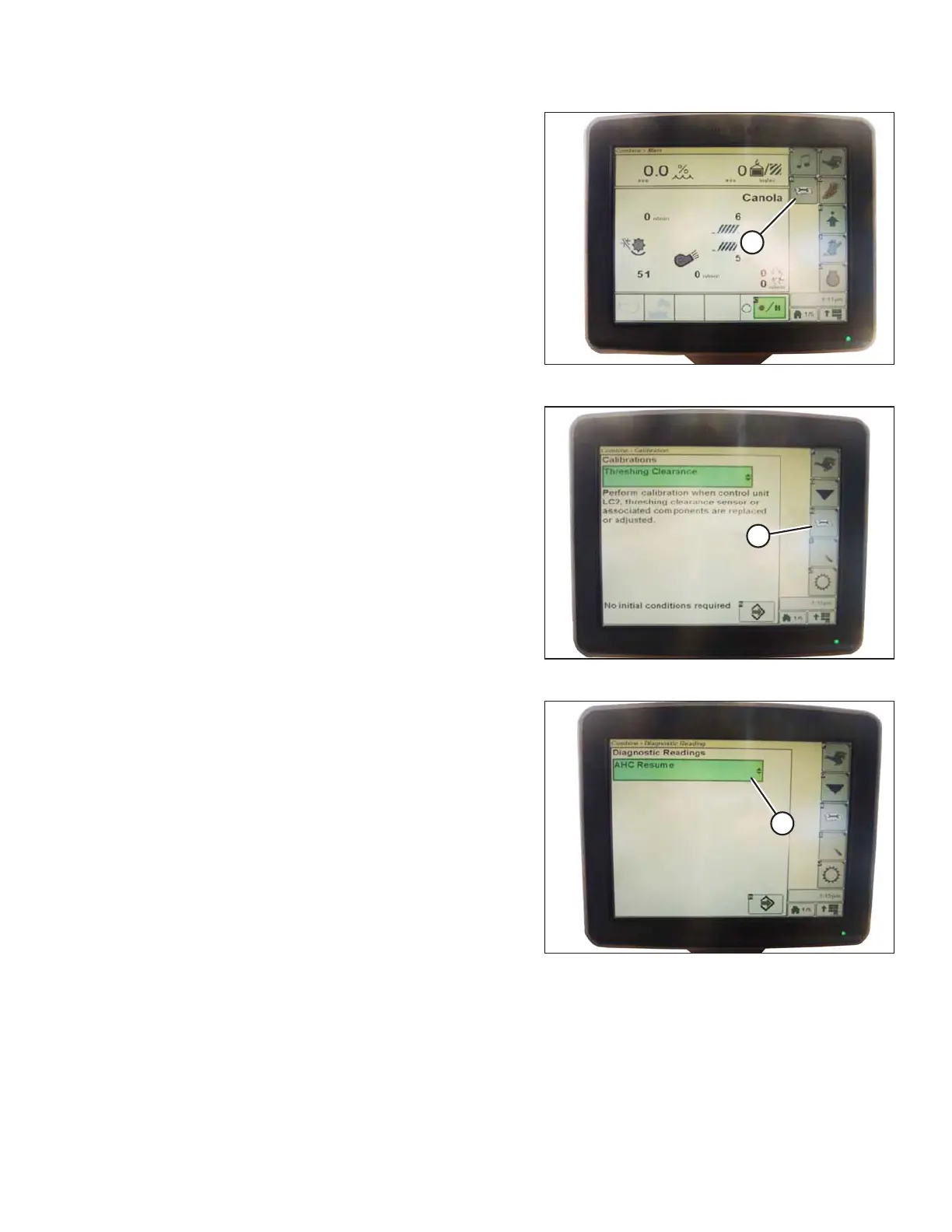

Figure 3.341: John Deere Combine Display
4. Press the CALIBRATION icon (A) on the main screen of
the monitor. The CALIBRATION screen appears.
1003767
A
Figure 3.342: John Deere Combine Display
5. Press the DIAGNOSTIC READINGS icon (A) on the
CALIBRATION screen. The DIAGNOSTIC READINGS
screen appears. This screen provides access to
calibrations, header options, and diagnostic
information.
1003768
A
Figure 3.343: John Deere Combine Display
6. Select AHHC RESUME (A) and a list of calibration
options appears.
OPERATION
