6.5.5 Draper Deflector (Wide)
1004865

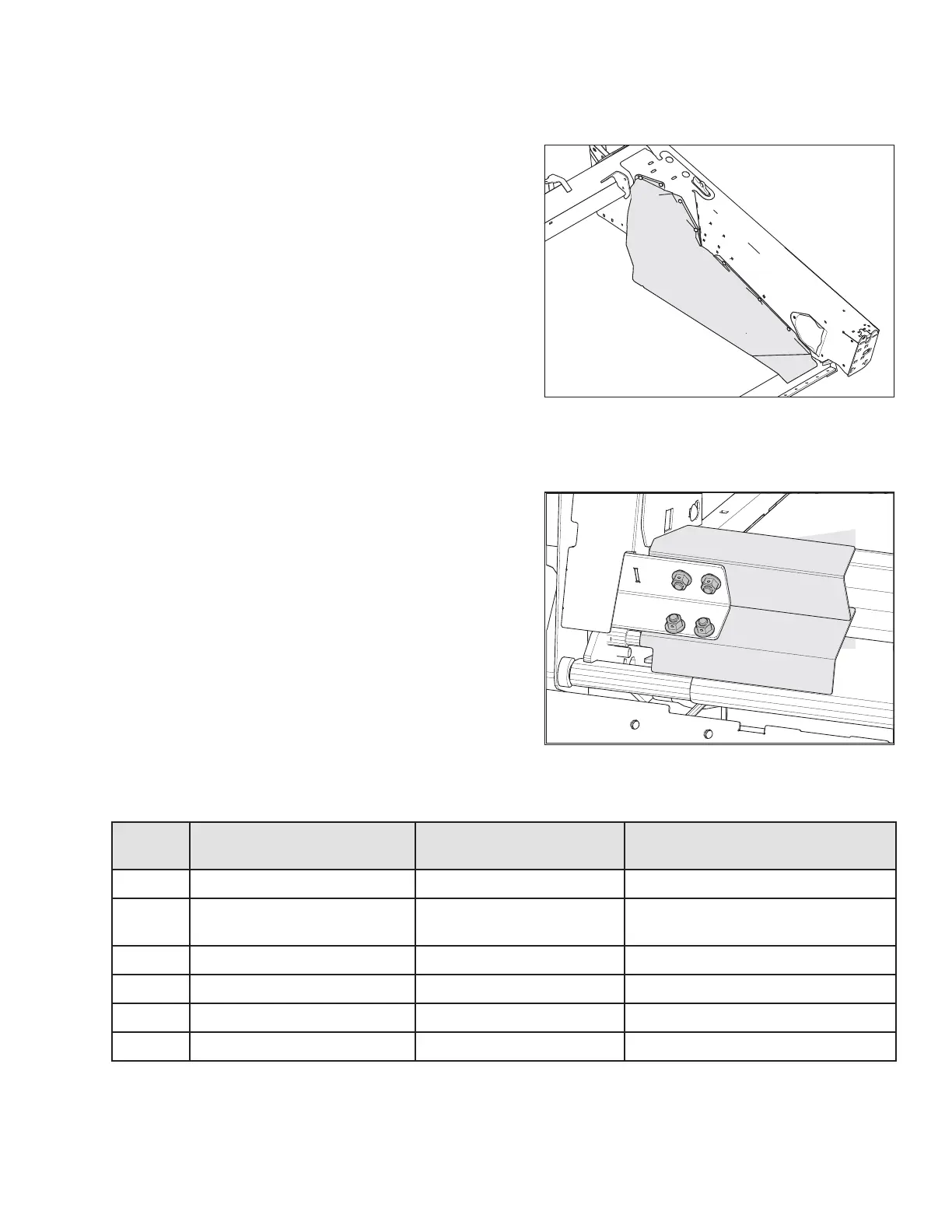

Figure 6.21: Draper Deflector (Wide)
Wide metal draper deflectors attach to the inboard side of
the endsheets to prevent material from falling through the
gap between the endsheet and the draper.
IMPORTANT:
The wide draper deflector is NOT compatible with the Upper
Cross Auger option.
6.5.6 Stripper Bars
1012739
Figure 6.22: Stripper Bar
Stripper bars improve feeding in certain crops such as rice.
They are NOT recommended in cereal crops.
Select the stripper bar kit based on combine feeder house
width. Refer to Table 6.1, page 557.
NOTE:
MD #B6043 is for John Deere S6X0 Series only.
Table 6.1 Stripper Bar Configurations and Recommendations
Bundle
(MD #)
Stripper Bar Length
Opening Width
(Installed on FM100)
Recommended Feeder
House Width
B6042
265 mm (10-1/2 in.) 1317 mm (52 in.) 1250–1350 mm (49– 65 in.)
B6043
265 mm (10-1/2 in.)
(with cutout)
1317 mm (52 in.) For John Deere S6X0 Series only
B6044
325 mm (13 in.) 1197 mm (47 in.)
For specialty crops only
B6045 365 mm (14-1/2 in.) 1117 mm (44 in.) 1100 mm (43-1/2 in.) and below
B6046
403 mm (16 in.) 1041 mm (41 in.)
For specialty crops only
B6213
515 mm (20 in.) 817 mm (32 in.)
For specialty crops only
