MacDon FlexDraper FD130 - Operating Header (Gleaner S9 Series)

214683 195 Revision A
1018440
A

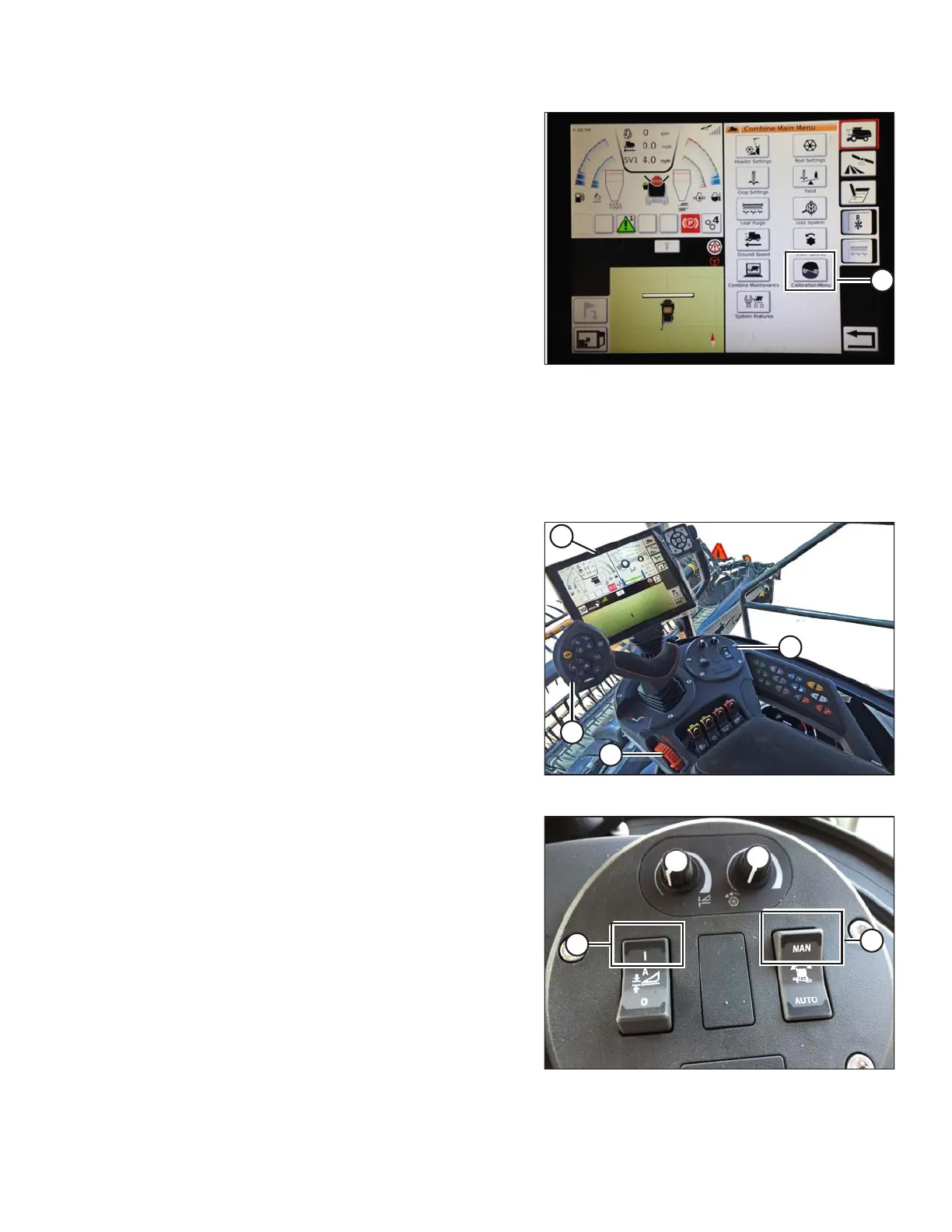

Figure 3.305: Direct Calibration Menu
NOTE:
Touch the CALIBRATION icon (A) on the COMBINE
MAIN MENU screen to open the CALIBRATION MENU
where you can choose from a variety of calibrations
including header and reel calibration.
Operating Header (Gleaner S9 Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
1018443
A
B
C
D
Figure 3.306: Gleaner S9
The following controls are used to operate the auto header
height control (AHHC) functions:
• Tyton Terminal (A)
• Control Handle (B)
• Throttle (C)
• Header Control Cluster (D)
Use the combine operator’s manual to familiarize yourself
with the controls.
1018468
A
B
Figure 3.307: Header Control Cluster
1. With the header running, set lateral tilt switch (A) to
MANUAL.
2. Engage the AHHC by pressing the switch (B) upward to
the I position.
OPERATION
