4.1.3 Converting from Medium Configuration or Wide Configuration to
Narrow Configuration
Two of either MD #287032 or B6400
47
are required to convert to this configuration. Extra hardware is included in
these kits. Be sure to use the correct hardware in the correct location to prevent damage and to maximize
performance.
1017317
1
2
A
A
A
A
3
B
B

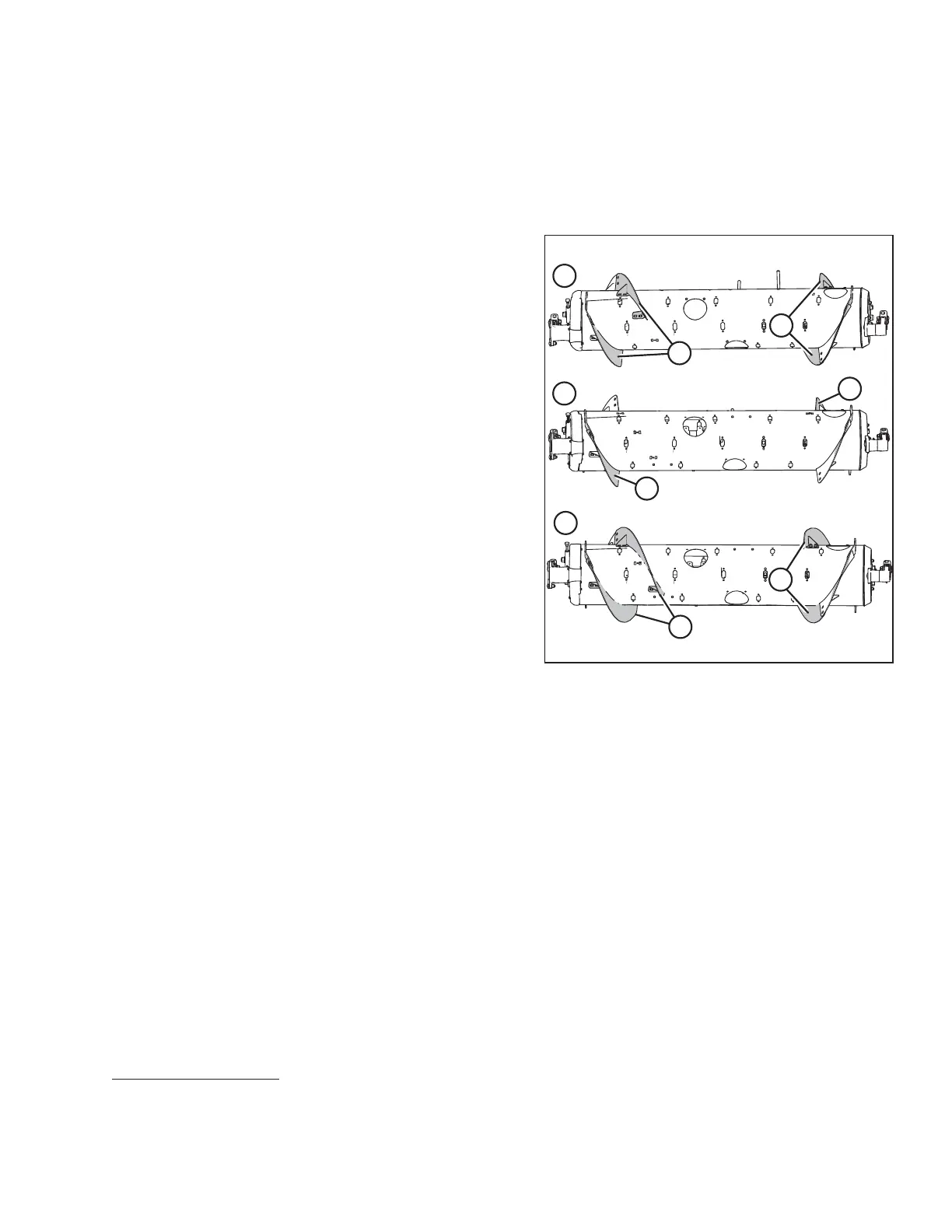

Figure 4.15: Auger Configurations (Rear View)
1 - Medium Configuration 2 - Wide Configuration
3 - Narrow Configuration
Medium, Wide, and Narrow auger configurations are shown
at right. When converting from Medium or Wide
configuration to Narrow configuration, you will need to
replace the existing flightings (A) with flightings (B).
NOTE:
The flighting should fit tight against the auger tube;
however, gaps are not uncommon. Crop material may
collect in this gap, but generally this will not affect
performance. If desired, silicone sealant may be used to fill
these gaps.
1. To improve access and ease installation, remove float module from combine. For instructions, refer to 4 Header
Attachment/Detachment, page 307.
NOTE:
Some parts have been removed from the illustrations for clarity.
HEADER ATTACHMENT/DETACHMENT
47. MD #287032 is available only through MacDon Parts. B6400 is available only through Whole Goods. Both kits
contain wear-resistant flightings.
