214683 486 Revision A
5.14.2 Installing Side Drapers
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.
NOTE:
Check the deck height before installing the drapers. Refer to 5.14.5 Adjusting Deck Height, page 492.

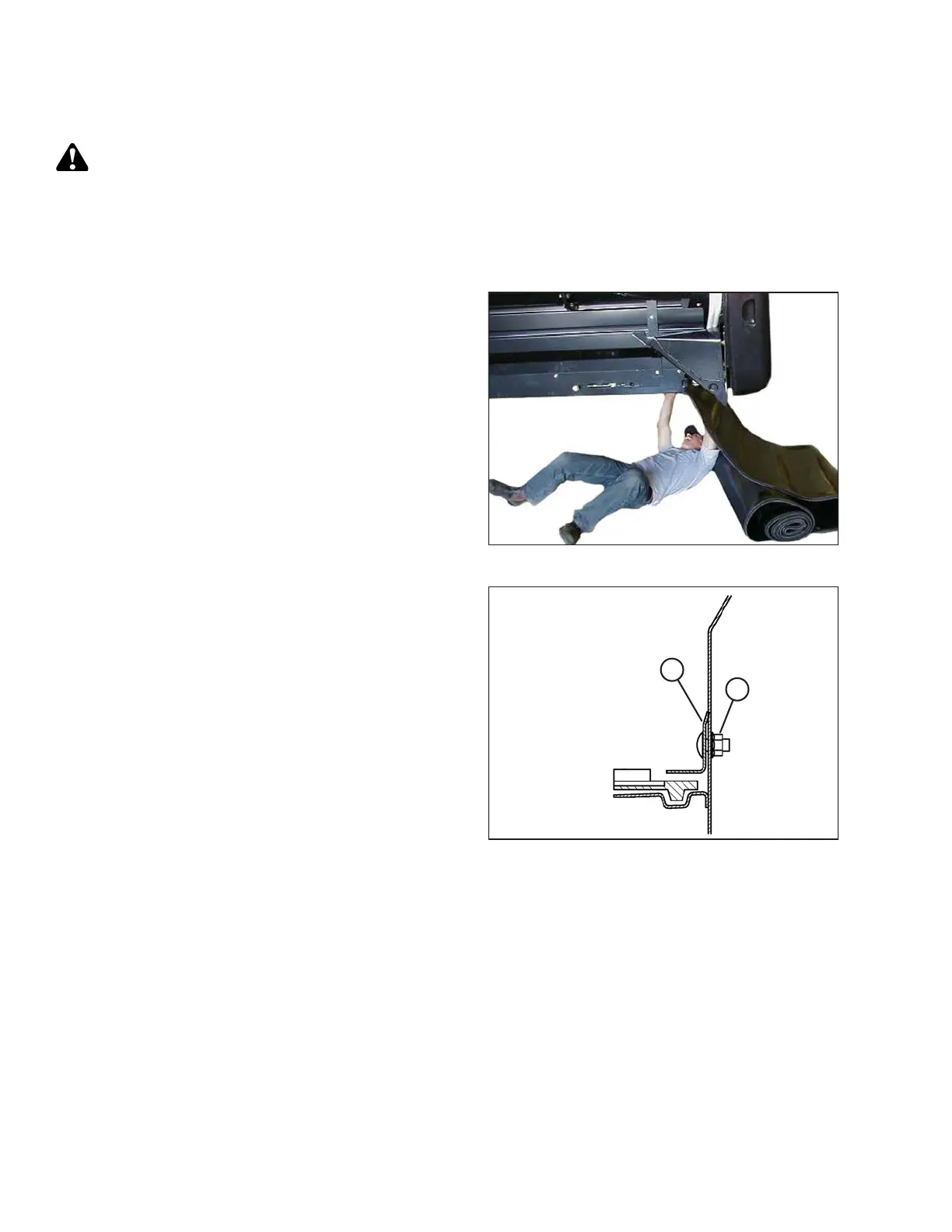

Figure 5.183: Installing Draper
1. Apply talc, baby powder, or talc/graphite lubricant mix to
the draper surface that forms the seal with the cutterbar
and to the underside of the draper guides.
2. Insert the draper into the deck at the outboard end
under the rollers. Pull the draper into the deck while
feeding it at the end.
3. Feed in the draper until it can be wrapped around the
drive roller.
4. Insert the opposite end of the draper into the deck over
the rollers. Pull the draper fully into the deck.
Figure 5.184: Draper Seal
5. Loosen the mounting bolts (B) on the rear deck
deflector (A) (this may help with draper installation).
MAINTENANCE AND SERVICING
