Adjusting the Manual Header Raise/Lower Rate (John Deere 70 Series)
The weight of the header will dictate the rate at which the header can be raised or lowered during operation.
To manually adjust the header raise/lower rate, do the following steps:
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.

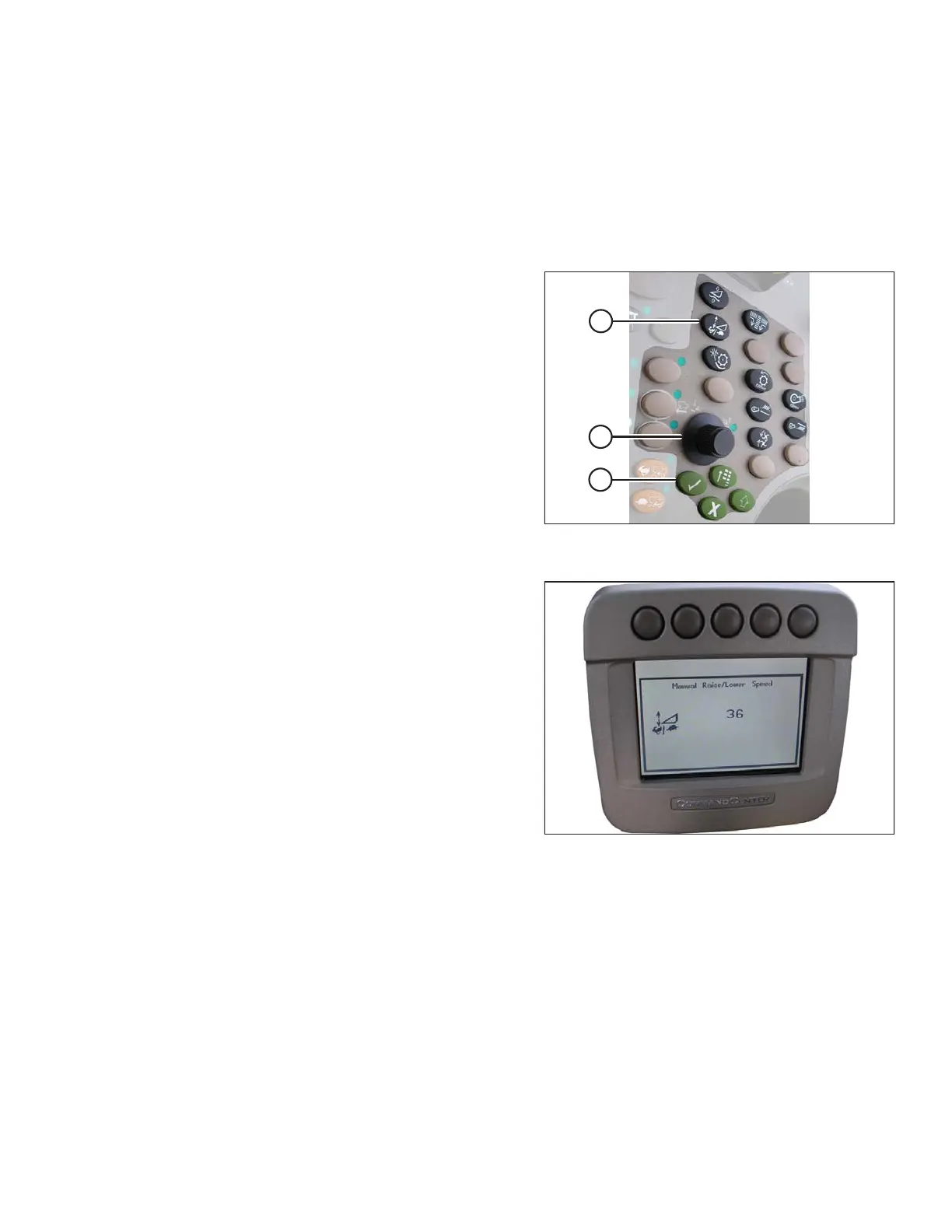

Figure 3.337: John Deere Combine Control
Console
1. Press button (A) and the current raise/lower rate setting
will appear on the monitor (the lower the reading, the
slower the rate).
2. Use scroll knob (B) to adjust the rate. The adjustment
will be saved automatically.
NOTE:
If the screen remains idle for a short period of time, it
will automatically return to the previous screen.
Pressing the check mark button (C) will also return the
monitor to the previous screen.
Figure 3.338: John Deere Combine Display
NOTE:
The numbers depicted on the displays in these
illustrations are for reference purposes only; they are not
intended to represent the specific settings for your
equipment.
