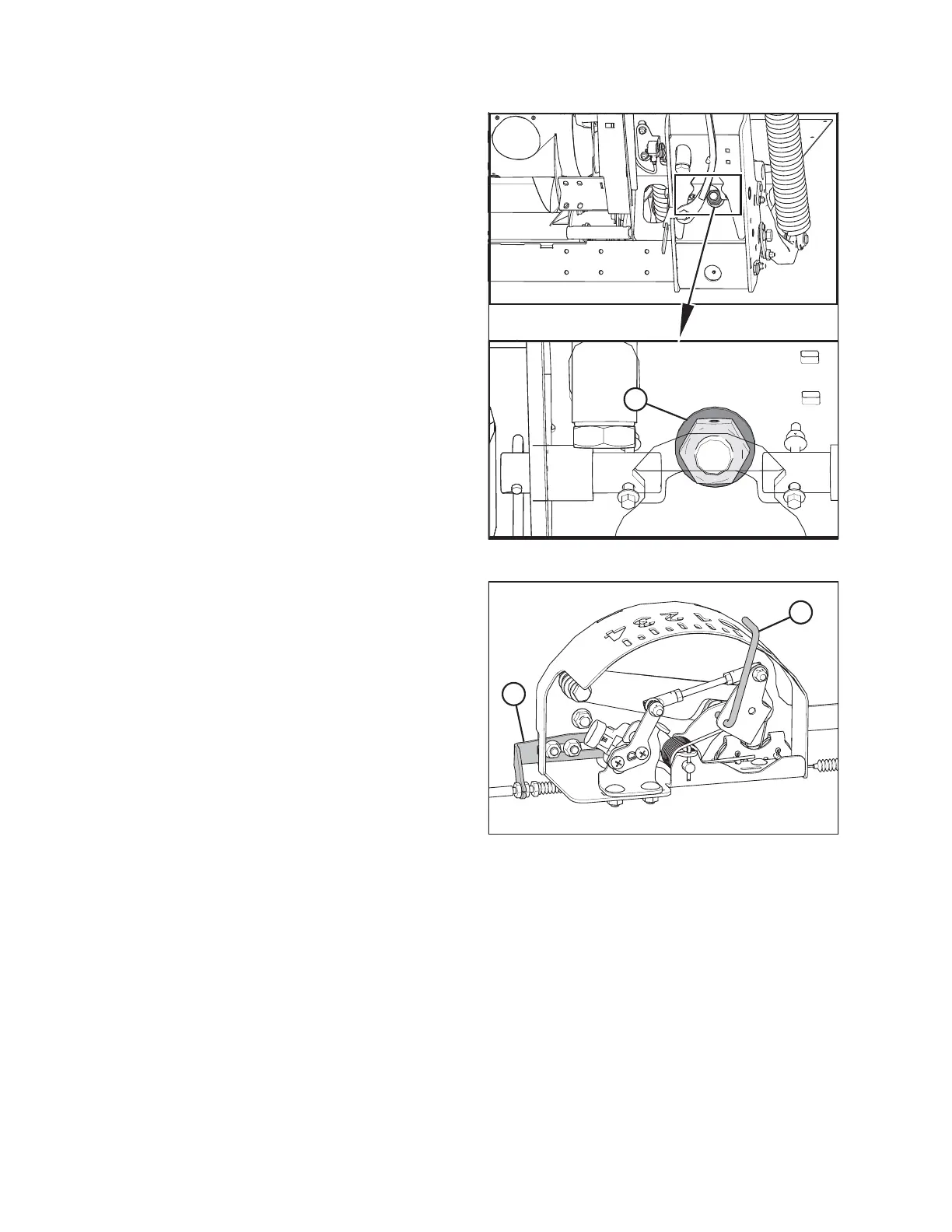

Figure 3.459: Float Lock
2. Check that float lock linkage is on down stops
(washer [A] cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
Figure 3.460: Float Indicator Box
3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on 0.
OPERATION
