214683 278 Revision A
Check the following conditions before starting the header calibration procedure:
• The header is attached to the combine.
• The combine is on level ground, with the header level to the ground.
• The header is on down stops, and the center-link is set to D.
• The engine is running.
• The combine is not moving.
• No faults have been received from the header height controller (HHC) module.
• Header/feeder is disengaged.
• Lateral float buttons are NOT pressed.
• ESC key is NOT pressed.
To calibrate the AHHC, follow these steps:

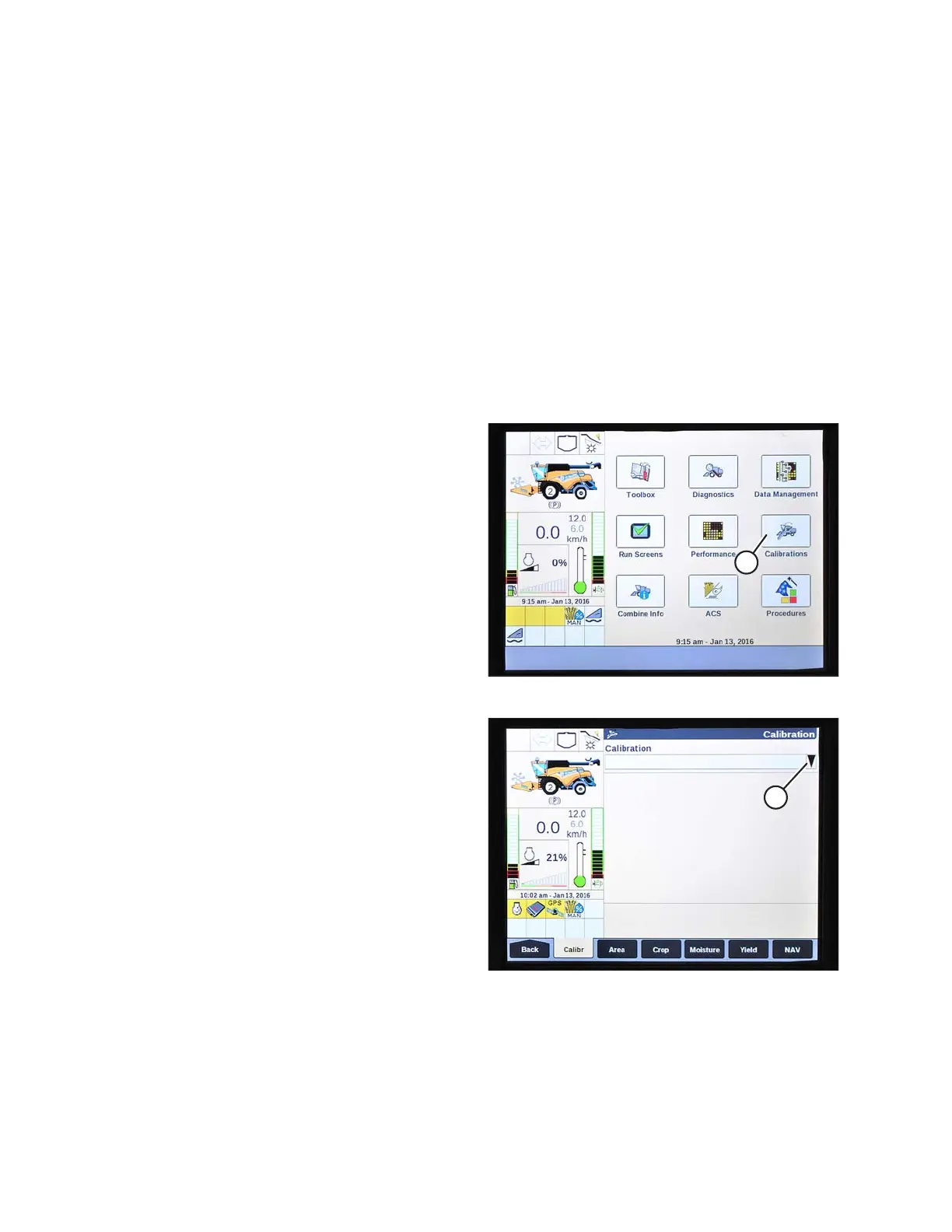

Figure 3.491: New Holland Combine Display
1. Select CALIBRATIONS (A) on the main screen. The
CALIBRATION screen displays.
Figure 3.492: New Holland Combine Display
2. Select the CALIBRATION drop-down arrow (A).
OPERATION
