214683 287 Revision A

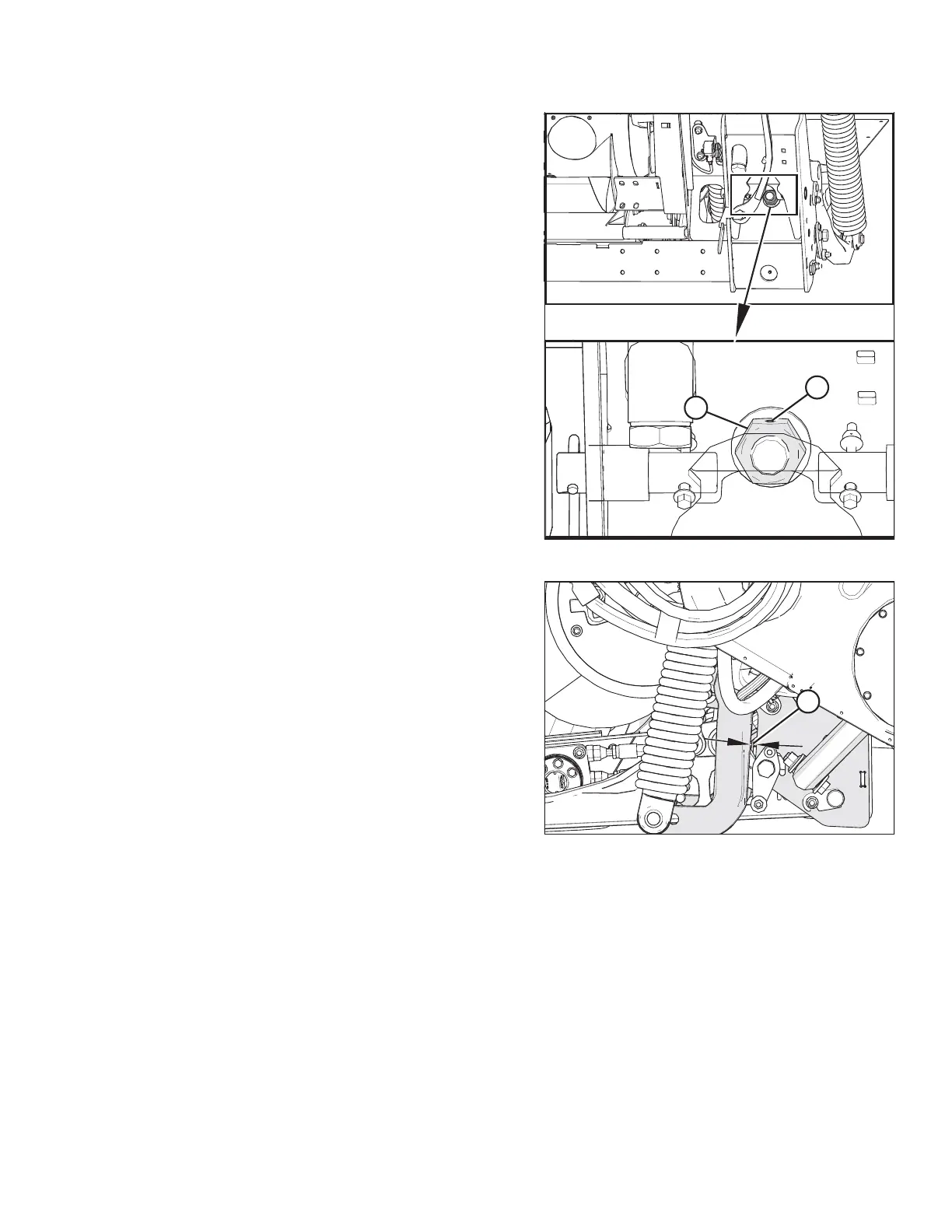

Figure 3.512: Float Lock
6. Adjust the header level by making small adjustments
(1/4–1/2 turn) to nut (A) on each float lock. Adjust each
side equally but in opposite directions as follows:
NOTE:
Setscrew (B) does not require loosening for
adjustments up to one-half turn of nut (A).
a. On low side of header, turn nut (A) clockwise to
raise header.
b. On high side of header, turn nut (A)
counterclockwise to lower header.
NOTE:
Adjustment of more than two turns in either direction
may adversely affect header float.
Figure 3.513: Bell Crank
NOTE:
Ensure a minimum clearance of 2–3 mm (1/8 in.) (A)
between the frame and the back of the bell crank lever.
NOTE:
Check the float after leveling header. Refer to Checking
and Adjusting Header Float, page 64.
OPERATION
