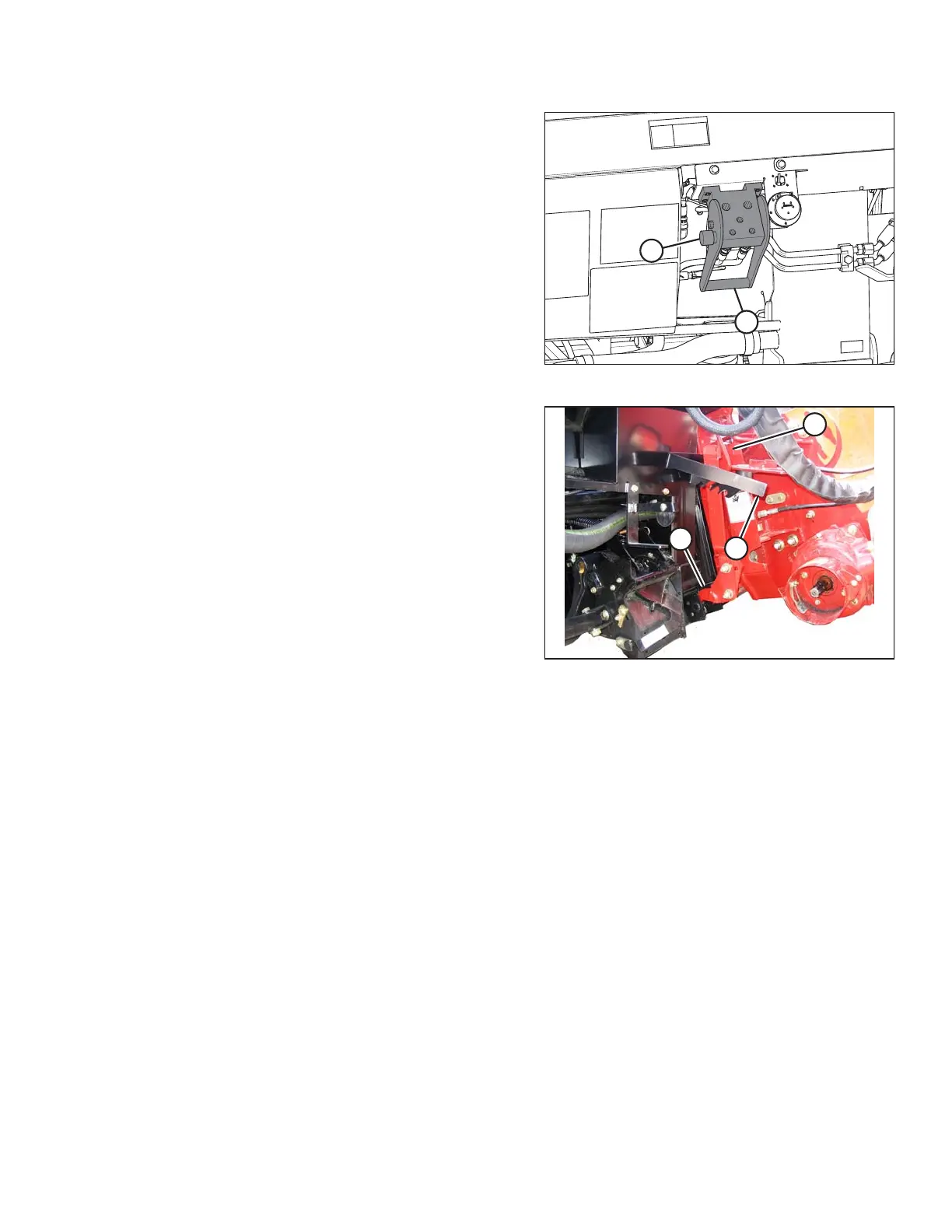

Figure 4.65: Float Module Receptacle
11. Push the handle (A) on the float module receptacle to
the closed position until the lock button (B) snaps out.
Close the cover.
Figure 4.66: Feeder House Locks
12. Lift the lever (A) and pull and lower the handle (B) to
disengage the feeder house/float module lock (C).
13. Lower the feeder house until it disengages the float
module support.
14. Back the combine away slowly from the float module.
