MacDon FlexDraper FD130 - Page 38

214683 14 Revision A
1003404

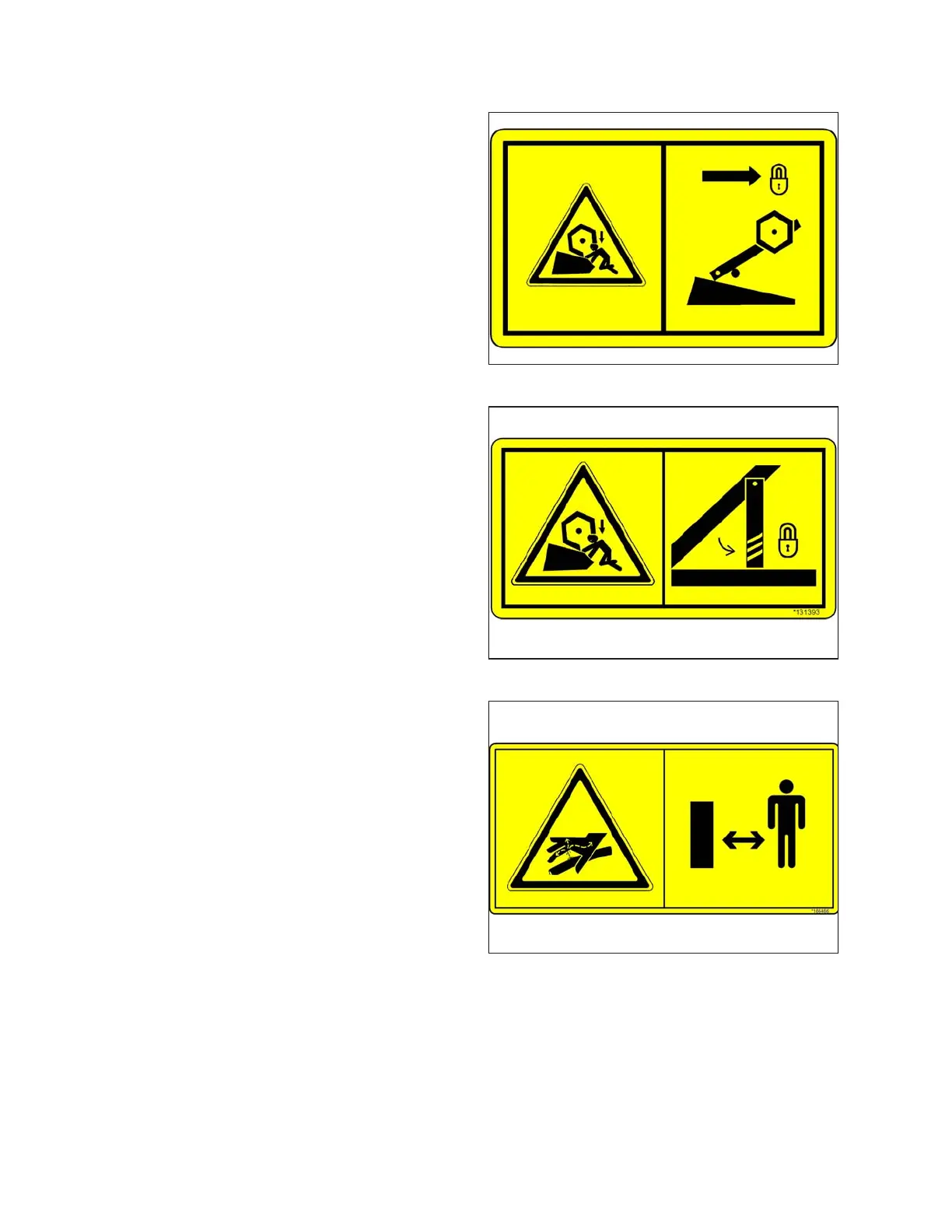

Figure 1.24: MD #131392
MD #131392
Crushing hazard
WARNING
• To avoid injury from fall of raised reel; fully raise reel, stop
the engine, remove the key, and engage safety prop on
each reel support arm before working on or under reel.
1001649
Figure 1.25: MD #131393
MD #131393
Reel hazard
WARNING
• To avoid injury from fall of raised reel; fully raise reel, stop
the engine, remove the key, and engage safety prop on
each reel support arm before working on or under reel.
1000706
Figure 1.26: MD #166466
MD #166466
High-pressure oil hazard
WARNING
• Do NOT go near leaks.
• High-pressure oil easily punctures skin, causing serious
injury, gangrene, or death.
• If injured, seek emergency medical help. Immediate
surgery is required to remove oil.
• Do NOT use finger or skin to check for leaks.
• Lower load or relieve hydraulic pressure before loosening
fittings.
SAFETY
