214683 364 Revision A

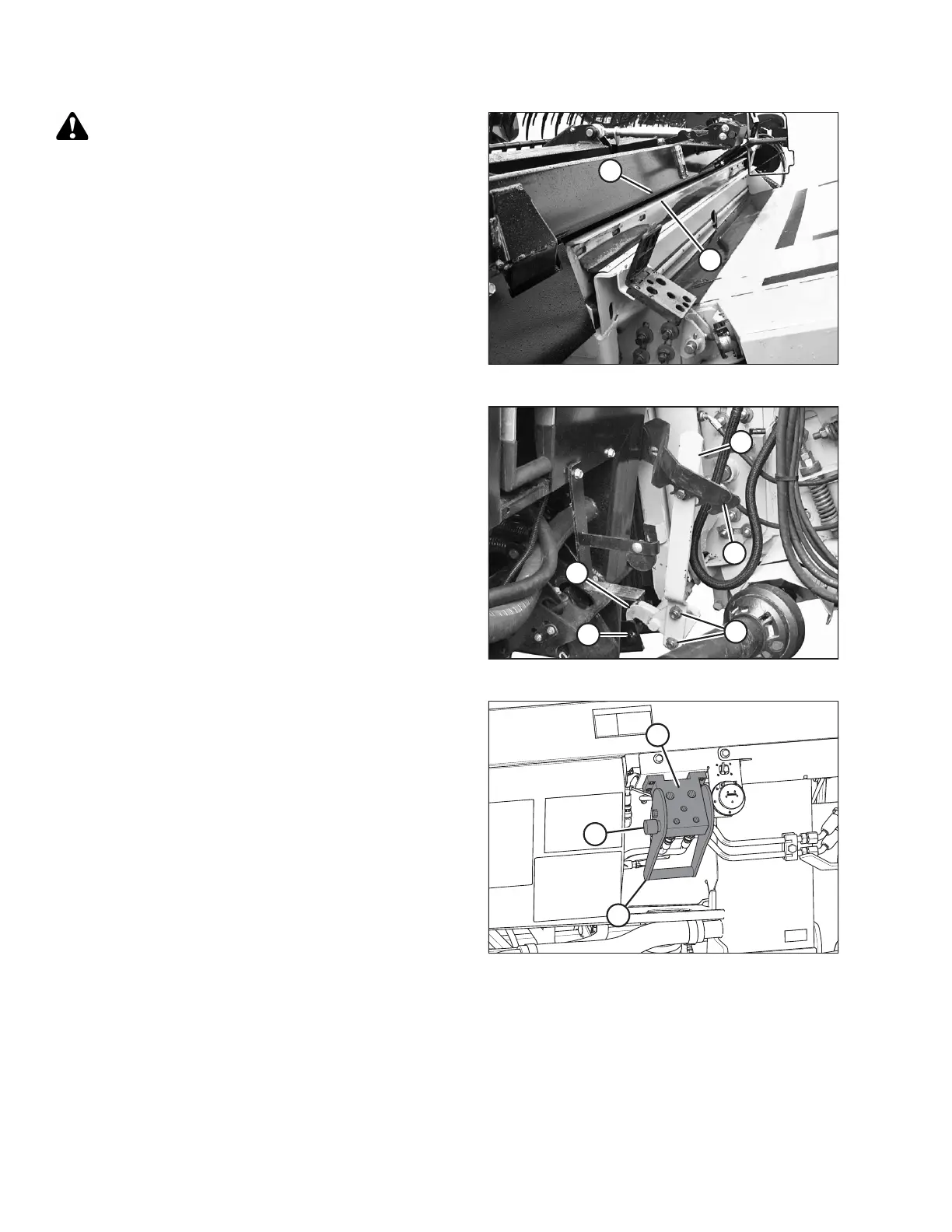

Figure 4.121: Header on Combine
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start the engine and slowly drive the combine up to the
float module until the feeder house saddle (A) is directly
under the float module top cross member (B).
3. Raise the feeder house slightly to lift the header,
ensuring the feeder saddle is properly engaged in the
float module frame.
4. Stop the engine and remove the key from the ignition.
Figure 4.122: Feeder House Locks
5. Lift lever (A) on the float module on the left side of the
feeder house, and push the handle (B) on the combine
to engage the locks (C) on both sides of the
feeder house.
6. Push down on the lever (A) so the slot in the lever
engages the handle and locks the handle in place.
7. If the lock does not fully engage the pin (D) on the float
module when the lever (A) and handle (B) are engaged,
loosen bolts (E) and adjust the lock (C). Retighten bolts.
Figure 4.123: Float Module Receptacle
8. Open the cover on the receptacle (A) located on the left
side of the float module.
9. Push in the lock button (B) and pull the handle (C) to the
full open position.
10. Clean the receptacle mating surfaces.
HEADER ATTACHMENT/DETACHMENT
