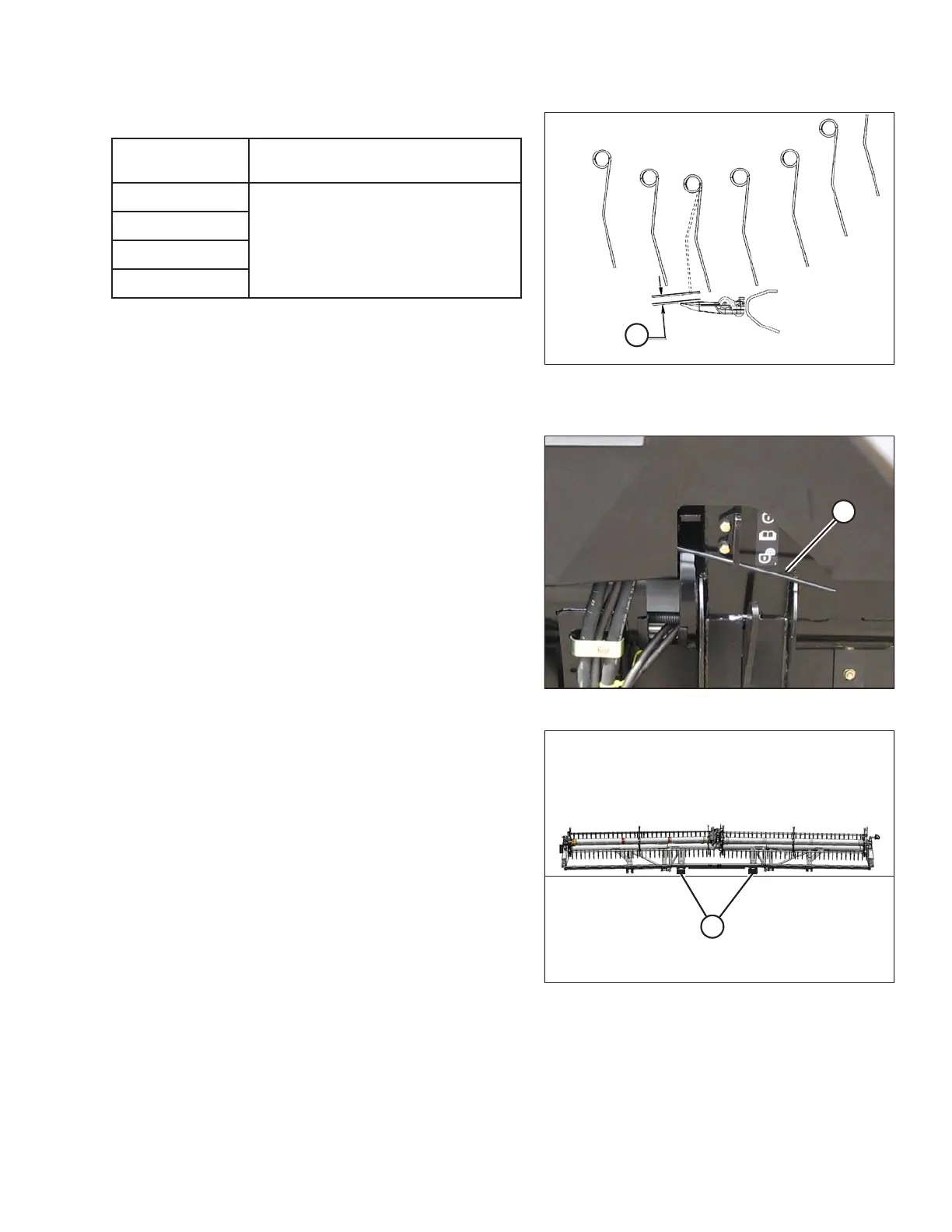

Figure 5.219: Finger Clearance
Table 5.4 Finger to Guard/Cutterbar Clearance
Header Width
(X) 3 mm (+/- 1/8 in. ) at Reel Ends
and Flex Locations
9.1 m (30 ft.)
20 mm
(3/4 in.)
10.7 m (35 ft.)
12.2 m (40 ft.)
13.7 m (45 ft.)
1. Park the header on level ground.
1008763
A
Figure 5.220: Wing Lock in UNLOCK Position
2. Move spring handles (A) down to (UNLOCK) position.
1020913
A
Figure 5.221: FlexDraper
®®
Block Locations
3. Raise header and place two 150 mm (6 in.) blocks (A)
under the cutterbar, just inboard of the wing flex points.
4. Lower header fully, allowing it to flex into a full
frown mode.
