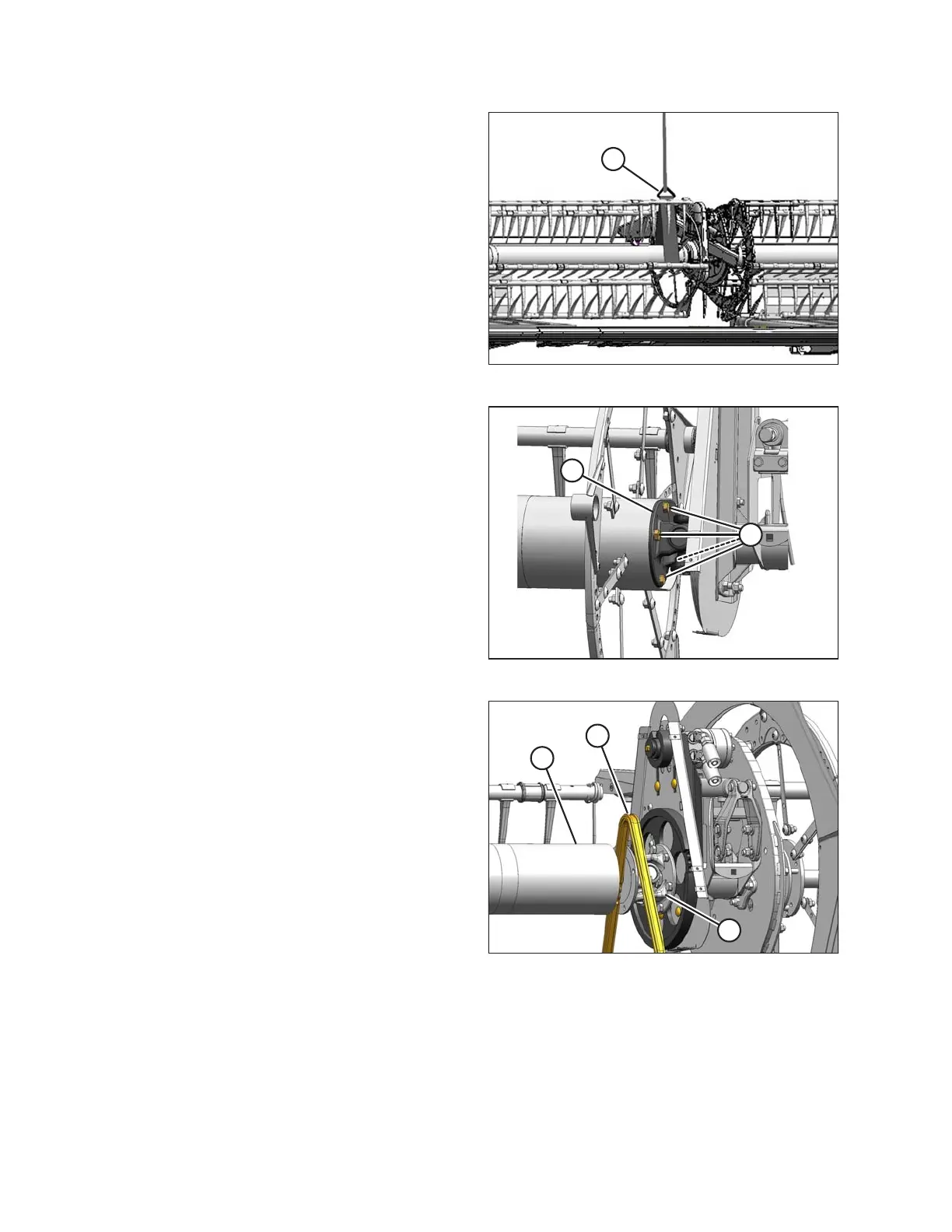

Figure 5.296: Supporting Reel
4. Support the inboard end of the right reel with a front end
loader and nylon slings (A) (or equivalent lifting device).
IMPORTANT:
Avoid damaging or denting the center tube by
supporting the reel as close to the end disc as possible.
Figure 5.297: U-Joint
5. Remove the four bolts (A) securing the reel tube to the
U-joint flange (B).
Figure 5.298: Replacing Chain
6. Move the right reel sideways to separate the reel
tube (A) from the U-joint (B).
7. Remove the drive chain (C).
8. Route the new chain (C) over the U-joint (B) and
position onto the sprockets.
