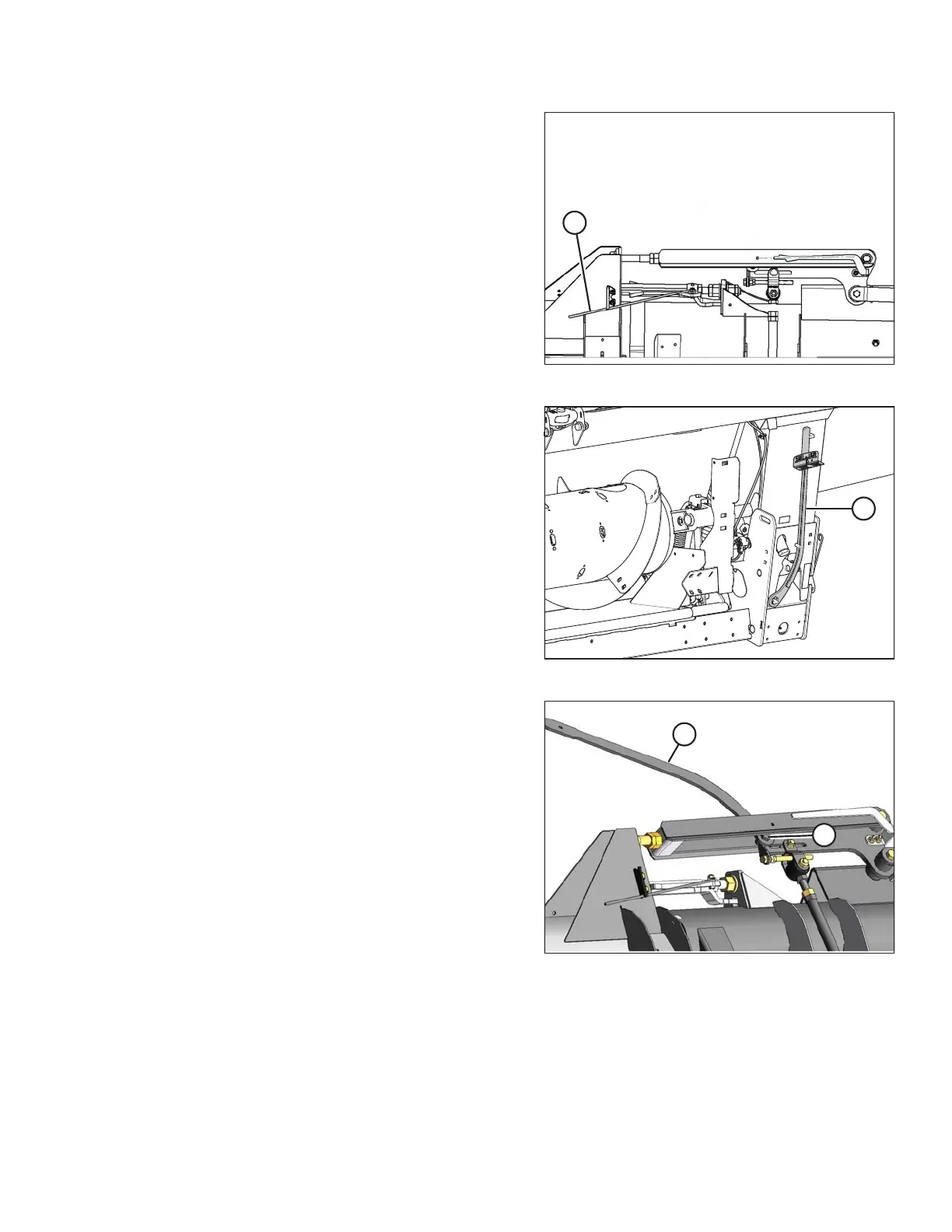

Figure 3.58: Wing Lock in UNLOCK Position
8. Unlock the wings by moving spring handles (A) to lower
(UNLOCK) position.
NOTE:
If lock link does not engage lower slot, move wing with
the torque wrench until lock link moves into slot.
Figure 3.59: Torque Wrench
9. Retrieve wrench (A) from float module right leg.
Figure 3.60: Balance Linkage
10. Place torque wrench (A) onto bolt (B).
OPERATION
