DRIVING ENVIRONMENT
OVERVIEW OF INSTRUMENTS
6

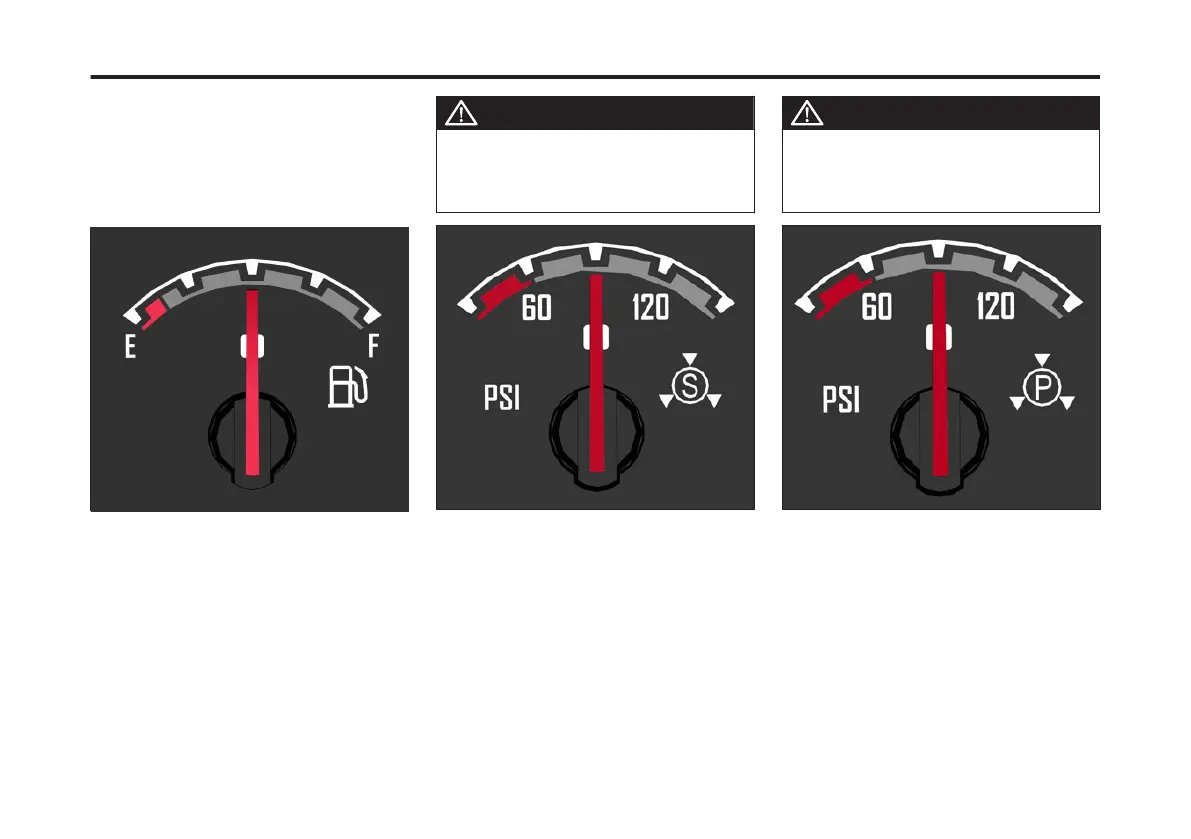

Fuel Gauge
Indicates fuel level. The fuel gauge is
connected to a fuel sensor unit in the
fuel tank. There is only one sensor
even if the vehicle is equipped with
dual tanks.
7
Secondary Brake Air Pressure
Gauge
The secondary brake air pressure
gauge is connected to the front
circuit tank via sensors mounted on
the passthrough wall. The front and
rear air gauges should register equal
air pressure. By observing the gauge
pointers, the operator can detect a
pressure drop if an air leak develops
and can readily identify the circuit
affected.
DANGER
Failure to observe these precautions can
result in the loss of braking performance.
This can lead to a vehicle accident, which
can result in personal injury or death.
8
Primary Brake Air Pressure
Gauge
The primary brake air gauge is
connected to the rear circuit tank via
sensors mounted on the
passthrough wall. The front and rear
air gauges should register equal air
pressure. By observing the gauge
pointers, the operator can detect a
pressure drop if an air leak develops
and can readily identify the circuit
affected.
DANGER
Failure to observe these precautions can
result in the loss of braking performance.
This can lead to a vehicle accident, which
can result in personal injury or death.
