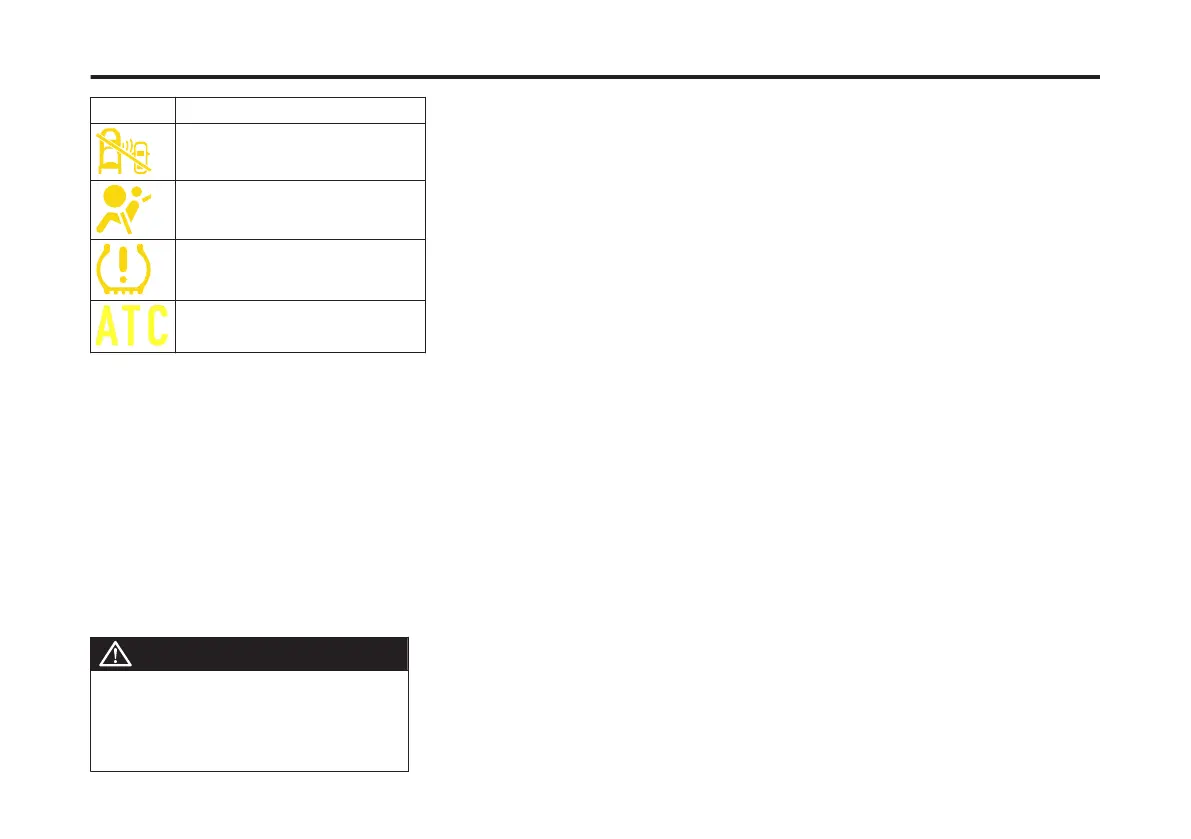

OVERVIEW OF INSTRUMENTS
Symbol
Meaning
Lane Changing System (LCS)
Indicator
Airbag Indicator
Tire pressure Monitoring System
(TPMS) Indicator
Automatic Traction Control (ATC)
1
Malfunction Indicator Lamp
Malfunction Indicator Lamp indicates
government Regulation On Board
Diagnostics (OBD) faults
2
Hill Assist Indicator
Indicates hill assist is active.
3
Stop Tell-Tale
Illuminates when conditions require
the driver to stop the vehicle. This
usually occurs when vehicle
conditions fall below designated
standards for operation.
DANGER
Failure to take necessary action when the
STOP tell-tale is on can ultimately result in
automatic engine shutdown and loss of
power steering assist. Vehicle crash can
occur, resulting in personal injury or death.
4
Interaxle Lock
Illuminates when interaxle lock is
engaged.
5
Differential Lock
Illuminates when differential lock is
engaged.
6
Turn Signal Indicator
Flashes when turn signals are active.
7
Parking Brake Engaged
Indicates parking brake is engaged
8
Safety Belt Reminder
Indicates safety belt needs to be
fastened.
9
Aftertreatment DPF
Regeneration
Indicates aftertreatments DPF
regeneration is required.
10
High Exhaust System
Temperature (HEST)
The High Exhaust System
Temperature (HEST) Icon comes on
when the exhaust temperature
becomes elevated. The Icon also
comes on during the REGEN.
11
ABS Trailer Malfunction
Indicates a problem being reported
by the Trailer ABS system.
12
ABS Tractor Malfunction
Indicates a problem being reported
by the Tractor ABS System
13
Preheating Active
Indicates preheating is active.
14
High Beam
Illuminates when high beam lights
are engaged.
15
Aftertreatment DEF Tank Low
Illuminates when the uid level is
low. It also Flashes when the level
becomes critically low.
16
Check Indicator
Illuminates when there is an engine
or aftertreatment system issue or
other electrical malfunction.
17
Light Indicator
Illuminates when there is a lighting
system error.
18
Traction Control System (TCS)
Indicator
Indicates the Traction Control
System (TCS) is active or disabled.
19
Lane Departure Warning
System (LDWS) Indicator
Indicates the Lane Departure
Warning System (LDWS) is off.
