FRONT WINDOW OPERATION
Closing Window
Rotate window handle DOWN to position shown in
Figure 3-3
, View A.
Opening Window For Ventilation
Rotate window handle UP to position shown in Figure 3-3,
View B. Window can be swung open approximately 3 in
(76 mm) for ventilation.
Opening Window For Emergency Exit
Pull out both quick-release pins at handle. Remove both
knobs at top of window (Figure 3-3
, View C). Push window
out to allow emergency exit from cab.
OPERATING CONTROLS
General
The purpose of the following instructions is to familiarize
qualified operators with the location and function of the
operating controls for this crane. This section also contains
safety information and a description of operation for each
crane function.
Depending on the options your crane is equipped with, some
controls identified in this section will not apply.
WARNING
To prevent death or serious personal injury:
• Read and thoroughly understand instructions in this
section, in Section 2, and in Capacity Chart Manual.
• Contact your Manitowoc dealer for assistance if you
do not clearly understand any operating procedure.

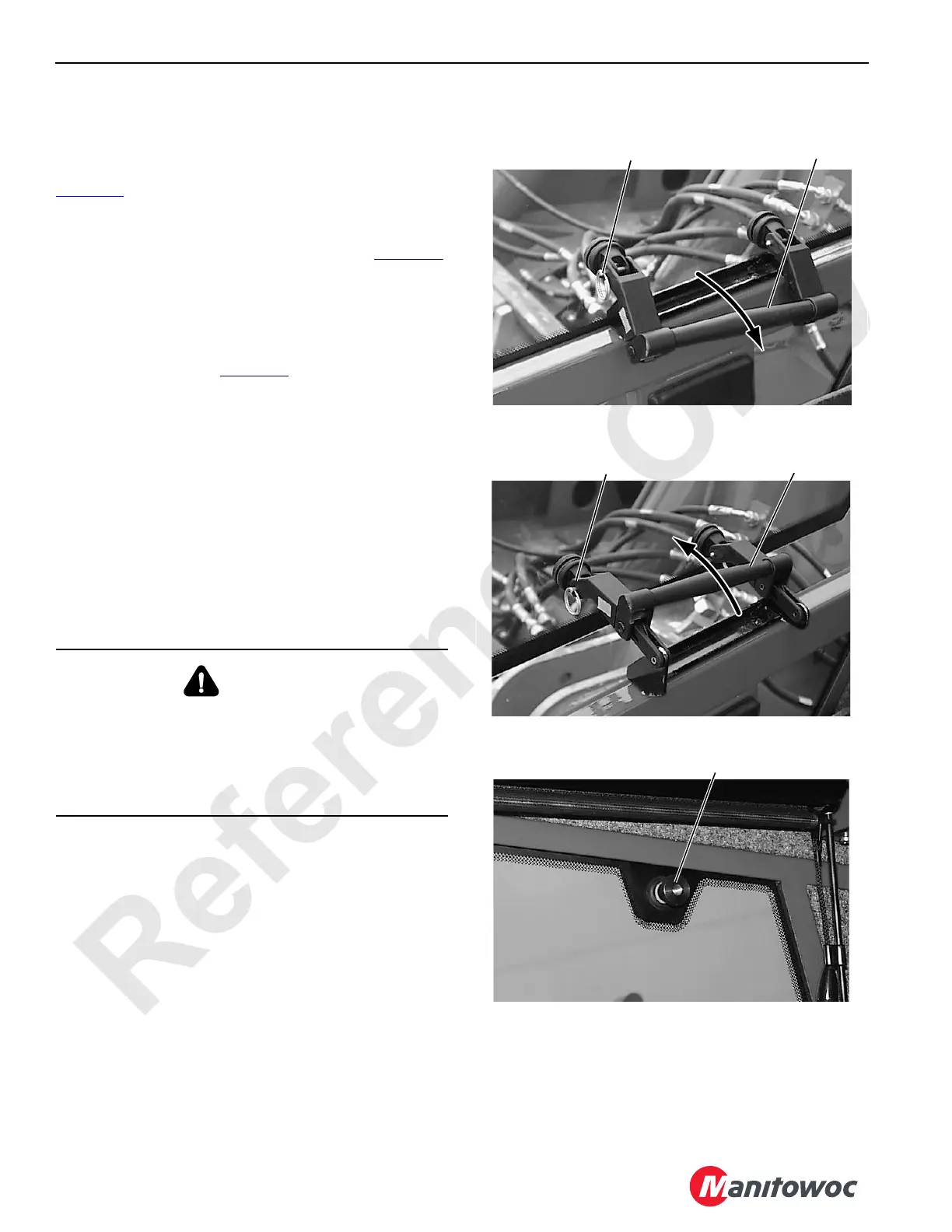

FIGURE 3-3
View A
View B
Handle
View C
(2 places at top of window)
Quick-Release Pin
(both ends of handle)
Knob
Handle
Quick-Release Pin
(both ends of handle)
P1752
P1750
P1751
