Manitowoc Published 05-09-17, Control # 011-29 3-11
16000 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3
CAB DOOR DAMPER ADJUSTMENT
See Figure 3-4 for the following procedure.
The cab door damper prevents the cab door from slamming
open or closed. This is especially critical when the cab is
tilted at an angle other than horizontal.
Closing Cab Door
To properly close the cab door:
1. Slide cab door to closed position, but don’t latch it. This
releases hydraulic pressure in damper.
2. Open cab door approximately 8.66 in (22 cm).
3. Slide cab door fully closed and latch.
Damper Adjustment
1. Adjust cab tilt to level position.
2. Remove pin.
3. Swing damper with rod end away from cab door.
4. Pull piston rod out to fully extended position.
a. While pulling on rod, turn it clockwise (looking at
rod end) approximately four full turns until it stops.
This is the maximum damper pressure setting.
b. While pulling on rod, turn it counterclockwise
(looking at rod end) approximately four full turns
from maximum to minimum damper pressure
setting. This is recommended pressure setting.
5. Reconnect rod end to cab door.
6. It may take several trial and error adjustments to obtain
desired damping.

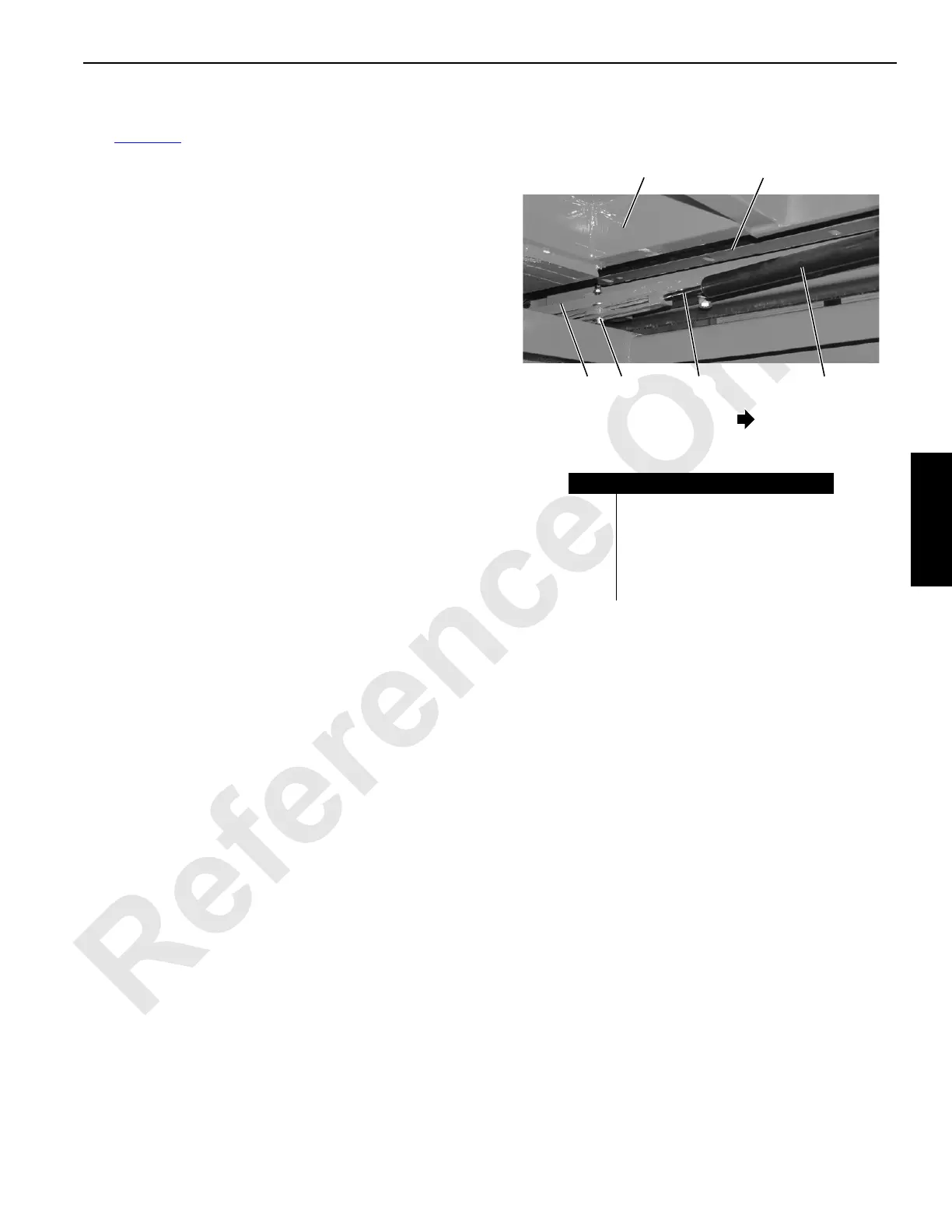

P2289
Item Description
1 Damper
2 Piston Rod
3 Pin with Washers and Cotter Pins
4 Rod End
5Bottom of Cab
6 Bottom of Sliding Door
FIGURE 3-4
3
4
5
2
1
6
FRONT
of Cab
