OPERATING CONTROLS AND PROCEDURES 16000 OPERATOR MANUAL
3-14
Published 05-09-17, Control # 011-29
B – Accessory Controls
See Figure 3-6 for accessory controls.
B1. Crane Work or Drum Lights Switch
This switch controls four optional lights mounted on crane
cab, rotating bed, and boom butt.
Press TOP of rocker to TURN ON lights.
Press BOTTOM of rocker to TURN OFF lights.
B2. Overhead Windshield Wiper Switch
B3. Front Windshield Wiper-Washer Switch
PAST PRODUCTION:
• Counterclockwise — OFF.
• Clockwise — INTERMITTENT depending how far knob
is turned:
• Clockwise (1st detent) — LOW speed.
• Clockwise (2nd detent) — HIGH speed.
• PRESS front windshield wiper switch to SPRAY washer
fluid onto front window.
CURRENT PRODUCTION:
• Toggle fully down — OFF.
• Toggle up — INTERMITTENT depending how far toggle
is moved:
• Toggle fully up — HIGH speed.
• PRESS top end of front windshield wiper switch to
SPRAY washer fluid onto front window.

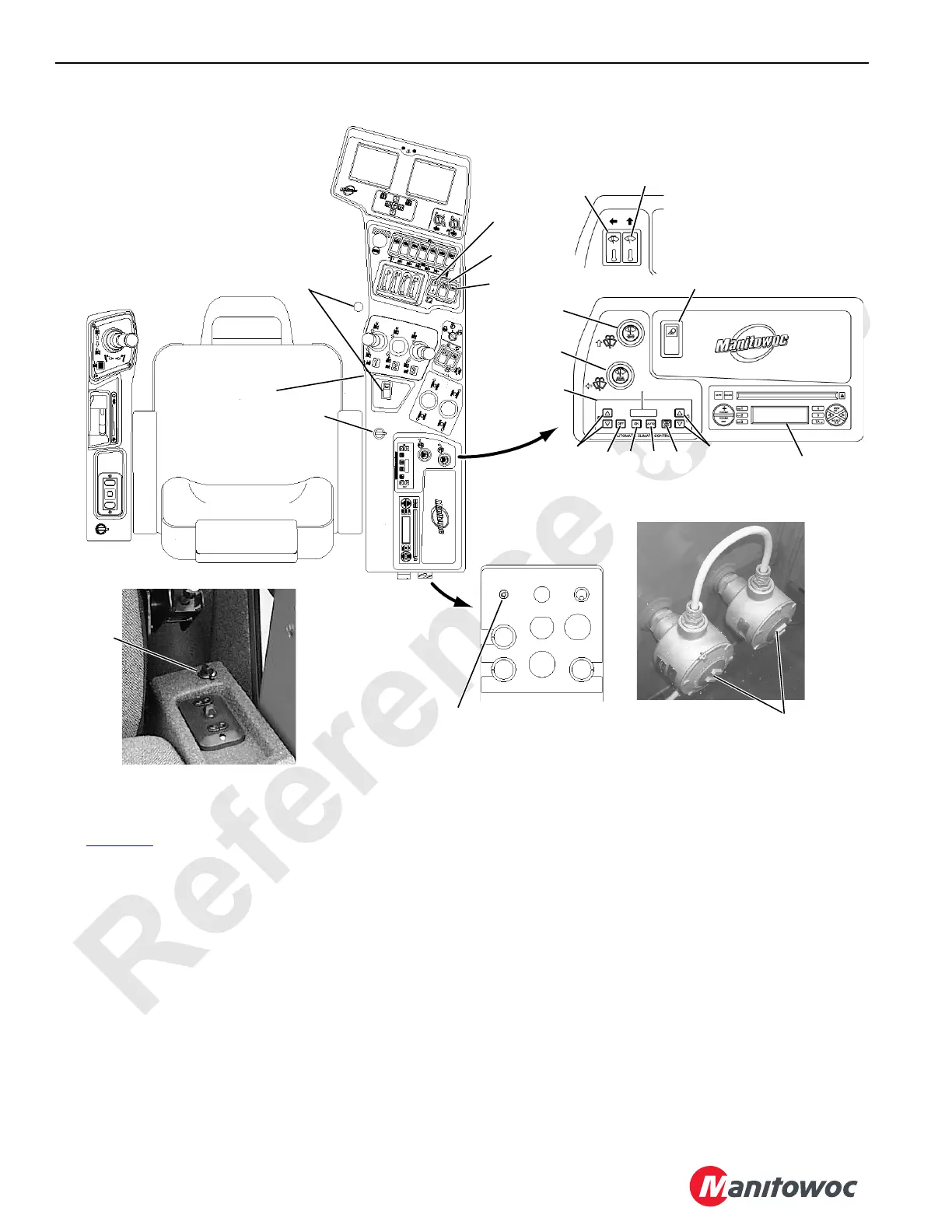

FIGURE 3-6
Left Side of Hydraulic Tank
Thermostat Knob
Under Covers
A C D
F
G and H
B5
B12
B11
B
B7
B8
B3
B4
B6
Electrical
Tes t P or t
(Cab Floor)
E
B9
B10
Laptop Computer Connector
(for loading software and
programming functions)
P2233
A1297
P1708a
B1
B2
OR
B3
B2
