OPERATING CONTROLS AND PROCEDURES 16000 OPERATOR MANUAL
3-16
Published 05-09-17, Control # 011-29
See Figure 3-7 for the following accessory controls.
B13. Tinted Visor and Shade
A visor is provided for the front window and shades are
provided for the roof and side windows. Position the visor
and shades as desired to shade sunlight.
B14. Air Ventilation Knob
Pull knob OUT to circulate outside air in the cab.
Push knob IN to close outside air and circulate the existing
air in the cab.

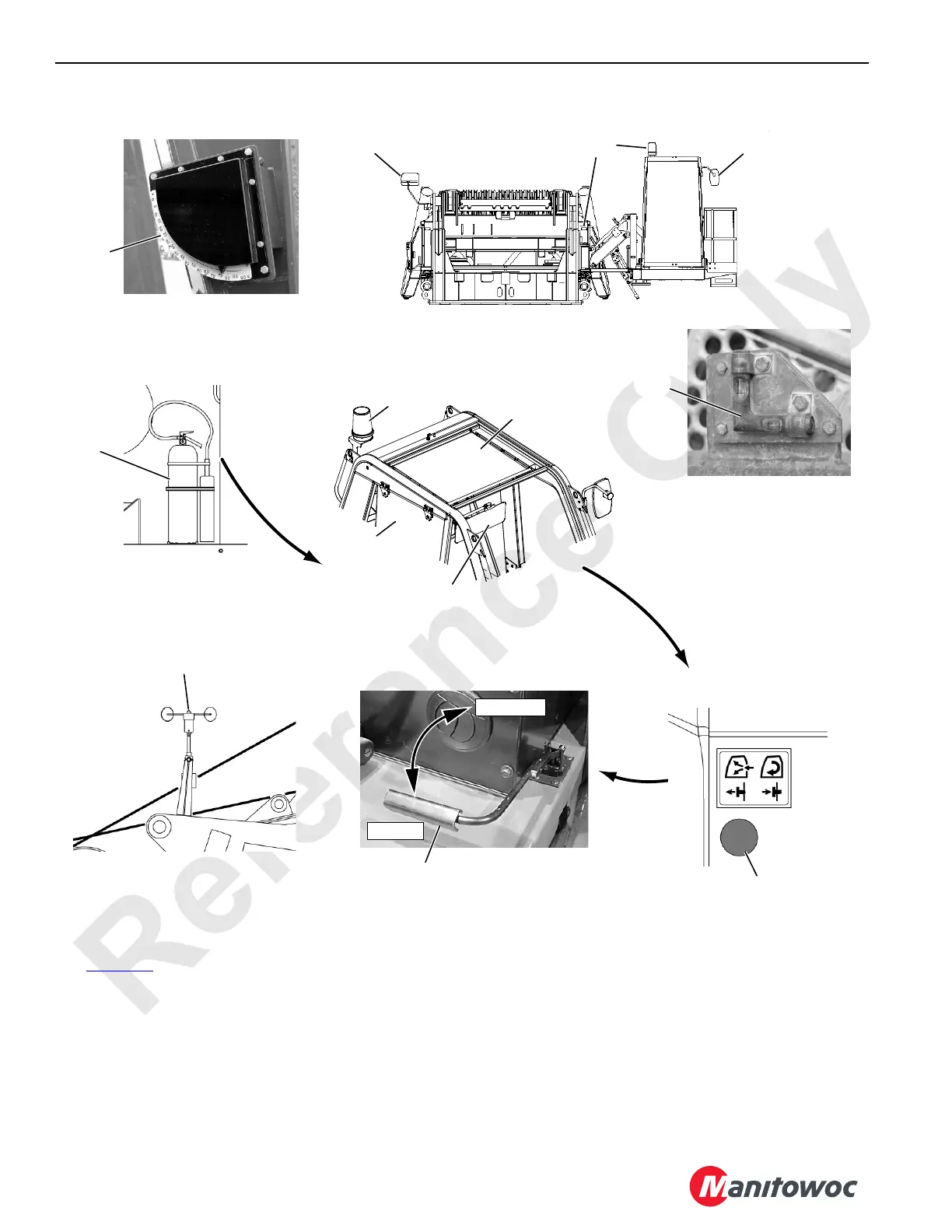

FIGURE 3-7
Left Side of Boom
C1
B13
C2
B13
C3
B13
Typical at Boom
and Jib Points
Behind Operator’s Seat
B14
C5
P2101
A09311
A00984
P2229
B16
Left Side of Cab Floor
P2102
C4
On Cab Support
B15
Inside Cab at Rear
C3
A17492
C2
To Next Page
